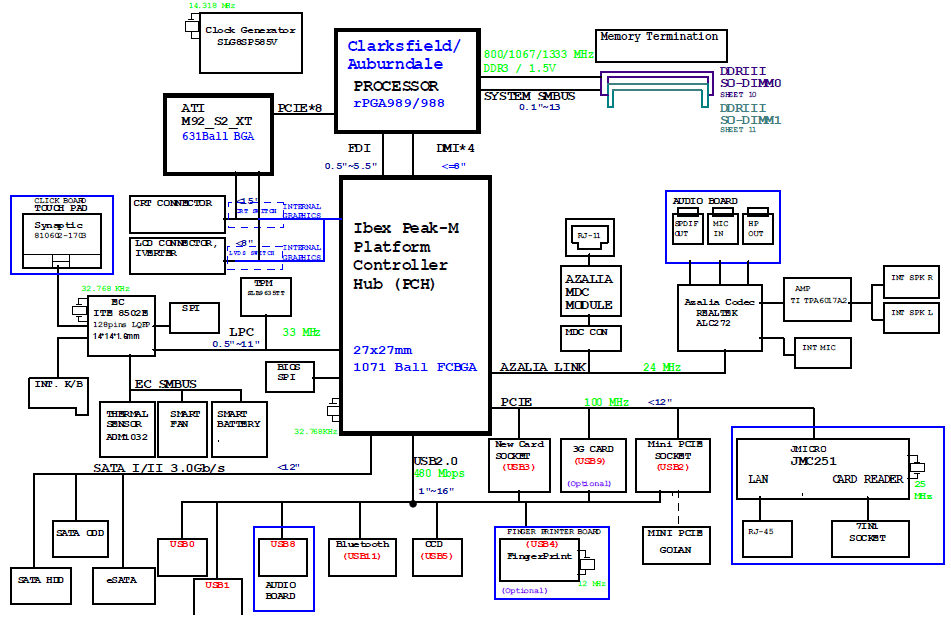

Clevo M-series M7x1CUH, Laptop Motherboard Schematic diagram
Click on picture to enlarge |
Included : Service Manual Major components: CPU : Intel Clarksfield / Auburndale Chipset :Ibex Peak-M Video: UMA or ATI M92-S2 XT KBC(Embeded Controller),SIO : ITE 8502E File type : PDF Language : English |
---|
