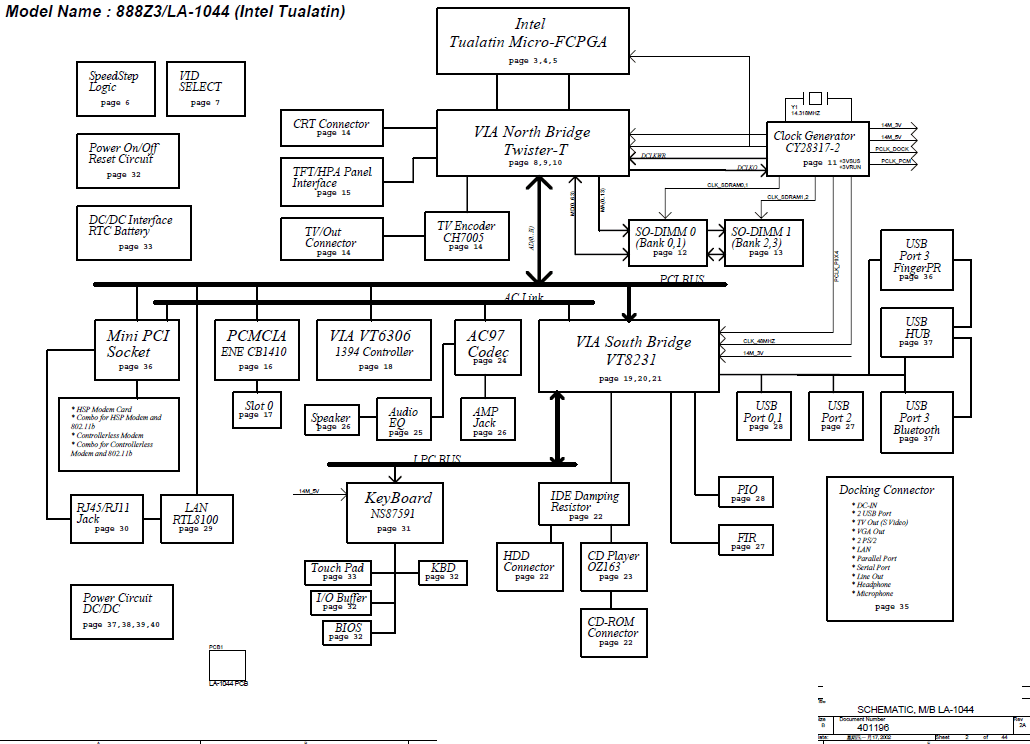

Compal OEM LA-1044 APW00 / 888Z3, Laptop Motherboard Schematic diagram

Click on picture to enlarge	Price: US $7.50 Project name < LA-1044 APW00 / 888Z3 > revision(s): 2.0 Intel (Tualatin) with VIA(VT8606-TwisterT + VT8231) File type : PDF Language : English

Click on picture to enlarge

Price: US $7.50

Project name

< LA-1044 APW00 / 888Z3 >

revision(s): 2.0

Intel (Tualatin) with VIA(VT8606-TwisterT + VT8231)

File type : PDF
Language : English

Updated: 15-04-2010
