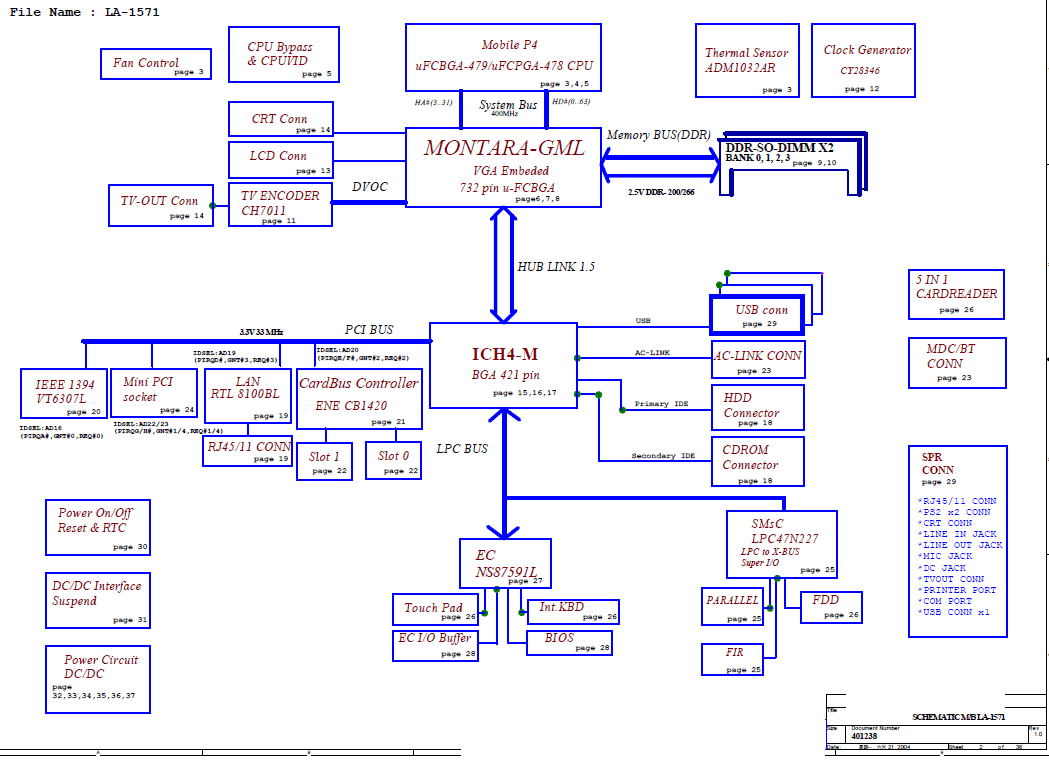

Compal OEM LA-1571, Laptop Motherboard Schematic diagram

Click on picture to enlarge	Price: US $9.75 Project name < LA-1571 > revision(s): 1.0 Mobile P4 uFCBGA/uFCPGA with INTEL MONTARA-GML/ICH4-M core logic File type : PDF Language : English

Click on picture to enlarge

Price: US $9.75

Project name

< LA-1571 >

revision(s): 1.0

Mobile P4 uFCBGA/uFCPGA with INTEL
MONTARA-GML/ICH4-M core logic

File type : PDF
Language : English

Updated: 14-04-2010
