Compal OEM LA-2951P HAT00, Laptop Motherboard Schematic diagram

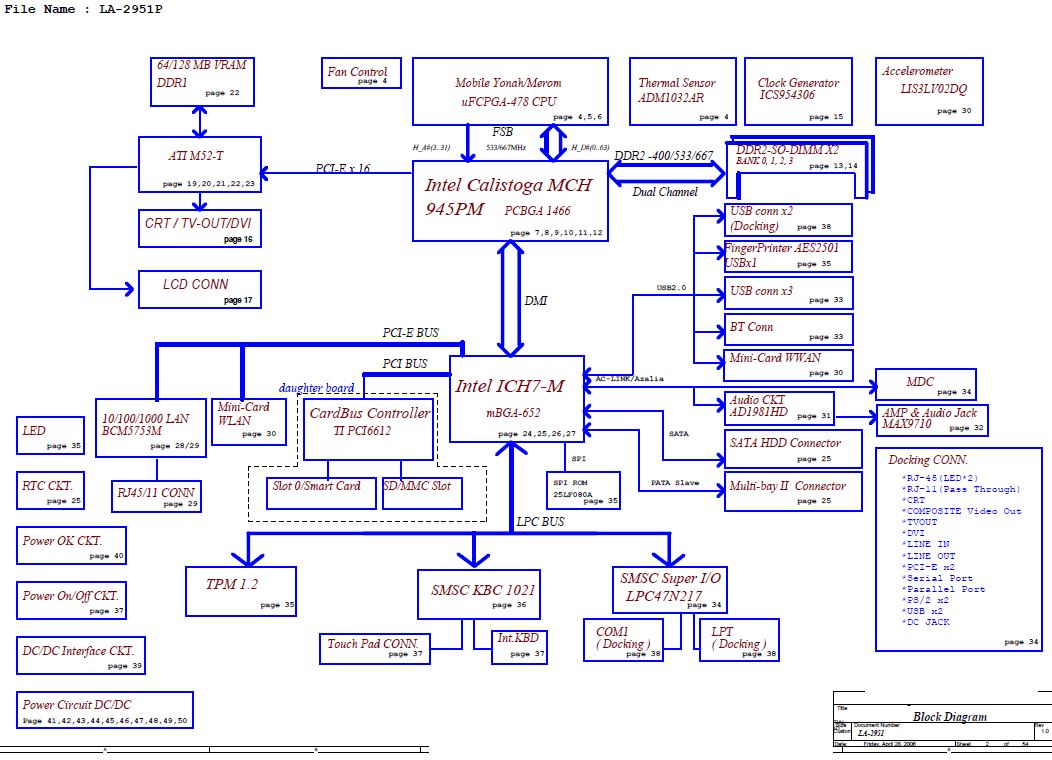

Click on picture to enlarge	Price: US $17.25 Project name < LA-2951P HAT00 > revision(s): 0.3 , 1.0 Mobile Yonah uFCPGA with Intel Calistoga_P/GM+ATI M52-T + ICH7-M core logic File type : PDF Language : English

Click on picture to enlarge

Price: US $17.25

Project name

< LA-2951P HAT00 >

revision(s): 0.3 , 1.0

Mobile Yonah uFCPGA with Intel Calistoga_P/GM+ATI M52-T + ICH7-M core logic

File type : PDF
Language : English

Updated: 11-04-2010
