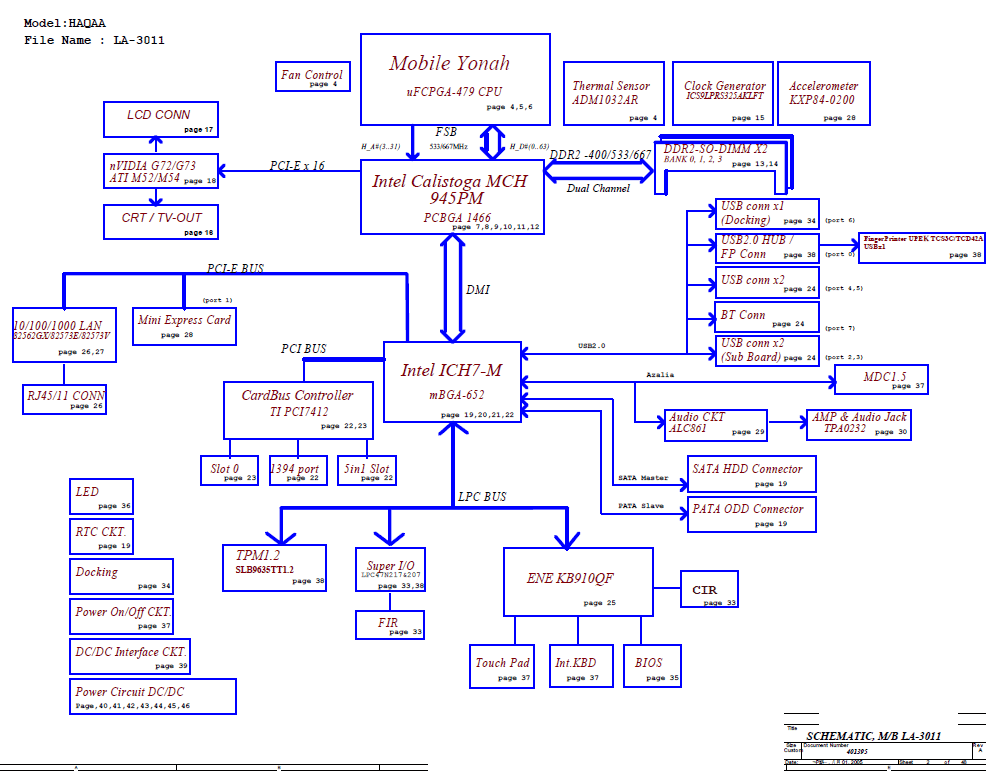

Compal OEM LA-3011P HAQAA, Laptop Motherboard Schematic diagram

Click on picture to enlarge	Price: US $15.00 Project name < LA-3011P HAQAA > revision(s): 0.1 , 0.2 , 0.3 Mobile Yonah uFCPGA with Intel Calistoga_PM+ICH7-M core logic File type : PDF Language : English

Click on picture to enlarge

Price: US $15.00

Project name

< LA-3011P HAQAA >

revision(s): 0.1 , 0.2 , 0.3

Mobile Yonah uFCPGA with Intel Calistoga_PM+ICH7-M core logic

File type : PDF
Language : English

Updated: 12-04-2010
