Compal OEM LA-3031P HAU20, Laptop Motherboard Schematic diagram

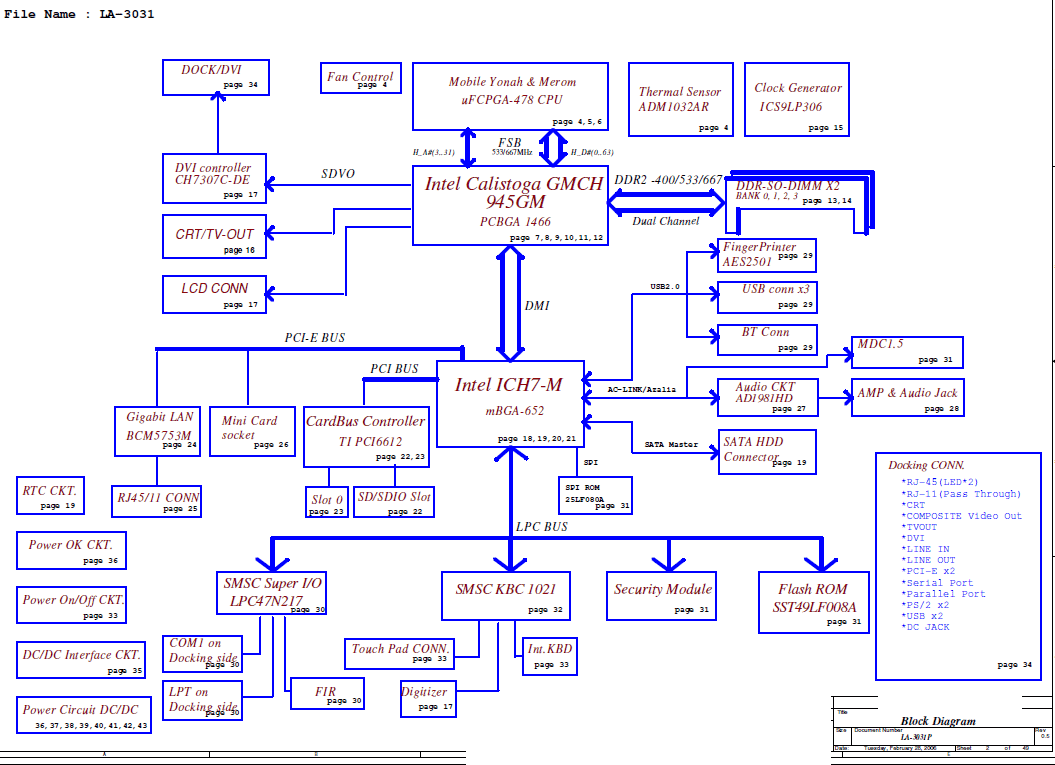

Click on picture to enlarge	Price: US $17.25 Project name < LA-3031P HAU20 > revision(s): 0.5 , 1.0 Mobile Yonah uFCPGA with Intel Calistoga_GM+ICH7-M core logic File type : PDF Language : English

Click on picture to enlarge

Price: US $17.25

Project name

< LA-3031P HAU20 >

revision(s): 0.5 , 1.0

Mobile Yonah uFCPGA with Intel Calistoga_GM+ICH7-M core logic

File type : PDF
Language : English

Updated: 11-04-2010
