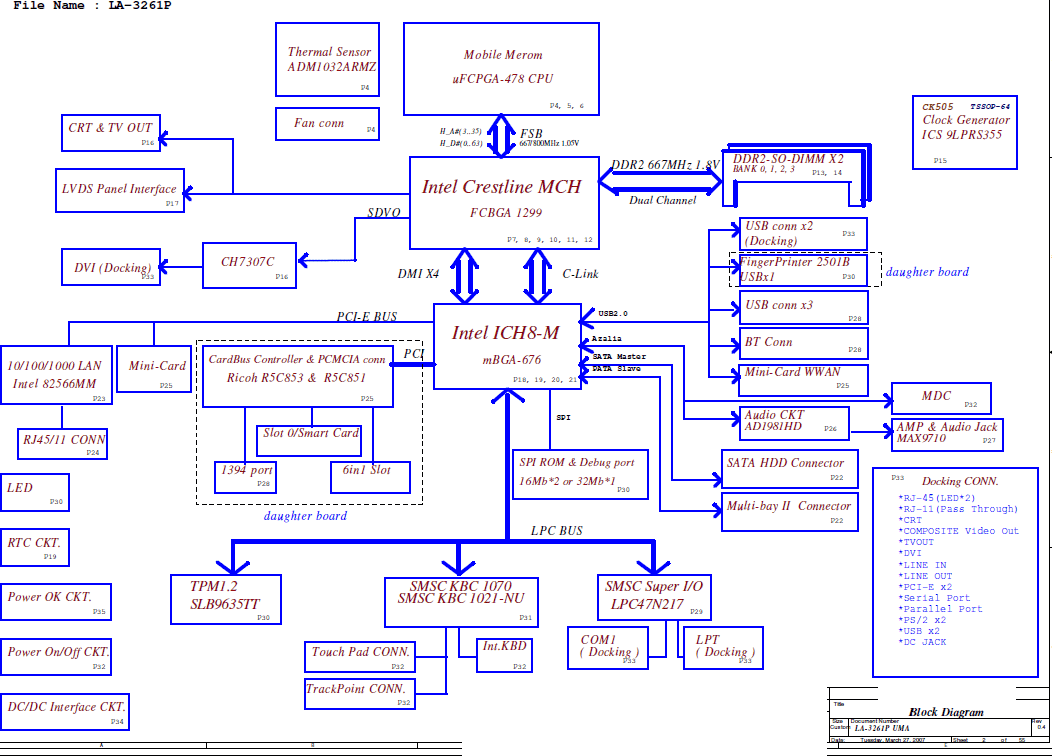

Compal OEM LA-3261P IBT00, Laptop Motherboard Schematic diagram

Click on picture to enlarge	Price: US $18.75 Project name < LA-3261P IBT00 > revision(s): 0.6 , 1.A Mobile Merom uFCPGA with Intel Crestline_PM+ICH8-M core logic File type : PDF Language : English

Click on picture to enlarge

Price: US $18.75

Project name

< LA-3261P IBT00 >

revision(s): 0.6 , 1.A

Mobile Merom uFCPGA with Intel Crestline_PM+ICH8-M core logic

File type : PDF
Language : English

Updated: 11-04-2010
