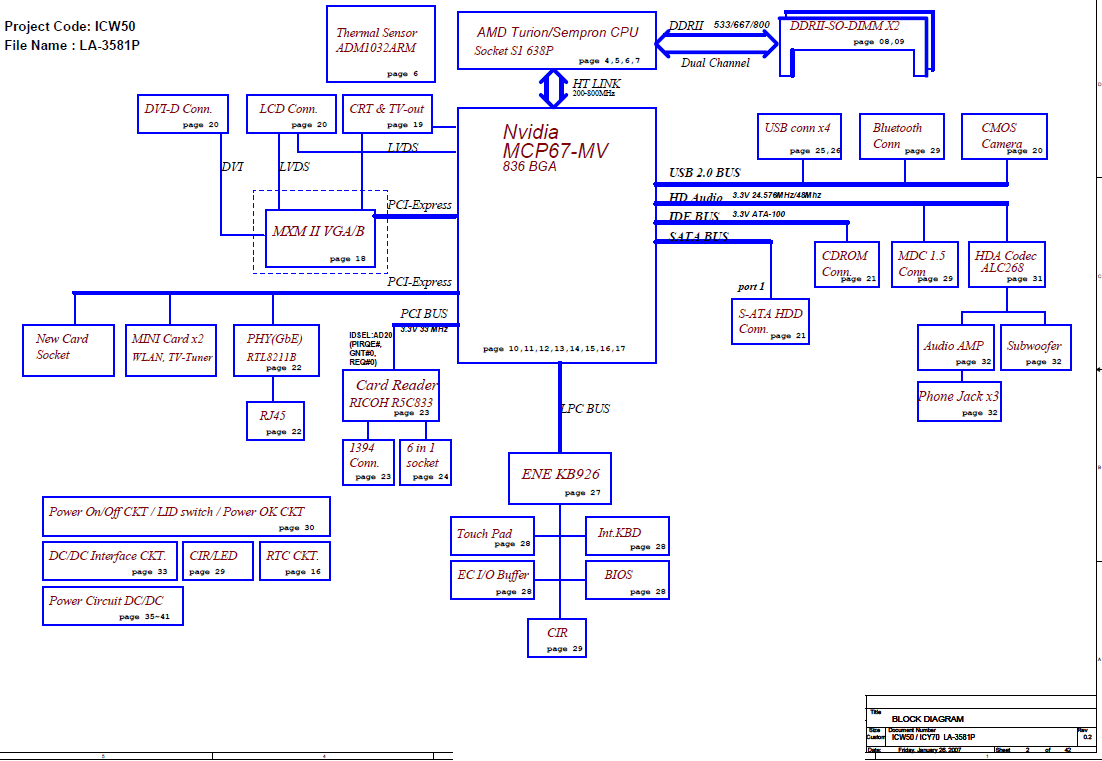

Compal OEM LA-3581P ICW50 / ICY70, Laptop Motherboard Schematic diagram

Click on picture to enlarge	Price: US $15.00 Project name < LA-3581P ICW50 / ICY70 > revision(s): 0.3 , 1.0 AMD Turion/Sempron + Nvidia MCP67-MV Total Pages : 42 File type : PDF Language : English

Click on picture to enlarge

Price: US $15.00

Project name

< LA-3581P ICW50 / ICY70 >

revision(s): 0.3 , 1.0

AMD Turion/Sempron + Nvidia MCP67-MV

Total Pages : 42
File type : PDF
Language : English

Updated: 10-04-2010
