Compal OEM LA-3801P JBL00, Laptop Motherboard Schematic diagram

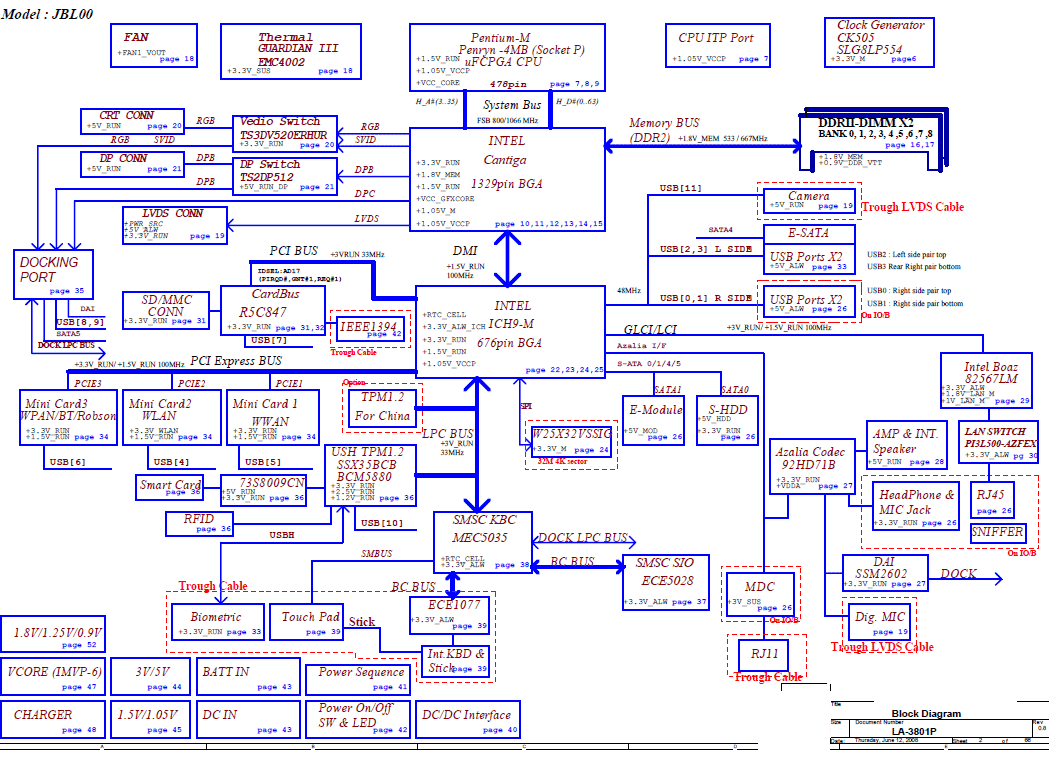

Click on picture to enlarge	Price: US $17.25 Project name < LA-3801P JBL00 > revision(s): 1.0(A00) Mobile Penryn Intel Cantiga GM + ICH9M Total Pages : 66 File type : PDF Language : English

Click on picture to enlarge

Price: US $17.25

Project name

< LA-3801P JBL00 >

revision(s): 1.0(A00)

Mobile Penryn Intel Cantiga GM + ICH9M

Total Pages : 66
File type : PDF
Language : English

Updated: 19-04-2010
