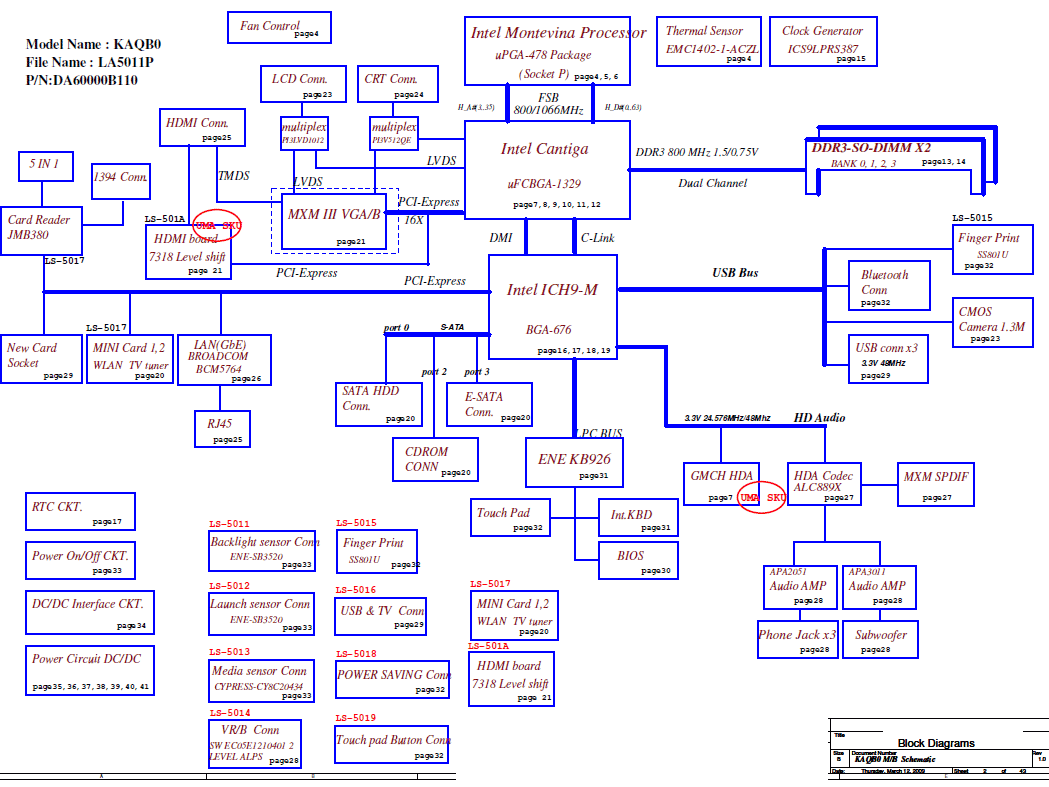

Compal OEM LA-5011P KAQB0, Laptop Motherboard Schematic diagram

Click on picture to enlarge	Price: US $15.00 Project name LA-5011P KAQB0 revision(s): 0.1 , 1.0 Intel Penryn Processor with Cantiga + DDRIII + ICH9M Total Pages : 53 File type : PDF Language : English

Click on picture to enlarge

Price: US $15.00

Project name

LA-5011P KAQB0

revision(s): 0.1 , 1.0

Intel Penryn Processor with Cantiga + DDRIII + ICH9M

Total Pages : 53
File type : PDF
Language : English

Updated: 13-04-2010
