Quanta OEM ZCC (DA0ZCCMB8A0, DA0ZCCMB8B0, DA0ZCCMB8C0), Motherboard Schematic Diagram + BoardView file and BoardView software

Click on picture to enlarge	Price: US $20.00 Known Motherboard p/n: DA0ZCCMB8A0, DA0ZCCMB8C0 Known I/O Board p/n: DA0ZCCTB8C0 What's included: — Schematic Diagrams for MB — BoardView file for MB + BoardView Software — Power Block Diagram — Power Sequence Timing Diagram Major components: CPU : Intel Jasper Lake + LPDDR4X GPU : UMA EC : NPCX797FC0BX File types: Schematic Diagram(s): PDF / Searchable BoardView file(s) : CAD / Searchable BIOS file : N/A Language : English

Click on picture to enlarge

Price: US $20.00

Known Motherboard p/n: DA0ZCCMB8A0, DA0ZCCMB8C0
Known I/O Board p/n: DA0ZCCTB8C0

What's included:

— Schematic Diagrams for MB

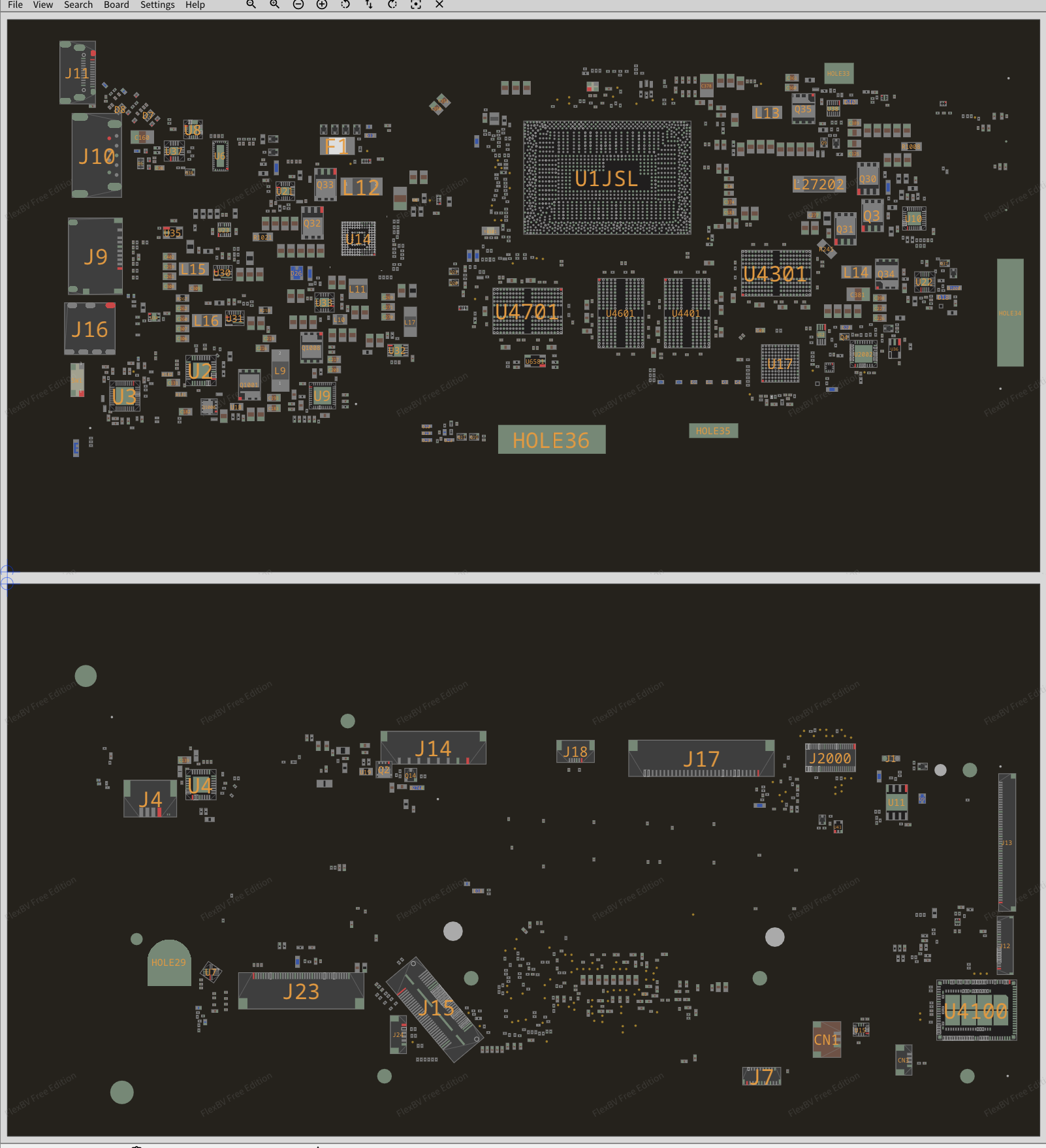

— BoardView file for MB + BoardView Software

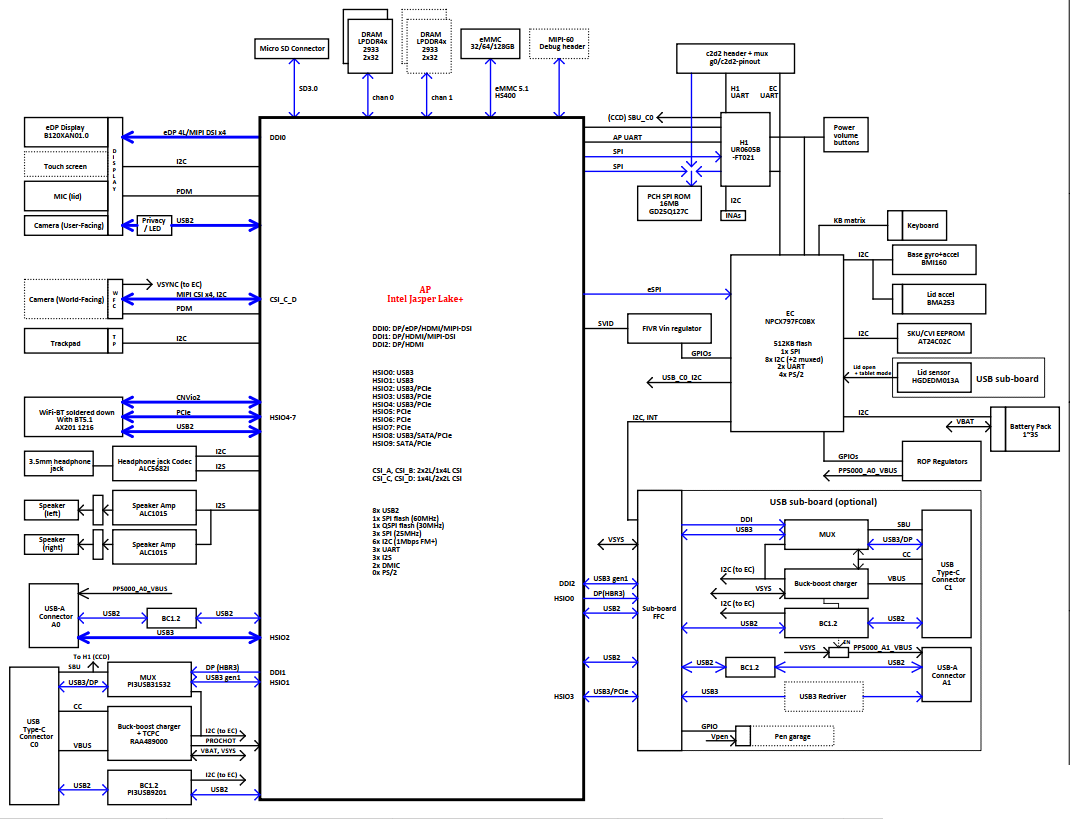

— Power Block Diagram
— Power Sequence Timing Diagram

Major components:

CPU : Intel Jasper Lake + LPDDR4X
GPU : UMA
EC : NPCX797FC0BX

File types:

Schematic Diagram(s): PDF / Searchable
BoardView file(s) : CAD / Searchable
BIOS file : N/A
Language : English

Updated: 23-08-2026
