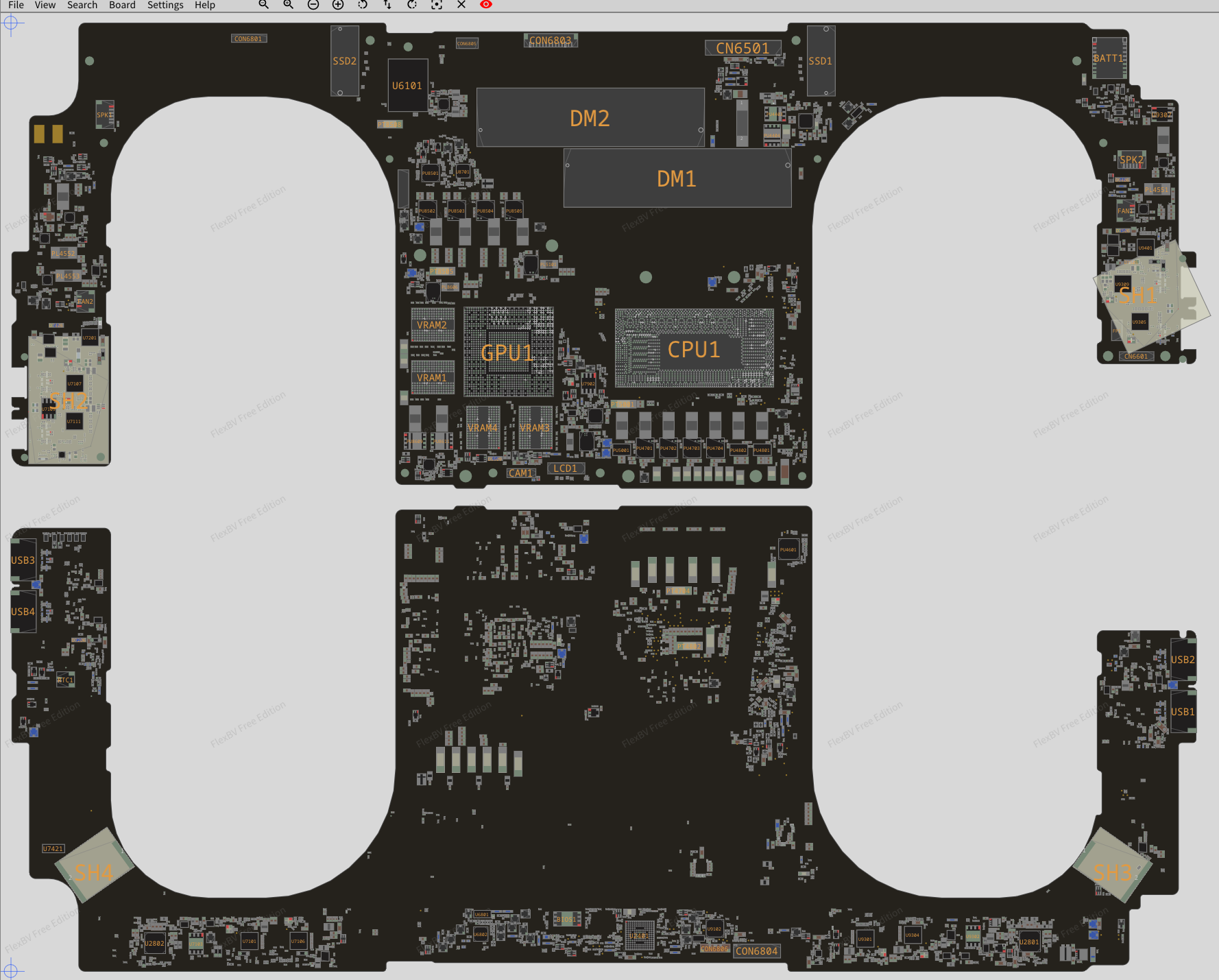

Dell XPS 17 XPS 17 9730 (MB# 223001-1), Motherboard Schematic Diagram + BoardView file and BoardView software
|
|

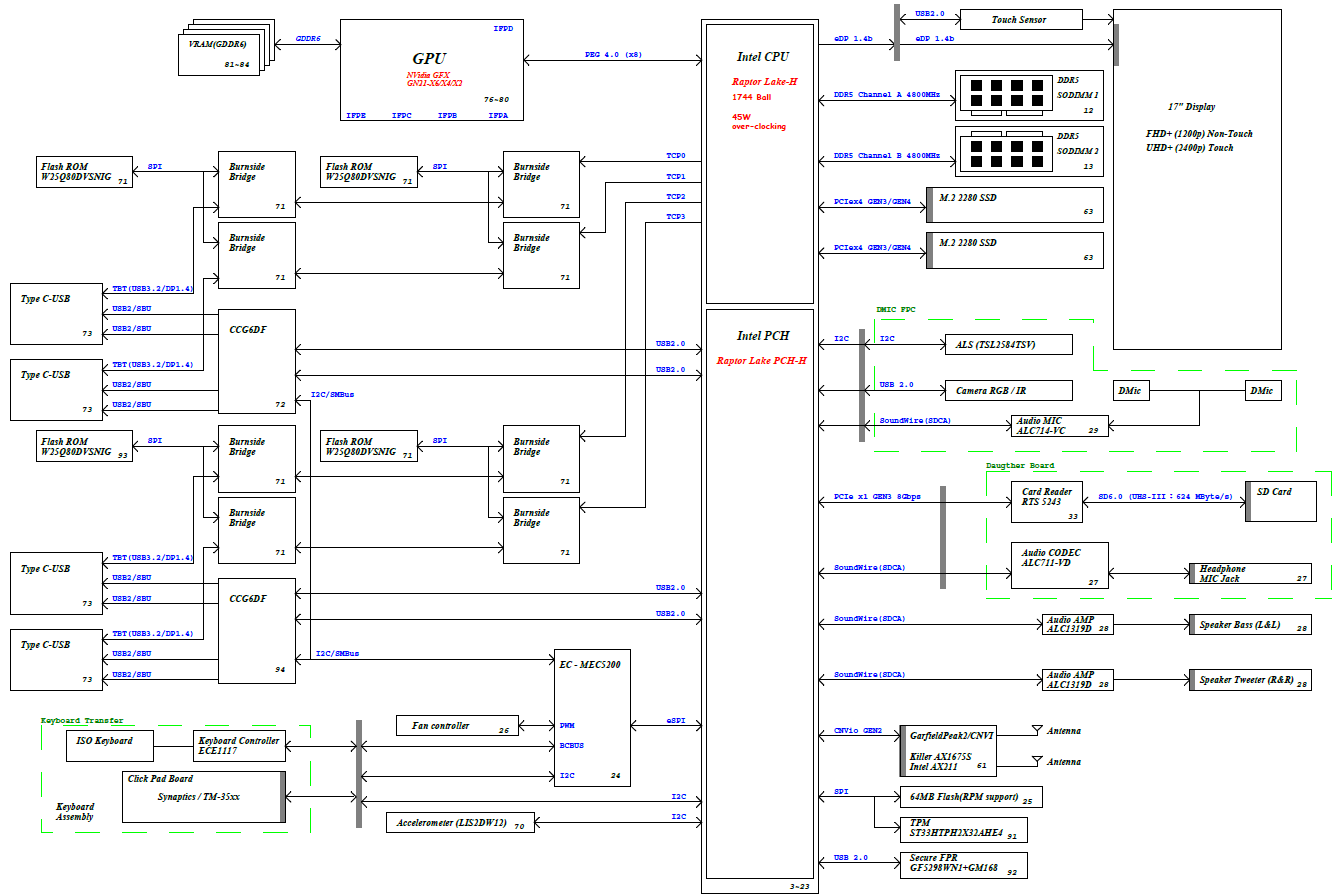

Price: US $20.00 - Schematic Diagram for MB - BoardView file and BoardView Software - POWER UP SEQUENCE - S5 to S0 [Non-Deep/Deep Sx Platform] - Type-C Adapter IN sequence 20V - Type-C Charger out sequence 5V - GPU POWER UP SEQUENCE - POWER UP SEQUENCE DIAGRAM (Step-by-Step / UMA_DIS) - POWER BLOCK DIAGRAM - Raptor Lake-H SMBus/SMLink Block Diagram - Raptor Lake-H I2C Block Diagram - KBC SMBus Block Diagram - Thermal Block Diagram - Audio Block Diagram - CLK Block Diagram Major components: CPU: Intel Raptor Lake-H // DDR5 GPU: GN21-X6/X4/X2 + GDDR6 EC/KBC : MEC5200 File type (Schematic): PDF File type (BoardView): CAD Language : English |
|---|
