Compal OEM LA-K441P GDA55 , Motherboard BoardView file and Schematic diagram

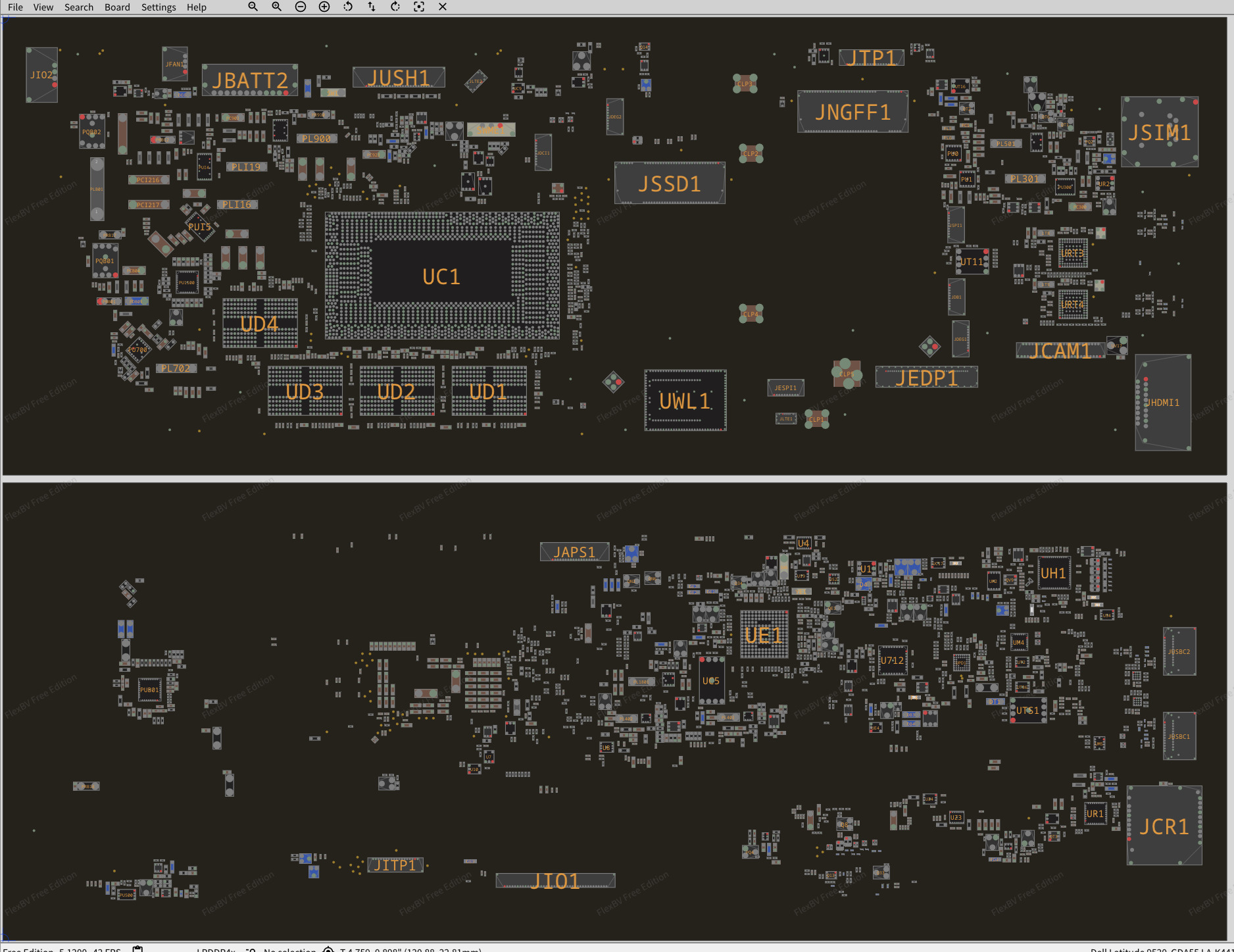

Click on picture to enlarge	Price: US $20.00 What's included: - Schematic Diagram - BoardView file and Viewer - Power MAP - Power Sequence - SMbus Block Diagram - AC_Power up Sequence - Power Block Diagram Major components: CPU Intel TIGERLAKE U + LPDDR4x GPU: UMA EC: MEC5200 File type (schematic): PDF File type (boardview): cad Language : English

Click on picture to enlarge

Price: US $20.00

What's included:

- Schematic Diagram
- BoardView file and Viewer
- Power MAP
- Power Sequence
- SMbus Block Diagram
- AC_Power up Sequence

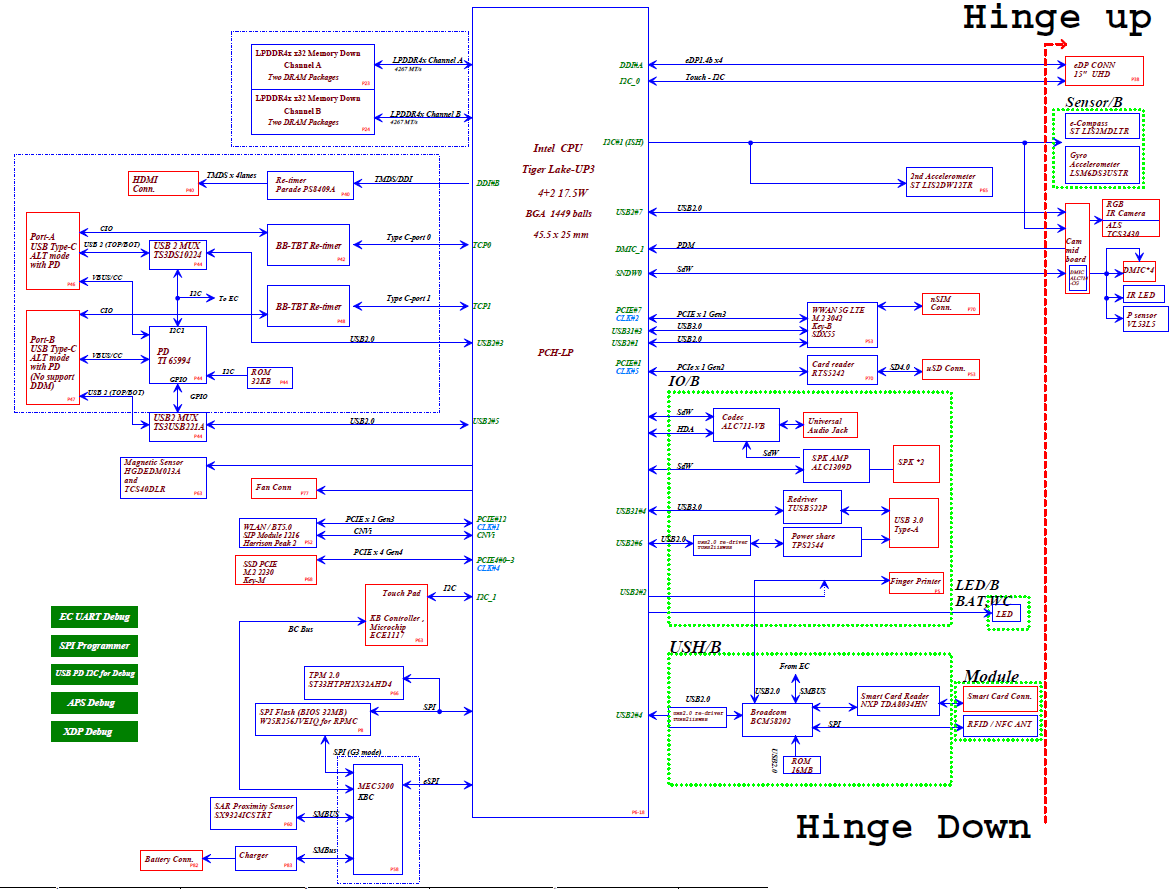

- Power Block Diagram

Major components:

CPU Intel TIGERLAKE U + LPDDR4x
GPU: UMA
EC: MEC5200

File type (schematic): PDF
File type (boardview): cad
Language : English

Updated: 11-03-2026
