Apple MacBook Pro 2021, M1 Pro - MacBookPro18,3 - A2442 - EMC 3650 , Logic Board / Motherboard BoardView file and Schematic diagram

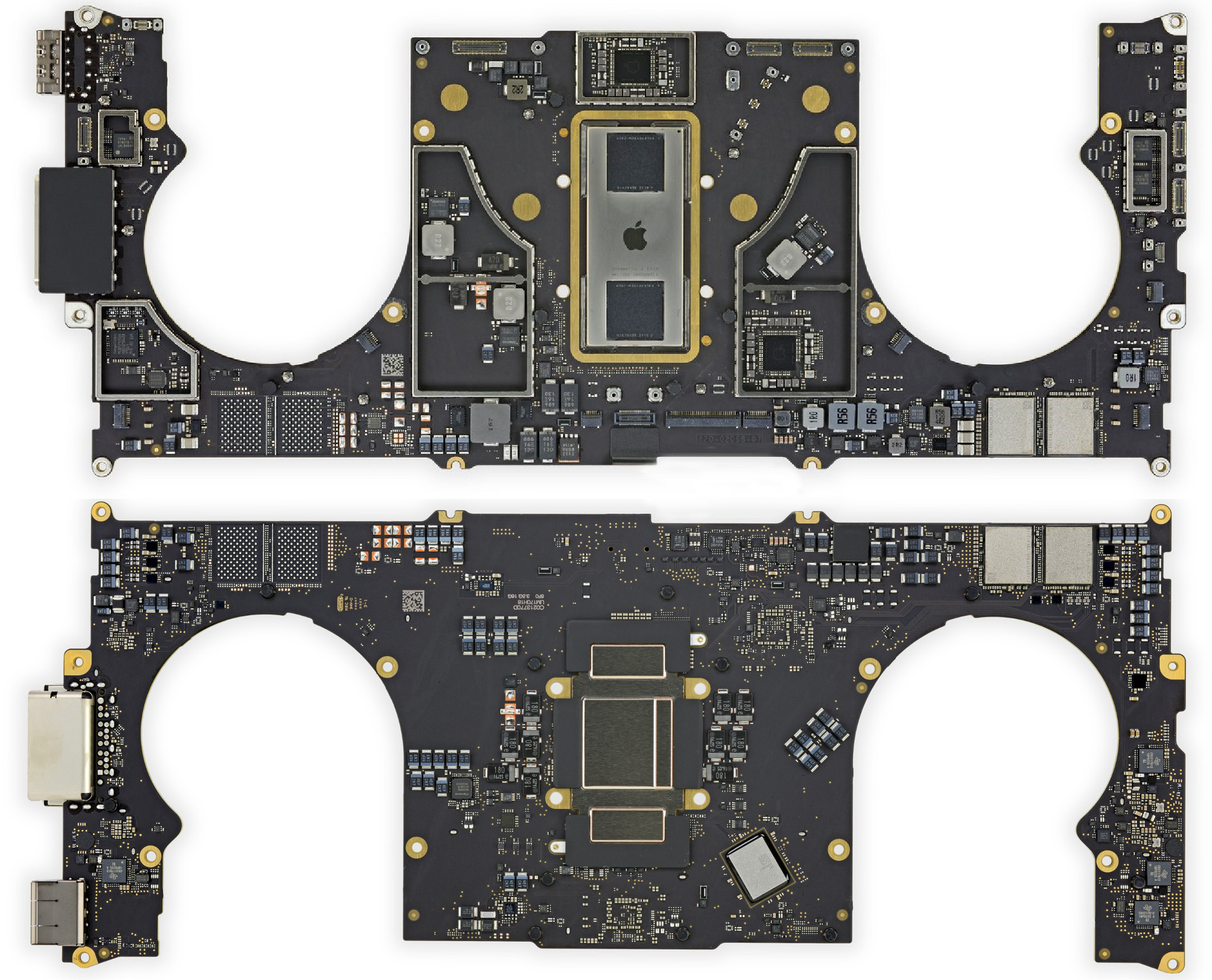

Click on picture to enlarge	Price: US $20.00 What's included: — Schematic Diagram for MLB/MB — BoardView file for MLB/MB and BoardView software (OpenBoardView v9.95.0) — MLB pictures in High Resolution (Top & Bottom ) Main info: CPU: Apple M1 Pro 3.2 GHz (8/10/10-Core CPU & 14/14/16-Core GPU accordingly) GPU: Integrated Screen: 14" Year: 2021 File types: Schematic Diagram(s) : PDF / Searchable Silkscreen(s): N/A BoardView file(s) : .BVR (Compatible with OpenBoardView v9.95.0 and FlexBV ) MLB pictures : High Resolution JPG Diode Mode Measurements : N/A Language : English

Click on picture to enlarge

Price: US $20.00

What's included:

— Schematic Diagram for MLB/MB
— BoardView file for MLB/MB and BoardView software (OpenBoardView v9.95.0)
— MLB pictures in High Resolution (Top & Bottom )

Main info:

CPU: Apple M1 Pro 3.2 GHz (8/10/10-Core CPU & 14/14/16-Core GPU accordingly)
GPU: Integrated
Screen: 14"
Year: 2021

File types:

Schematic Diagram(s) : PDF / Searchable
Silkscreen(s): N/A
BoardView file(s) : .BVR (Compatible with OpenBoardView v9.95.0 and FlexBV )
MLB pictures : High Resolution JPG
Diode Mode Measurements : N/A
Language : English

Updated: 16-08-2023
