Lenovo Lenovo Chromebooks series Flex 5 CB-13IML05 Laptop (ideapad) - Type 82B8, Motherboard and USB Board BoardView file, Silkscreen Schematic diagram
Click on picture to enlarge |

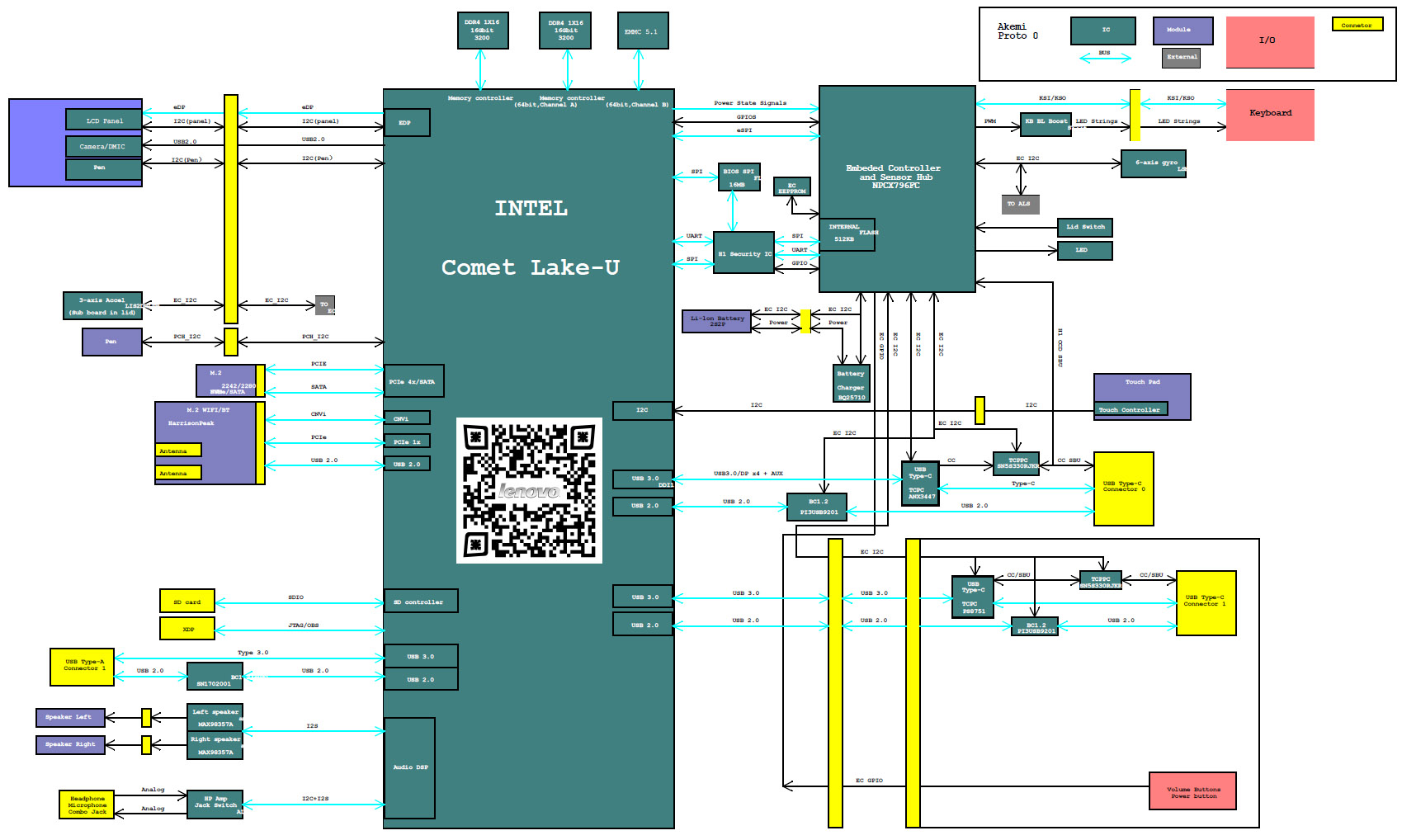

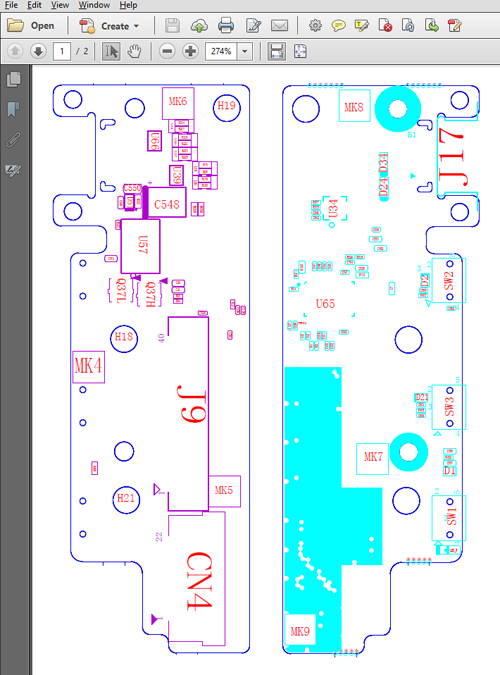

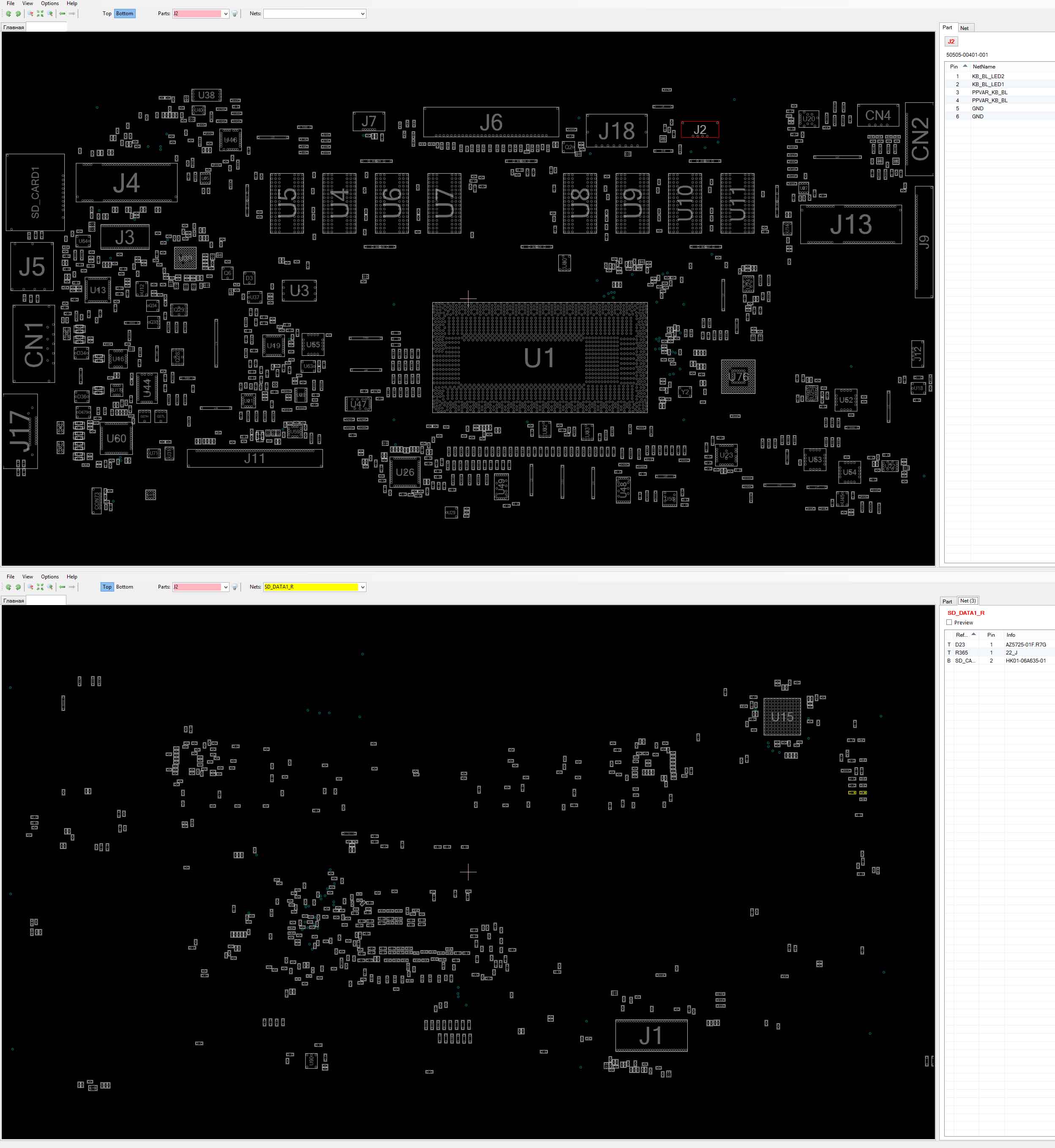

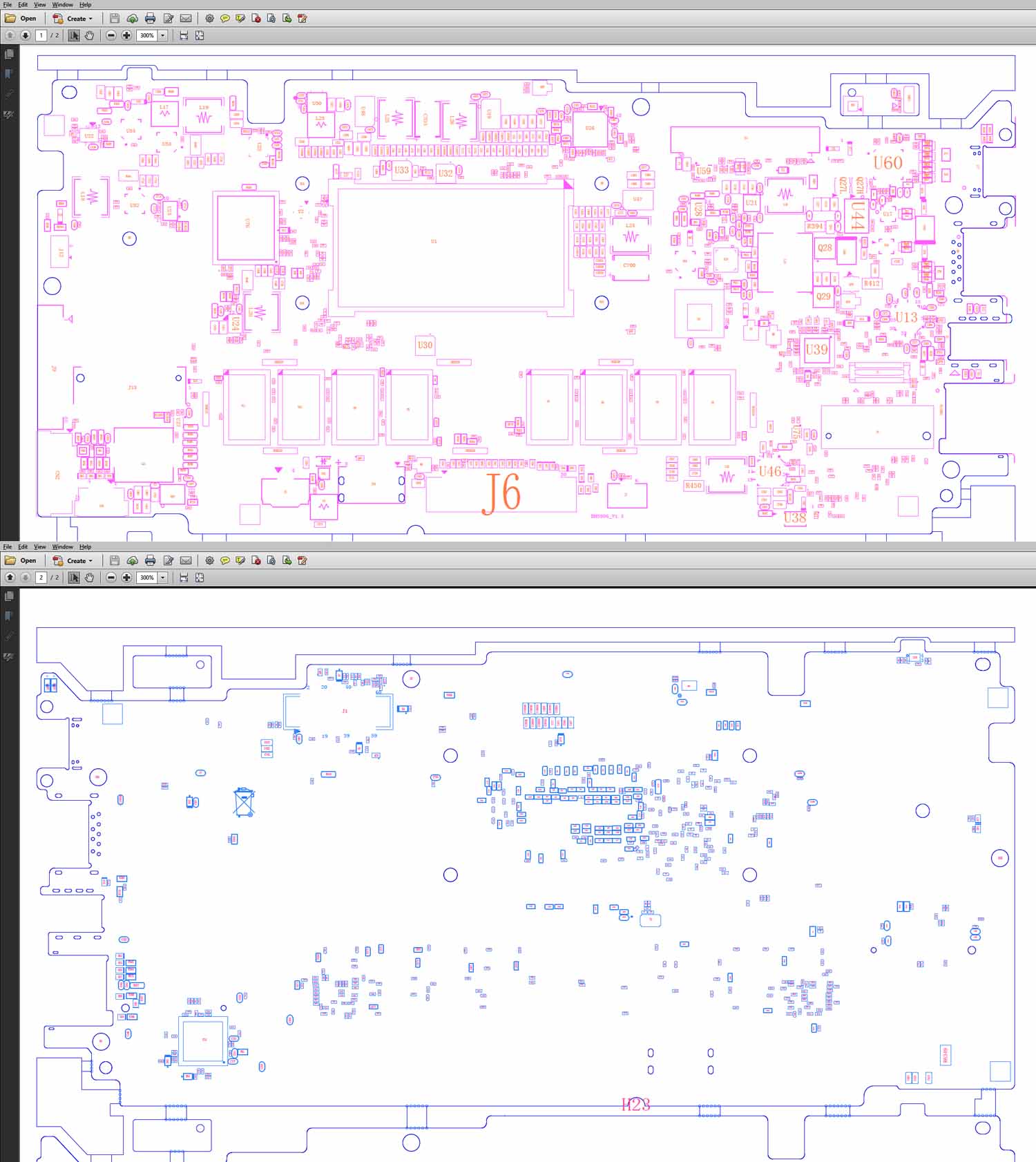

What's included: — 2 Schematic Diagrams for motherboard and I/O Board — BoardView file for motherboard + BoardView Software — Silkscreens for I/O Board — Power Sequence Timing Diagram — Power Tree (Power Block Diagram / Power Distribution Diagram) — I2C Bus Block Diagram — Type-C Block Diagram Main components: CPU/HUB/RAM: Intel CometLake-U / DDR4 GPU: UMA EC/SIO : Nuvoton NPCX796F File types: Schematic Diagram(s) : PDF / Searchable Silkscreen for MB : PDF / Searchable BoardView file(s) : .TVW Language : English |
---|
