Lenovo L series laptops (ThinkPad) L15 Gen 2 (type 20X3, 20X4) Laptop (ThinkPad) (with HDD), Motherboard and SubBoard BoardView file + Silkscreens and Schematic diagram
|
|

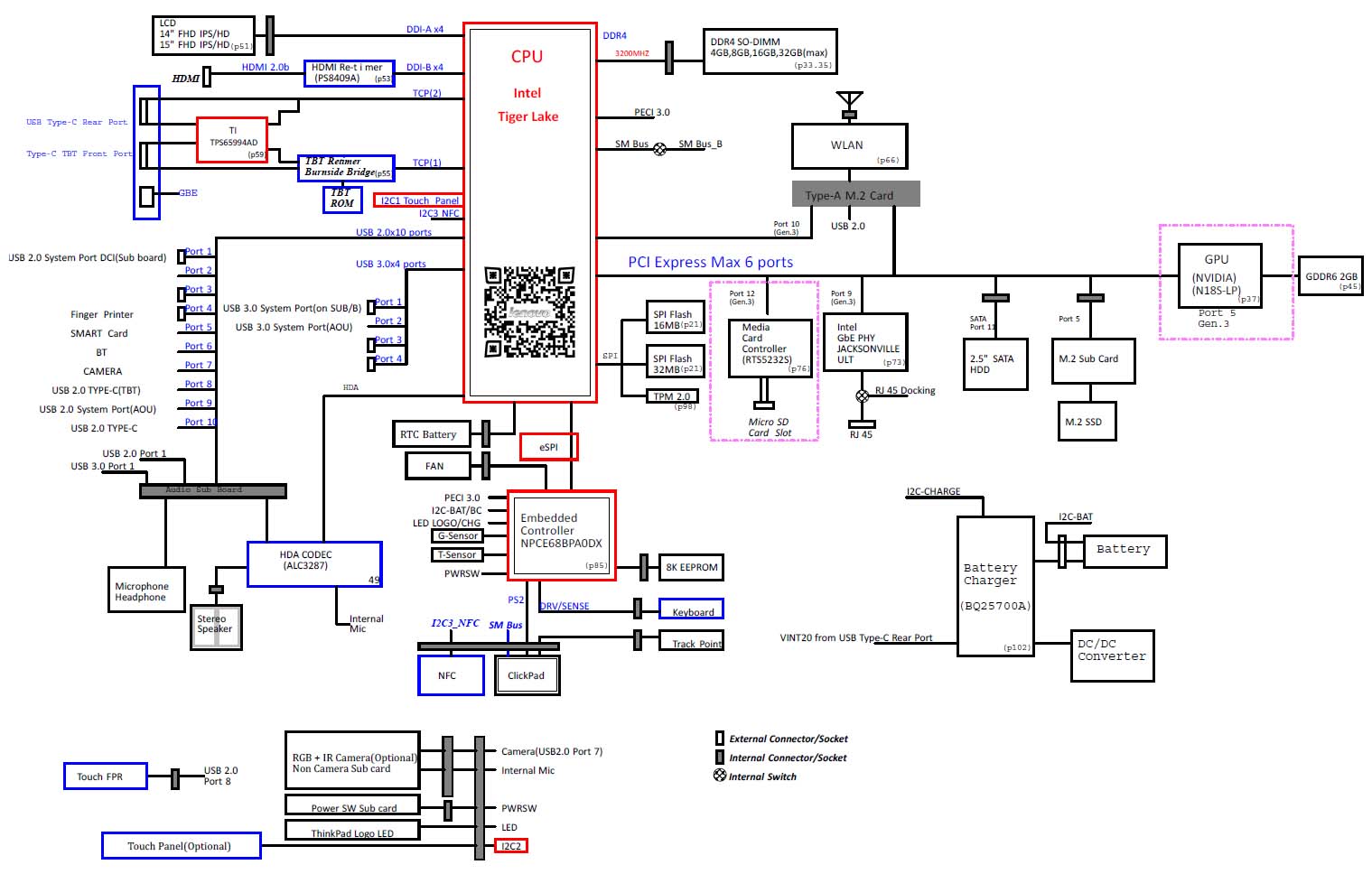

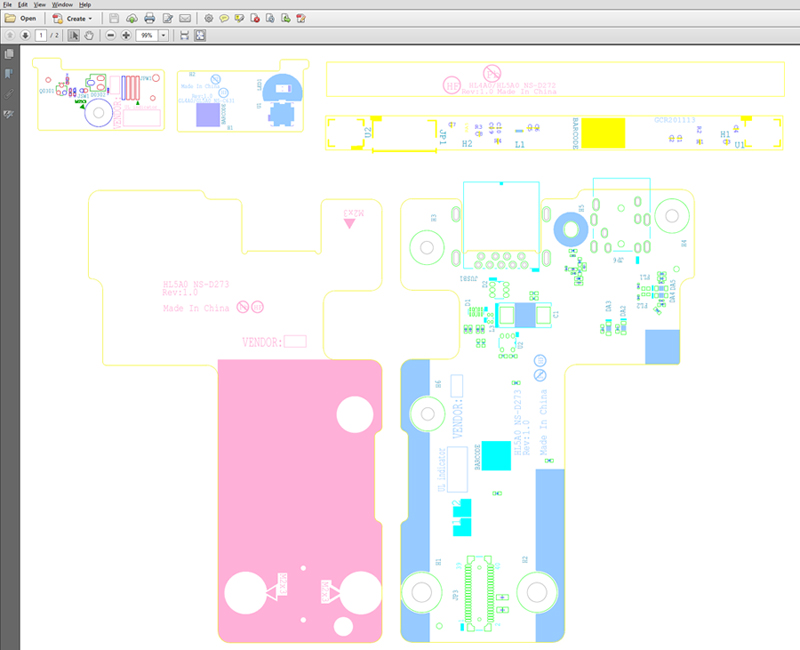

Price: US $20.00 — 4 Schematic Diagrams for Motherboard, USB, MIC and Power Boards — BoardView file for motherboard and BoardView software — 3 Silkscreens for USB, MIC and Power Boards — Power Sequence Timing Diagram Major components: CPU/HUB/RAM: Intel TigerLake-U / DDR4 GPU/VRAM : UMA EC/SIO : NPCE68BPA0DX File types: Schematic Diagram(s) : PDF / Searchable Silkscreen for MB : PDF / Searchable BoardView file(s) : .TVW Language : English |
|---|

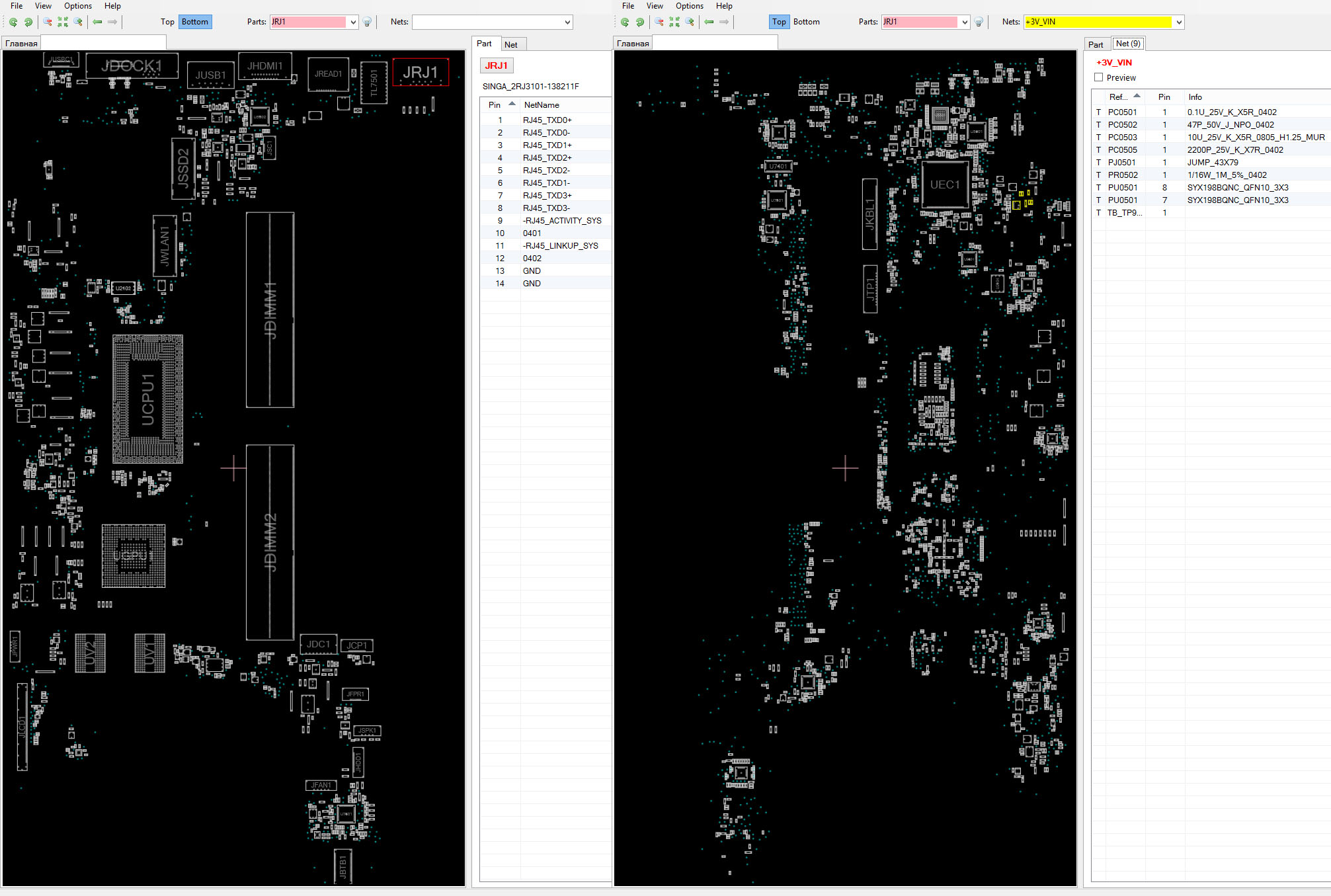

Click on picture to enlarge
