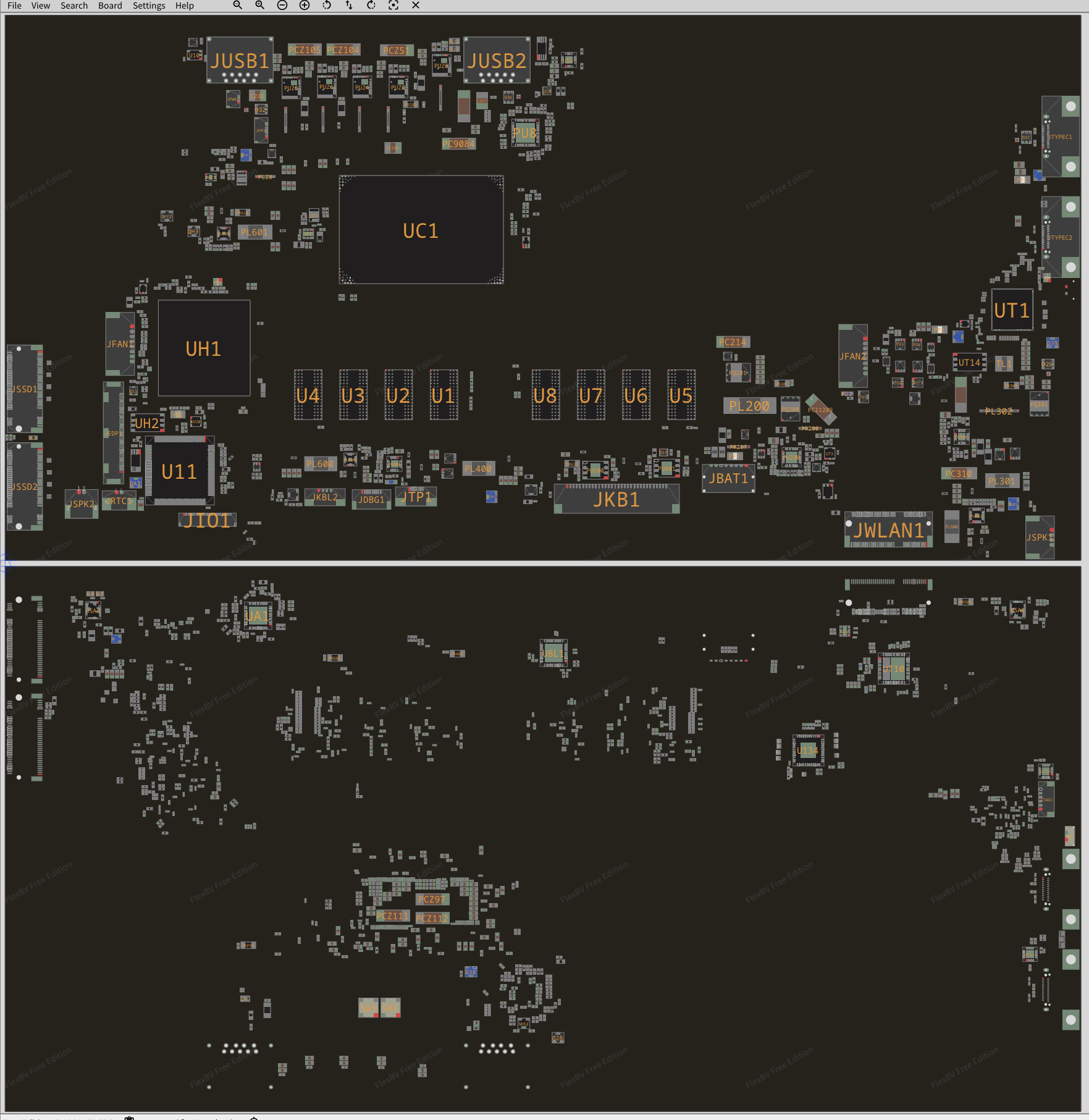

Lenovo Legion series laptops (Lenovo) Legion Y740S-15IRH (Type 81QA), Motherboard and Sub Boards schematic Diagram + BoardView file
|
|
Price: US $20.00 What's included: — 4 Schematic Diagrams for Motherboard and I/O, MIC and Power Boards — BoardView file abd BoardView software Major components: CPU/HUB/RAM: Intel CoffeeLake-H / HM370 / DDR4 GPU/VRAM : UMA EC/SIO : ENE KB9542 File types: Schematic Diagram(s) : PDF / Searchable Silkscreen(s) : N/A BoardView file(s) : pcb Language : English |
|---|
