Lenovo Gaming Series Laptops ideapad Gaming 3-15ARH05 Laptop - Type 82EY , Motherboard BoardView file and Schematic diagram
|
|

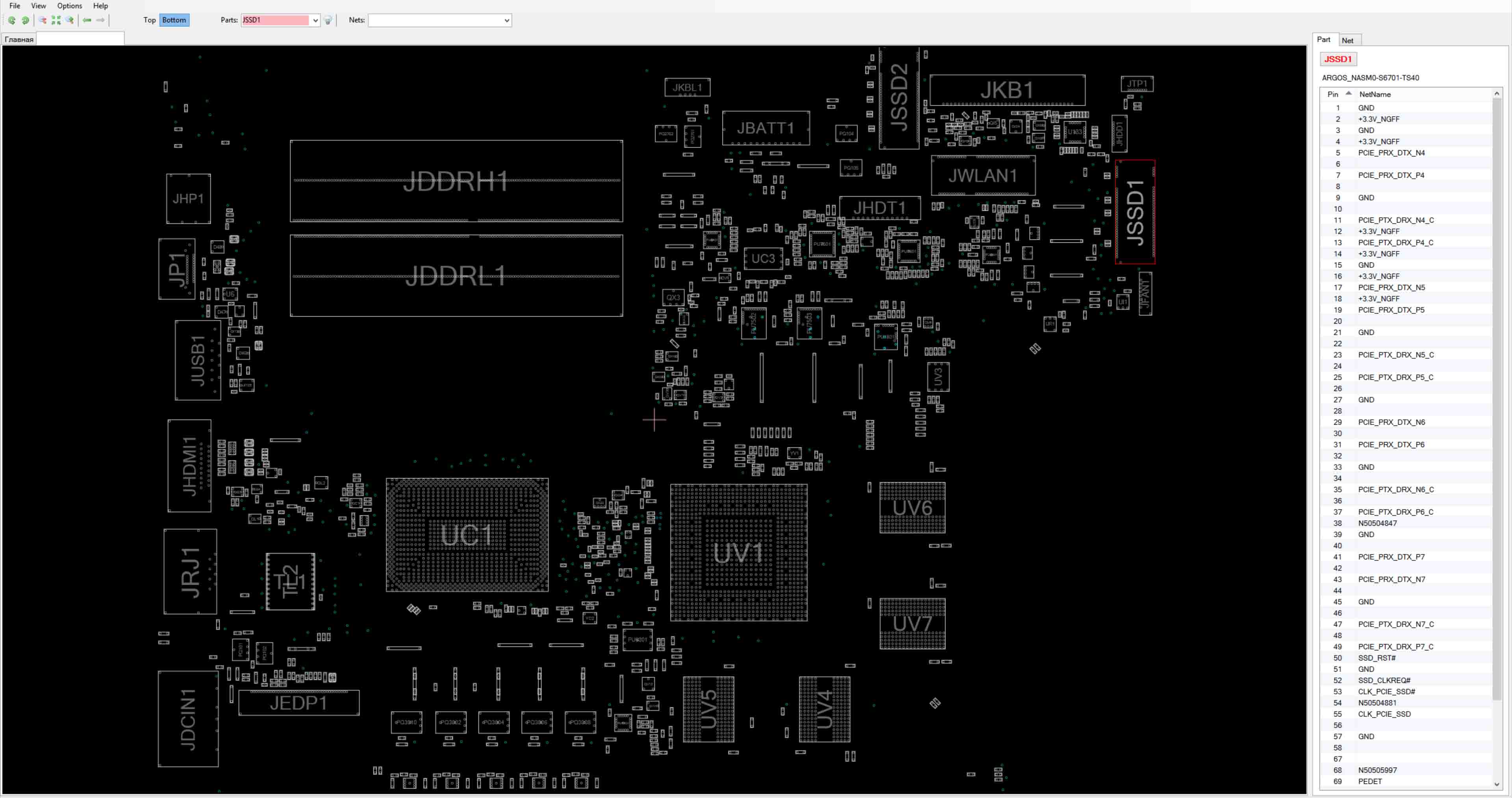

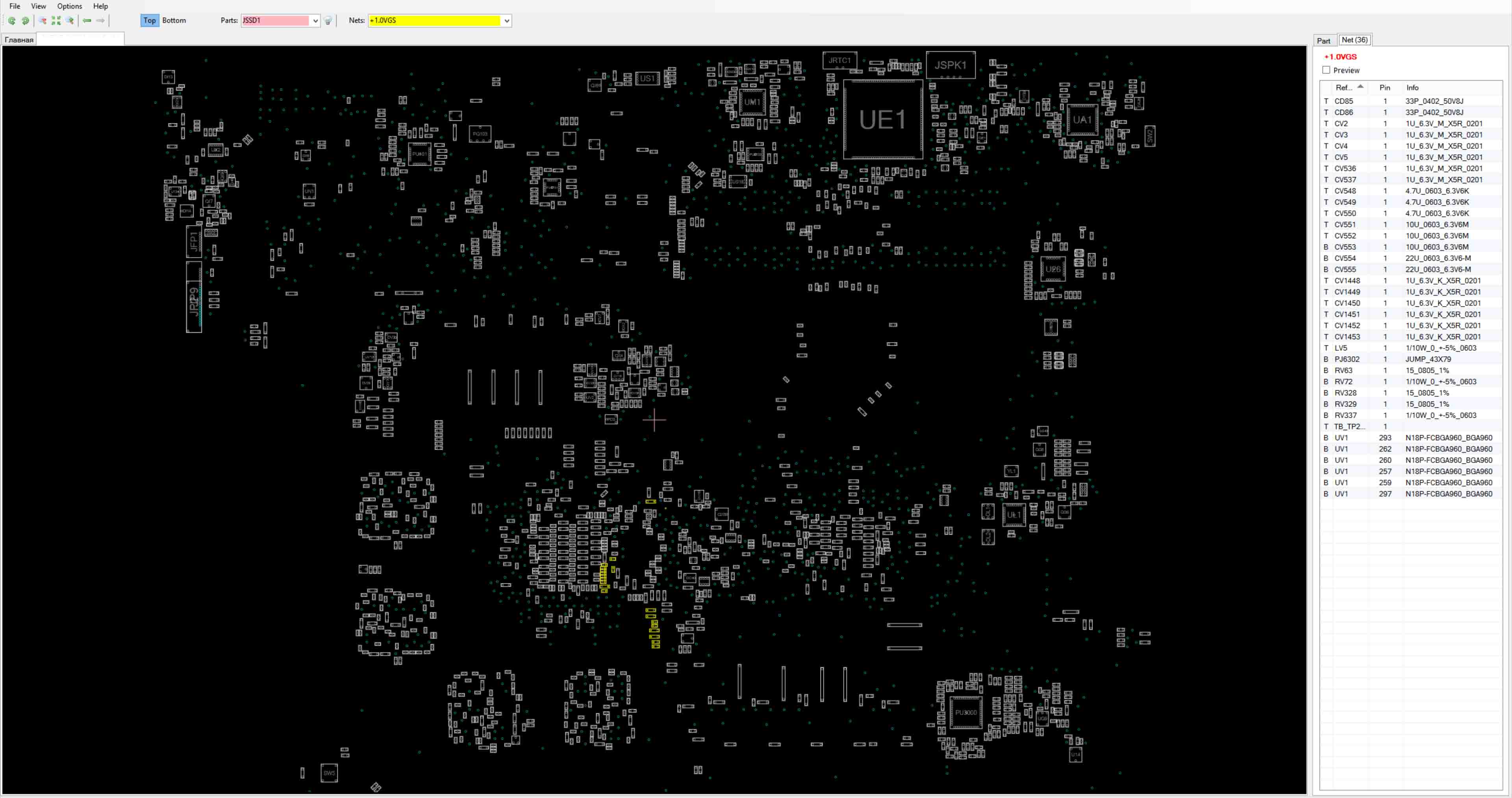

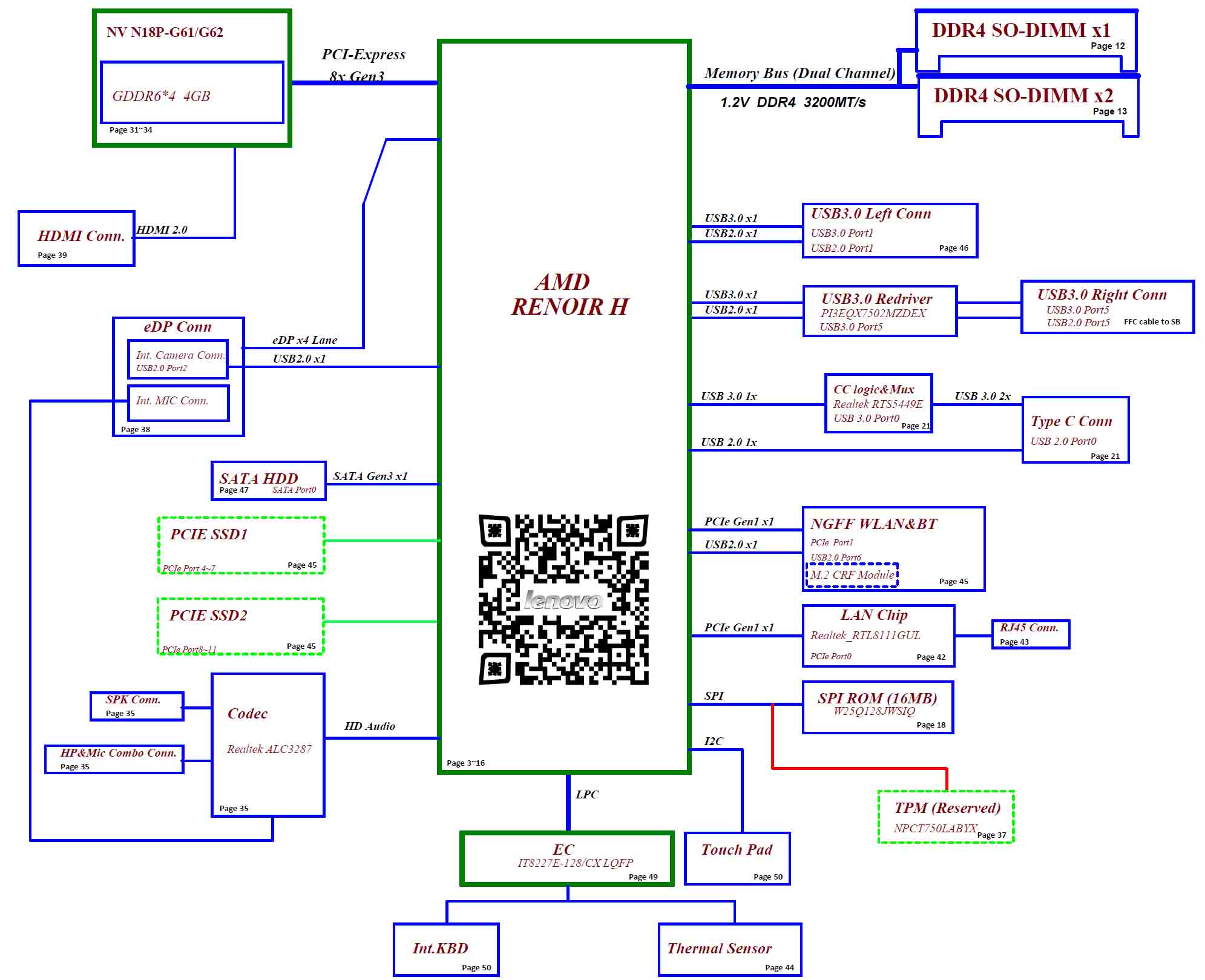

Price: US $20.00 — Schematic Diagram for Motherboard — BoardView file for motherboard and BoardView Software — Schematic Diagram for USB Board — Power Sequence Step-by-Step Block Diagram — Power Block Diagram — i2C Block Diagram Major components: CPU/HUB/RAM : AMD RENOIR-H / DDR4 GPU : DIS (nVidia N18P-G61/G62 + GDDR6) EC : IT8227E-128/CX File types: Schematic Diagram(s) : PDF / Searchable Silkscreen(s) : N/A BoardView file(s) : .TVW Language : English |
|---|
