Lenovo Lenovo Chromebooks series ideapad 3 CB-11AST05 - Type 82H4 , Motherboard BoardView file* (*Silkscreen) and Schematic diagram
|
|

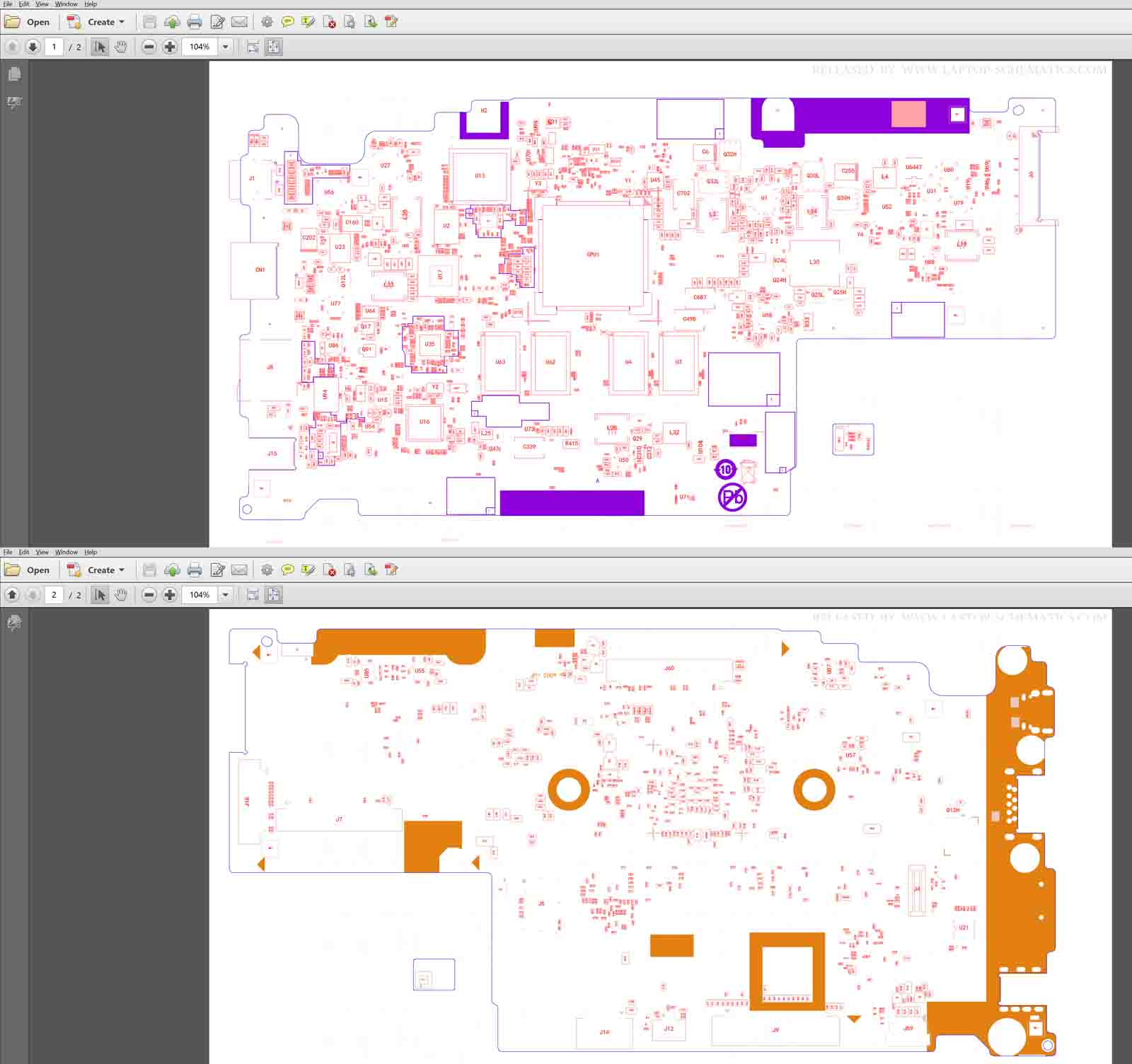

Price: US $20.00 What's included: — Schematic Diagram for Motherboard — BoardView file* (*Silkscreen) for Motherboard — Power Block Diagram (Power Distribution Diagram / Power Tree) — I2C Map — USB Block Diagram — USB Map Major components: CPU/HUB/RAM : AMD Stoney Ridge FT4 / DDR4 GPU : UMA EC : NPCX796F File types: Schematic Diagram(s) : PDF / Searchable Silkscreen(s) : PDF / Searchable BoardView file(s) : N/A Language : English |
|---|
Click on picture to enlarge
