Dell Latitude 3300 (KabyLake-R), Motherboard Schematic Diagram, BoardView file and BoardView software
|
|

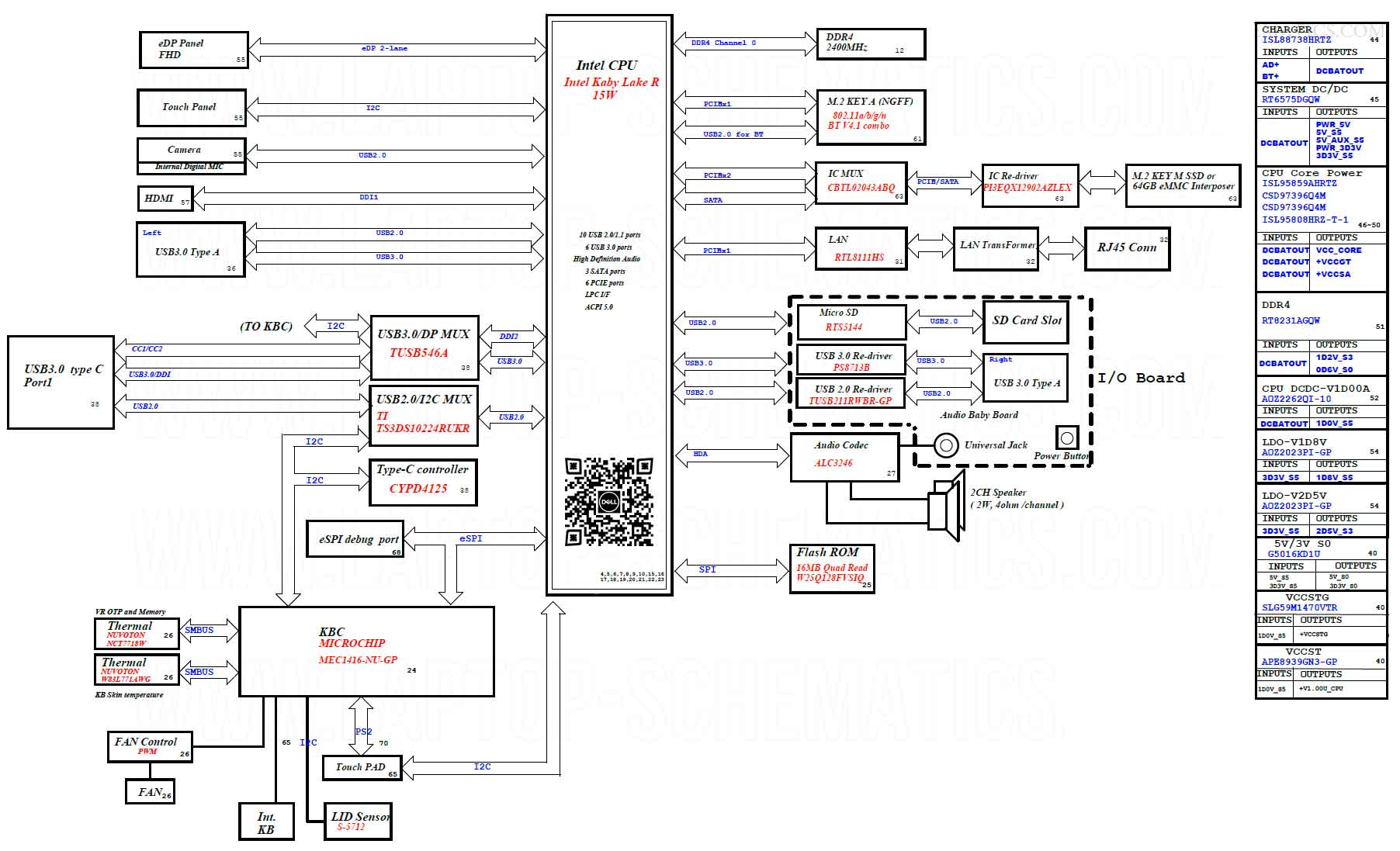

Price: US $20.00 What's included: — Schematic Diagram for MB — BoardView file and BV Software — Power Sequence Timing diagram — Power Sequence Step-by-Step Block diagram — Power Block Diagram — SMBus Block Diagram — Thermal Block Diagram — Audio Block Diagram Major components: CPU/RAM: Intel KabyLake-R + DDR4 GPU : UMA EC : MEC1416 File types : Schematic Diagram: PDF / Searchable BoardView file : PCB Language : English |
|---|
Click on picture to enlarge
