Lenovo L series laptops (ideaPad) L3-15IML05 Laptop (ideapad) (DIS GPU), Motherboard BoardView file and Schematic diagram
Click on picture to enlarge |

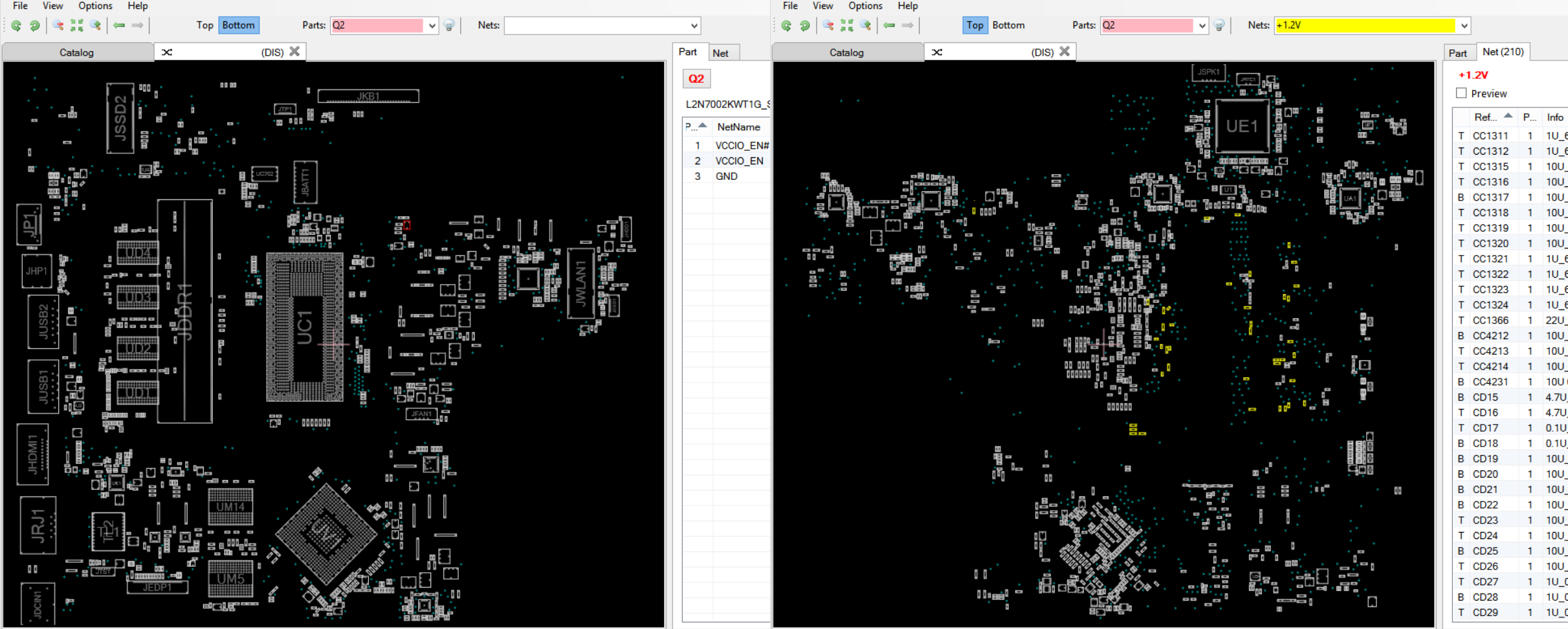

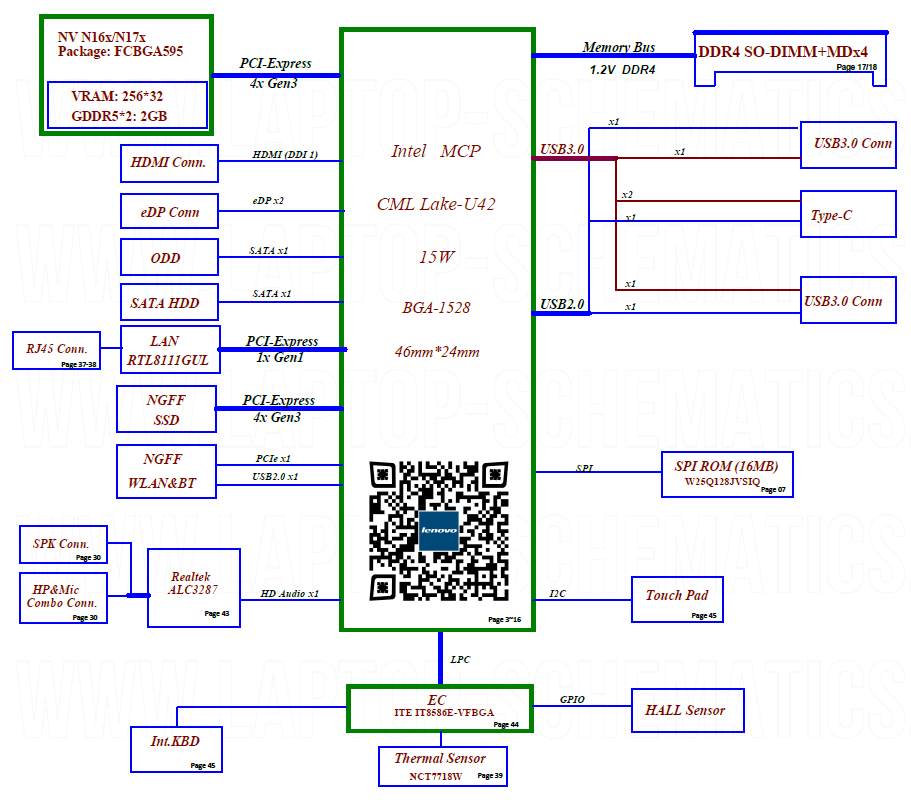

What's included: — BoardView file and BoardView software — Power On Sequence Step-by-Step Block Diagram — Power Block Diagram (Power Distribution Diagram / Power Flow Diagram) Major components: CPU/RAM: Intel CometLake-U / DDR4 GPU: DIS (NVIDIA GeForce MX130/MX330 +GDDR5) EC: ITE IT8586E File type : PDF Language : English |
---|
