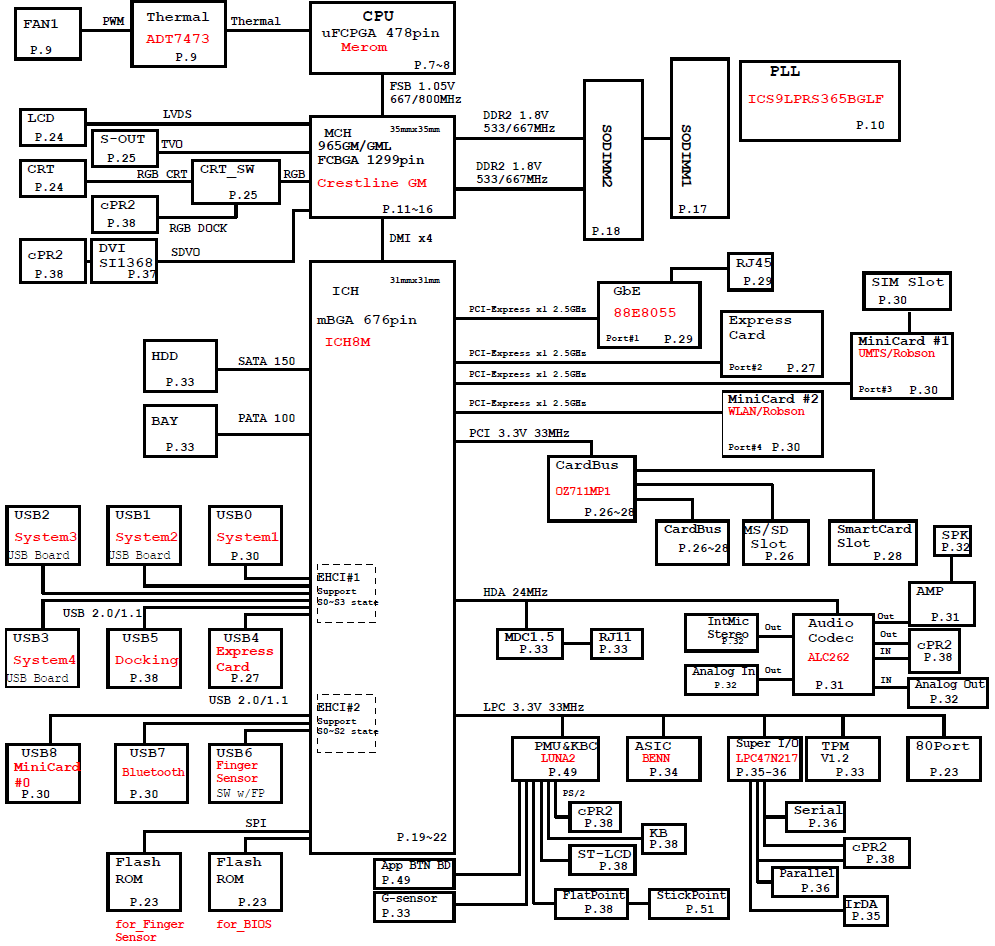

Fujitsu-Siemens LIFEBOOK E8310, Motherboard schematic diagram Schematic diagram

Click on picture to enlarge	Price: US $11.25 Major components CPU :Intel Merom Thermal Sensor :ADT7473 North Bridge :Intel Crestline 965GM/GML South Bridge :Intel ICH8M Video :UMA Clock Generator :ICS9LPRS365BGLF Audio Codec :ALC262 Audio Amplifier :G1432Q5U KBC(Embeded Controller),SIO :MB90F378PF(LUNA2),S1L50552F33N000(BENN),LPC47N217 LAN Controller :88E8055 Card BUS, etc.... :OZ711MP1 Glide SW Board controller :AES2501B <Power System> TPS2231RGPR MAX8770GTL+ SC339SKTRT BH33FB1WHFV SC339SKTRT MM1380AWBE MAX8724ETI TPS51020DBT TPS51117RGYR TPS51100 SC472BMLTRT TPS51117RGYR G696L263T1Uf Total Pages : 55 * Power Rail table included File type : PDF Language : English

Click on picture to enlarge

Price: US $11.25

Major components

CPU :Intel Merom
Thermal Sensor :ADT7473
North Bridge :Intel Crestline 965GM/GML
South Bridge :Intel ICH8M
Video :UMA
Clock Generator :ICS9LPRS365BGLF
Audio Codec :ALC262
Audio Amplifier :G1432Q5U
KBC(Embeded Controller),SIO :MB90F378PF(LUNA2),S1L50552F33N000(BENN),LPC47N217
LAN Controller :88E8055
Card BUS, etc.... :OZ711MP1
Glide SW Board controller :AES2501B

<Power System>

TPS2231RGPR
MAX8770GTL+
SC339SKTRT
BH33FB1WHFV
SC339SKTRT
MM1380AWBE
MAX8724ETI
TPS51020DBT
TPS51117RGYR
TPS51100
SC472BMLTRT
TPS51117RGYR
G696L263T1Uf

Total Pages : 55 * Power Rail table included
File type : PDF
Language : English

Updated: 18-03-2010
