Compal OEM LA-D802P BAL21 , Motherboard BoardView files and Schematic diagram

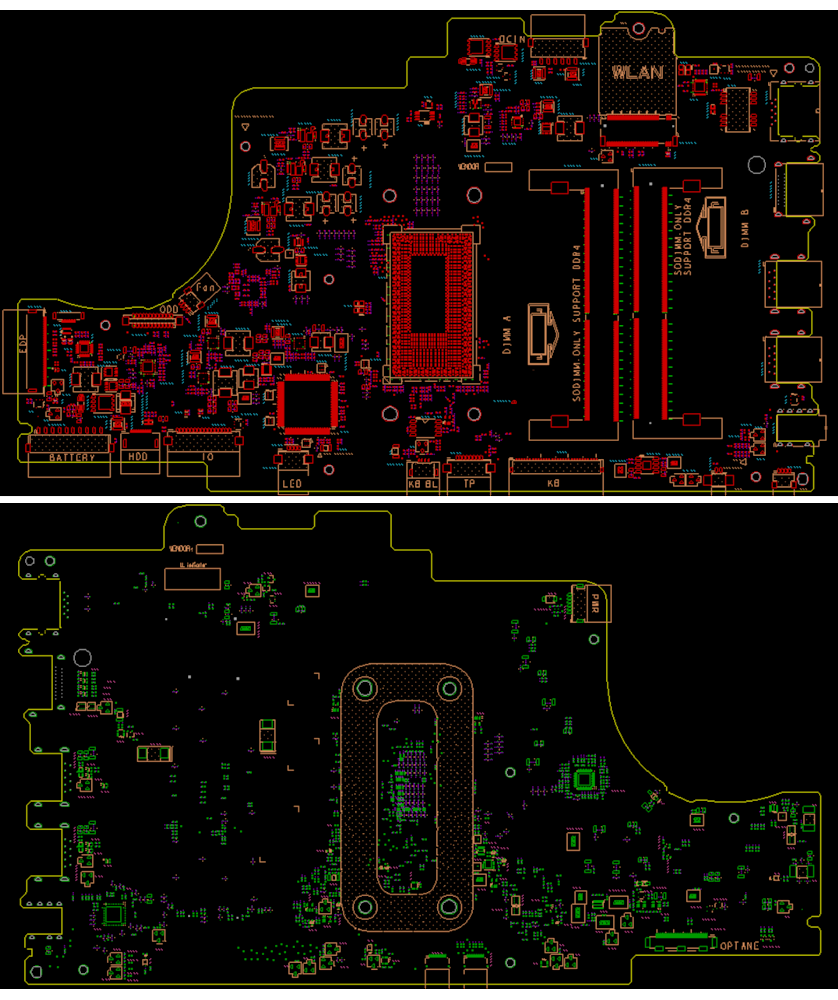

Click on picture to enlarge	Price: US $20.00 Known motherboard p/n: BAL21 LA-D802P Also included: — Schematic Diagram — BoardView file and BV Software — Power Rail (Power Block Diagram) — SMBus Block diagram Major components: CPU Intel Skylake-U or Kabylake-U + DDR4-RS GPU: UMA EC: MEC1404-NU-GP File type : PDF BoardView file: BRD, PCB Language : English

Click on picture to enlarge

Price: US $20.00

Known motherboard p/n: BAL21 LA-D802P

Also included:

— Schematic Diagram

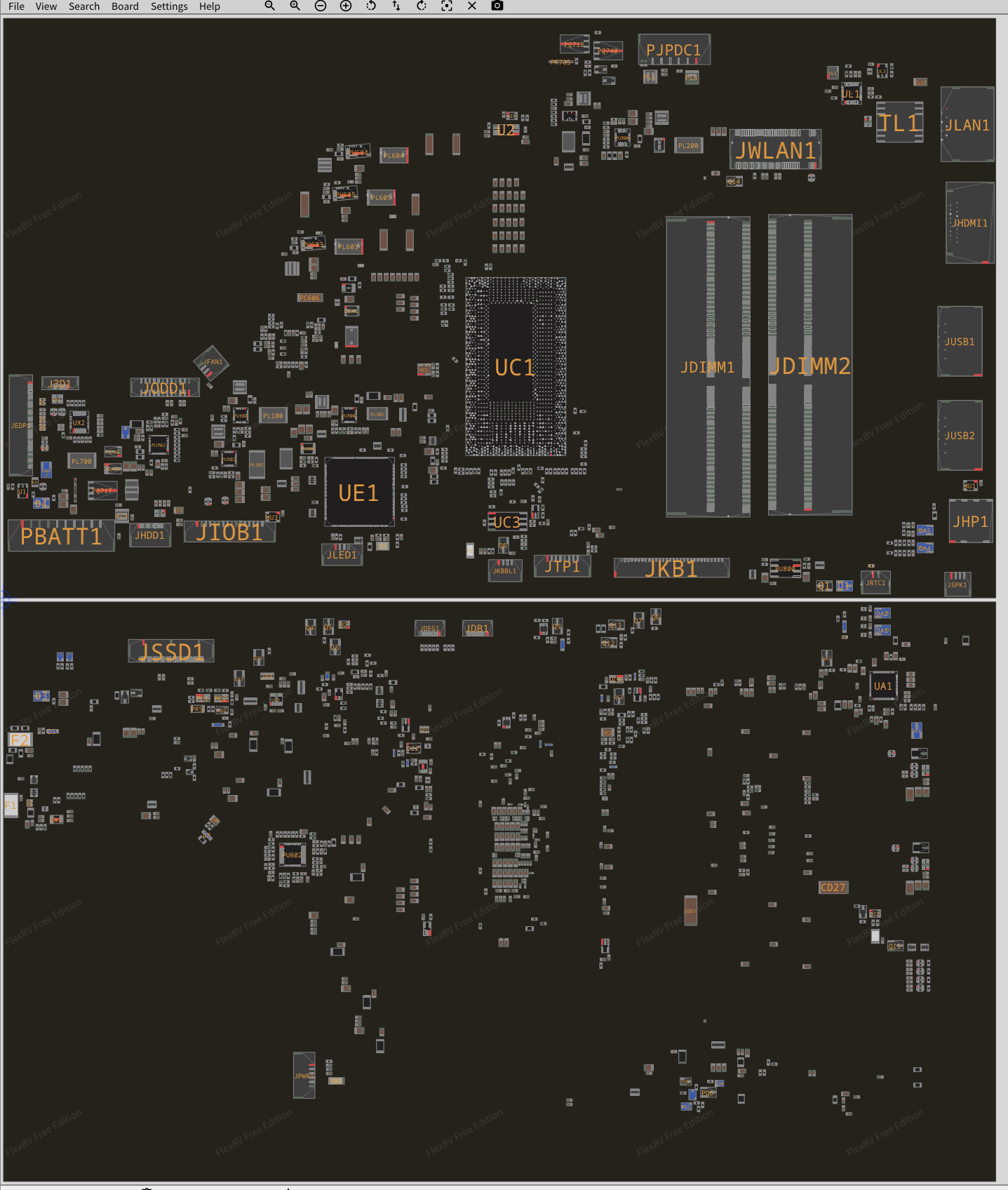

— BoardView file and BV Software
— Power Rail (Power Block Diagram)

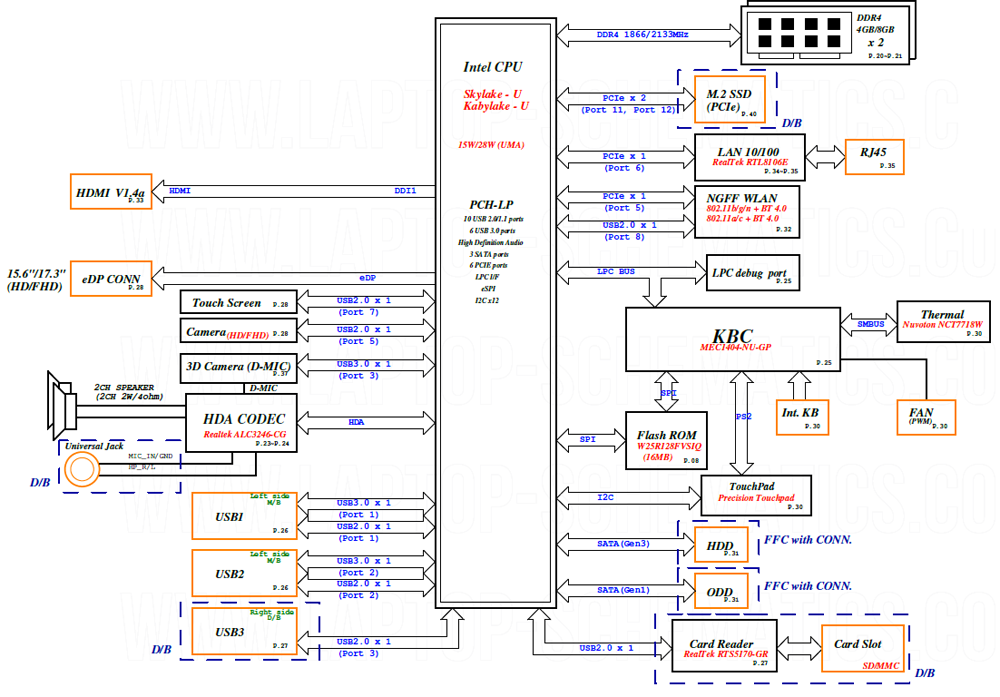

— SMBus Block diagram

Major components:

CPU Intel Skylake-U or Kabylake-U + DDR4-RS
GPU: UMA
EC: MEC1404-NU-GP

File type : PDF
BoardView file: BRD, PCB
Language : English

Updated: 12-12-2025
