Acer Swift SF113-31, motherboard Schematic diagram

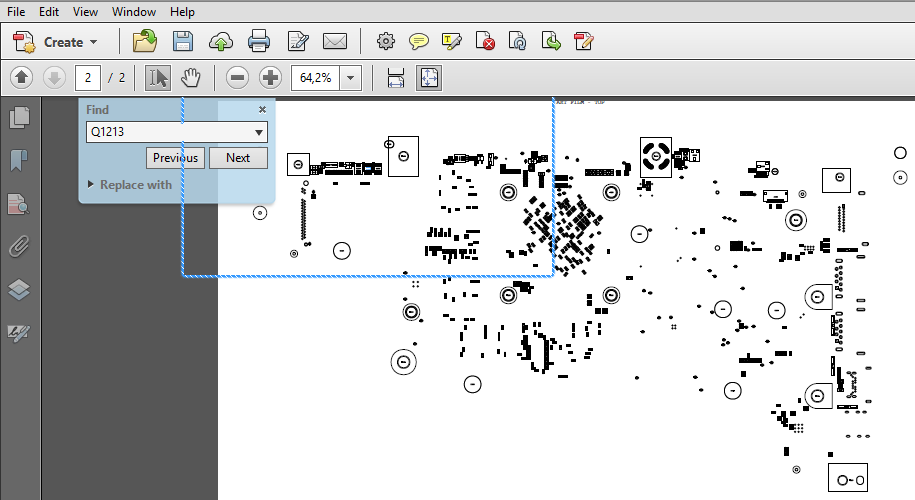

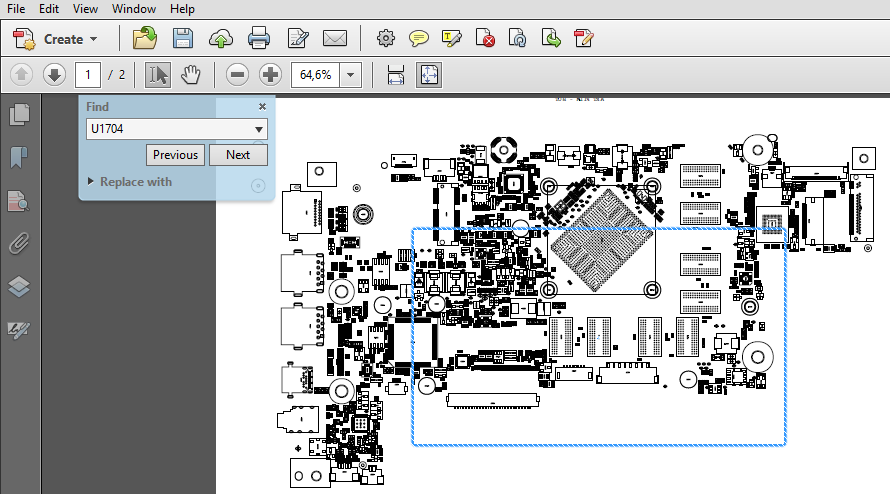

Click on picture to enlarge	Price: US $18.75 Also included: — BoardView file (Silkscreen. Searchable PDF) — Power Flow Chart — Power Sequence Block diagram Major components: CPU: Intel Apollo Lake / DDR3L GPU: UMA EC: ITE8987E/BX File type : PDF Language : English

Click on picture to enlarge

Price: US $18.75

Also included:

— BoardView file (Silkscreen. Searchable PDF)
— Power Flow Chart

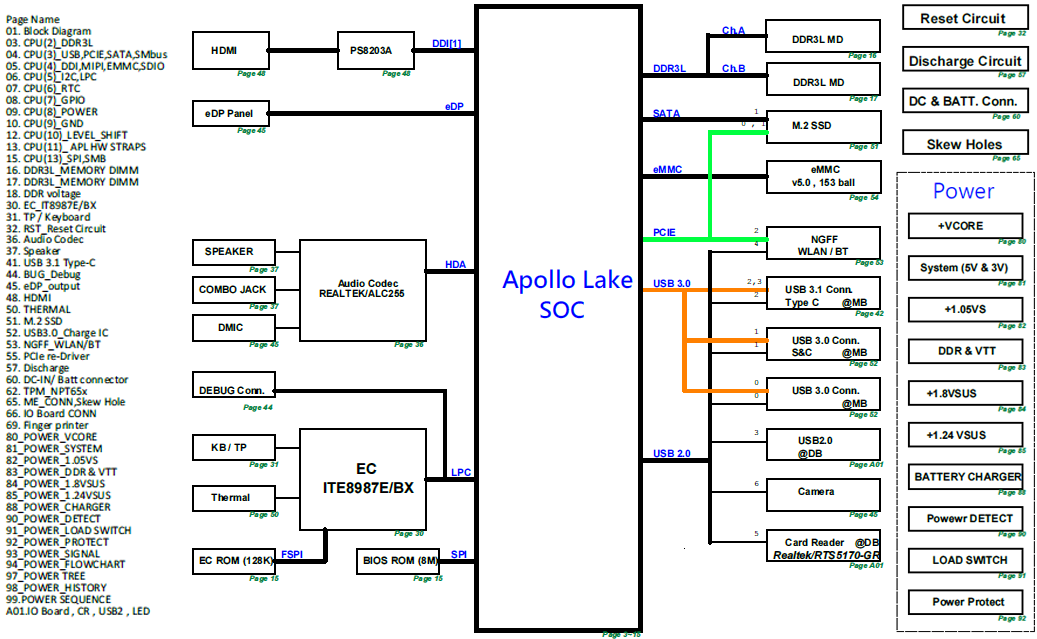

— Power Sequence Block diagram

Major components:

CPU: Intel Apollo Lake / DDR3L
GPU: UMA
EC: ITE8987E/BX

File type : PDF
Language : English

Updated: 05-10-2019
