Fujitsu-Siemens AMILO A7620, Motherboard schematic diagram Schematic diagram

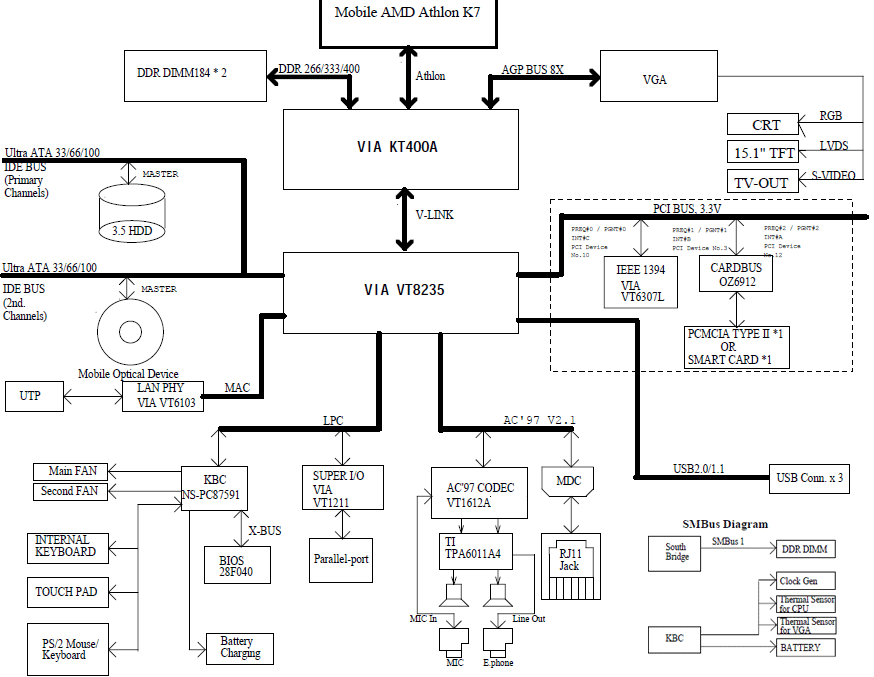

Click on picture to enlarge	Price: US $11.25 Major components CPU :AMD Athlon K7 North Bridge :VIA KT400A South Bridge :VIA VT8235 Video :ATI Mobility RADEON M9-P Clock Generator :ICS94228,ICS93712 Audio Codec :VT1612A Audio Amplifier :TPA06011A4 KBC(Embeded Controller),SIO :PC87591,VT1211 LAN Controller :VIA VT6103 CardBUS/1394/Cardreader Contr.:VT6307L,OZ6912 <Power System> ISL6223 ISL6207CB x2 TL594 MIC2951 MAX4173F MAX1902 ISL6224 CM8561 IRU3037 Total Pages : 37 File type : PDF Language : English

Click on picture to enlarge

Price: US $11.25

Major components

CPU :AMD Athlon K7
North Bridge :VIA KT400A
South Bridge :VIA VT8235
Video :ATI Mobility RADEON M9-P
Clock Generator :ICS94228,ICS93712
Audio Codec :VT1612A
Audio Amplifier :TPA06011A4
KBC(Embeded Controller),SIO :PC87591,VT1211
LAN Controller :VIA VT6103
CardBUS/1394/Cardreader Contr.:VT6307L,OZ6912

<Power System>

ISL6223
ISL6207CB x2
TL594
MIC2951
MAX4173F
MAX1902
ISL6224
CM8561
IRU3037

Total Pages : 37
File type : PDF
Language : English

Updated: 31-01-2010
