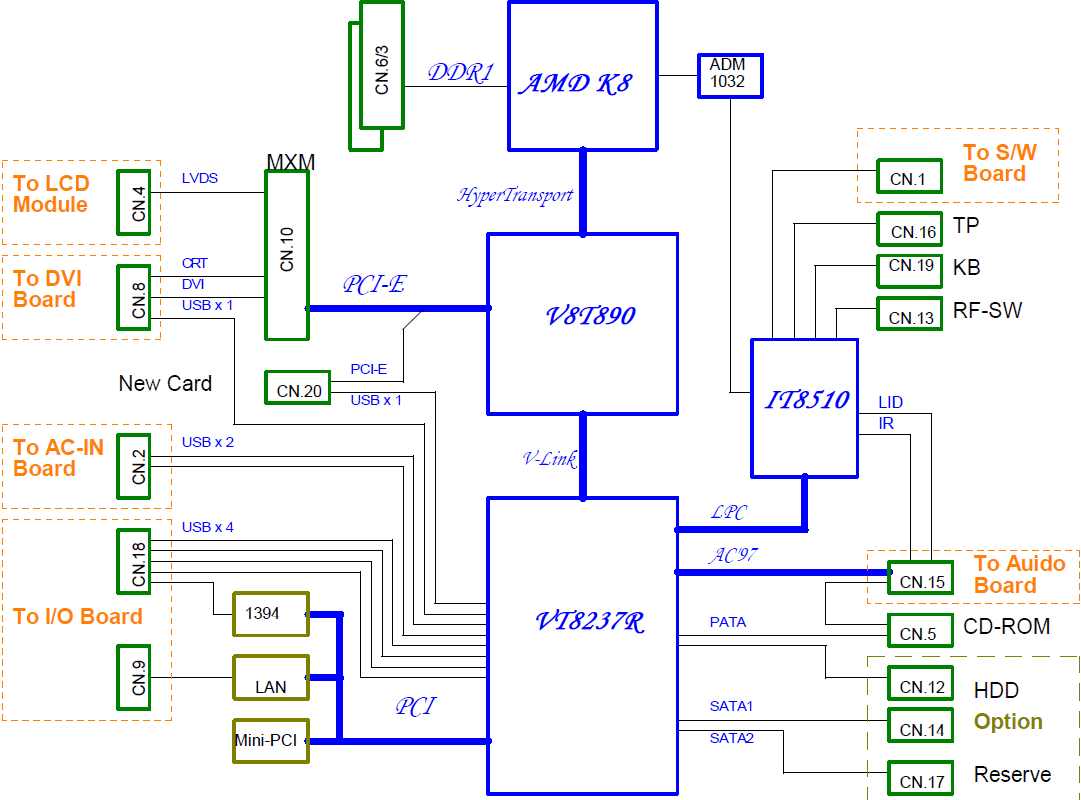

Fujitsu-Siemens AMILO A1655G, Motherboard schematic diagram Schematic diagram

Click on picture to enlarge	Price: US $11.25 Major components CPU :AMD K8 North Bridge :VIA V8T890 South Bridge :VIA VT8237R Video :MXM CARD ATI-M26P Termal Senor :ADM1032 Clock Generator :ICS953201 Audio Codec :VT1618 Audio Amplifier :TPA6011A4 KBC(Embeded Controller),SIO :IT8511E LAN Controller :RTL8100C/RTL8110SBL CardBUS/1394/Cardreader Contr.: <Power System> ISL6559 SC1404 MIC37302BR CM8562 OZ813 RT9173 OZ813 TL594 Total Pages : 45 (Audio/modem and MXM boards are included) File type : PDF Language : English

Click on picture to enlarge

Price: US $11.25

Major components

CPU :AMD K8
North Bridge :VIA V8T890
South Bridge :VIA VT8237R
Video :MXM CARD ATI-M26P
Termal Senor :ADM1032
Clock Generator :ICS953201
Audio Codec :VT1618
Audio Amplifier :TPA6011A4
KBC(Embeded Controller),SIO :IT8511E
LAN Controller :RTL8100C/RTL8110SBL
CardBUS/1394/Cardreader Contr.:

<Power System>

ISL6559
SC1404
MIC37302BR
CM8562
OZ813
RT9173
OZ813
TL594

Total Pages : 45 (Audio/modem and MXM boards are included)
File type : PDF
Language : English

Updated: 31-01-2010
