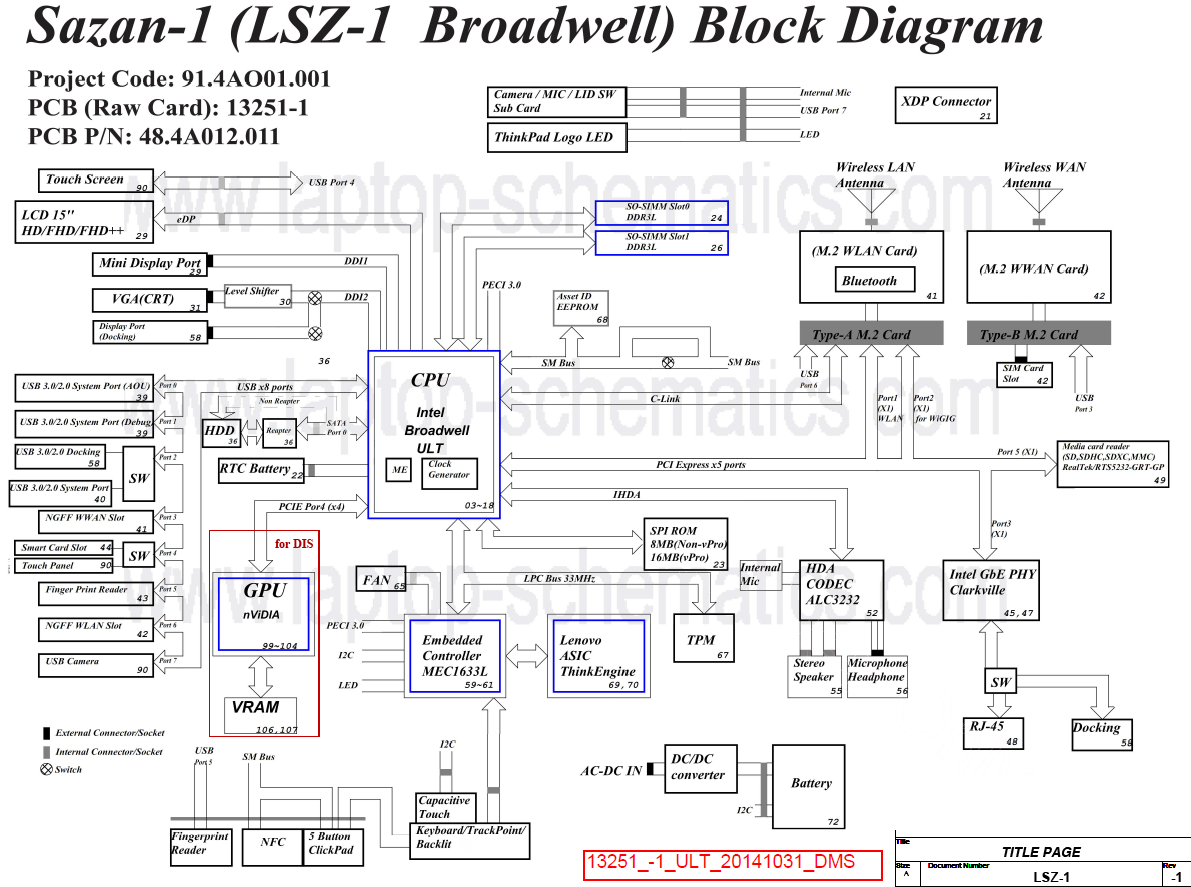

Wistron OEM LSZ-1, motherboard Schematic diagram

Click on picture to enlarge	Price: US $18.75 Wistron LSZ-1 (Sazan-1) / LSZ-WS (Sazan-WS) Known MB#s : LSZ-1 13251-1 48.4AO12.011 LSZ-1 13251-1 48.4AO14.011 Major components: CPU/PCH: Intel Broadwell-ULT GPU: NVIDIA N16S-GT (GeForce 940M)/NVIDIA Quadro K620M (DIS) or (UMA) EC: MEC1633L Revision: 1.0 File type : PDF (Searchable) Language : English Pages: 110

Click on picture to enlarge

Price: US $18.75

Wistron LSZ-1 (Sazan-1) / LSZ-WS (Sazan-WS)

Known MB#s :

LSZ-1 13251-1 48.4AO12.011
LSZ-1 13251-1 48.4AO14.011

Major components:

CPU/PCH: Intel Broadwell-ULT
GPU: NVIDIA N16S-GT (GeForce 940M)/NVIDIA Quadro K620M (DIS) or (UMA)
EC: MEC1633L

Revision: 1.0
File type : PDF (Searchable)
Language : English
Pages: 110

Updated: 28-08-2019
