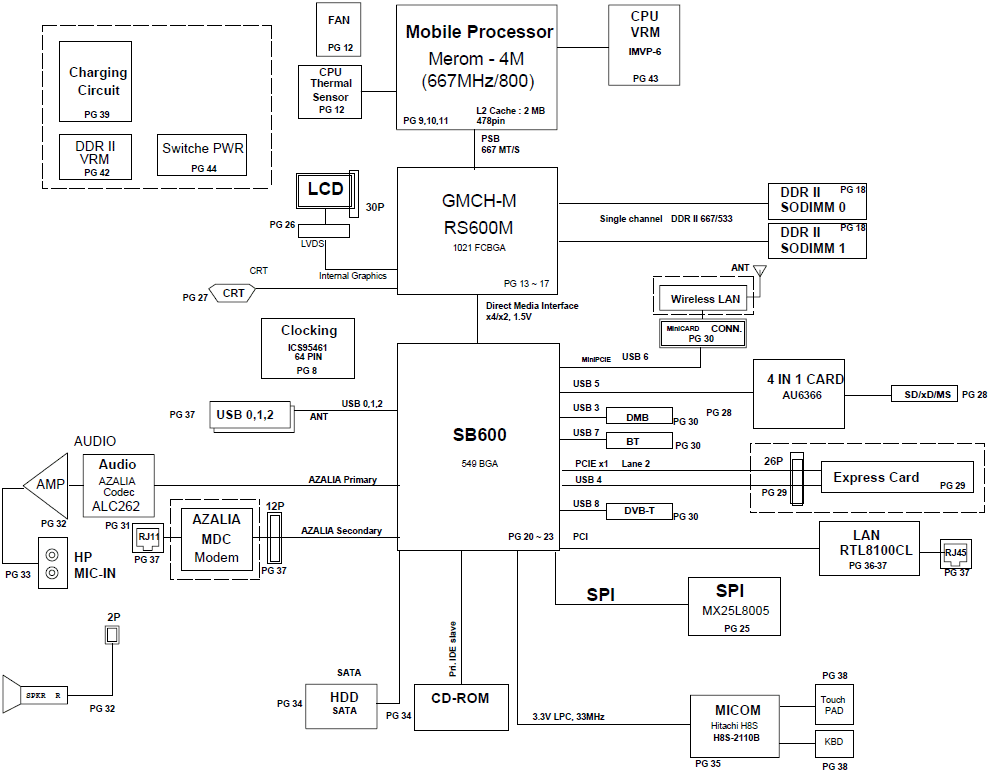

Samsung P-Series NP-P400 (Internal GFX), Motherboard schematic diagram Schematic diagram

Click on picture to enlarge	Price: US $11.25 Model : NP-P400 Project name : HAINAN-3(INT) / HAINAN3(INT)/ HAINAN-3 Internal Known PCB Codes: BA41-00807A BA41-00807A Known PBA Names: CPU : Intel Santarosa Merom Chip Set : AMD(ATI) RS600ME & SB600 Video : Internal ATI Radeon Xpress 1250 File type : PDF Language : English

Click on picture to enlarge

Price: US $11.25

Model : NP-P400
Project name : HAINAN-3(INT) / HAINAN3(INT)/ HAINAN-3 Internal
Known PCB Codes: BA41-00807A BA41-00807A
Known PBA Names:

CPU : Intel Santarosa Merom
Chip Set : AMD(ATI) RS600ME & SB600
Video : Internal ATI Radeon Xpress 1250

File type : PDF
Language : English

Updated: 30-01-2010
