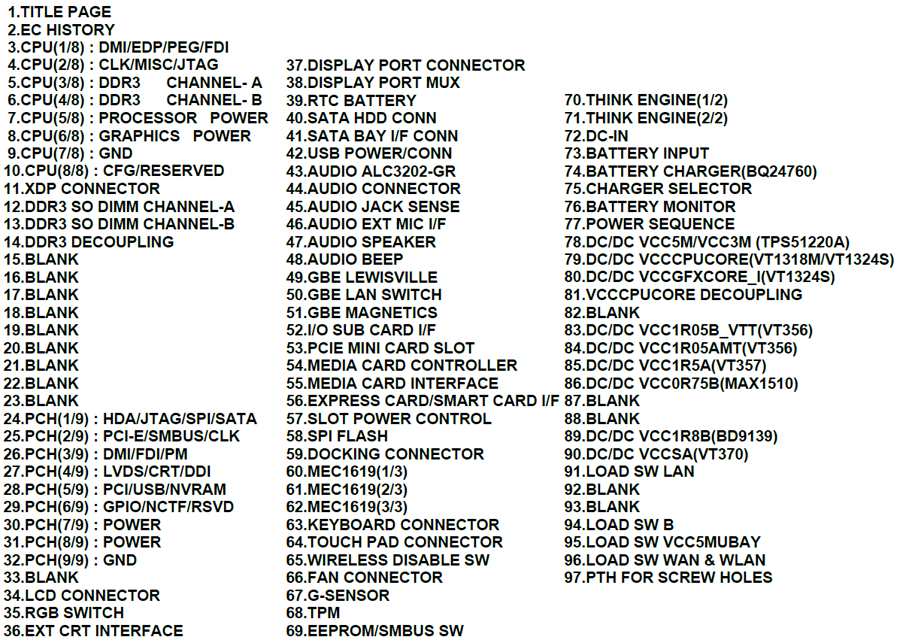

LCFC OEM NM-A082 VILT3 , motherboard Schematic diagram

Click on picture to enlarge

Price: US $15.00

~ Block Diagram is not available ~

Also included:

— BoardView file (Silkscreen. Searchable PDF file)

Major components:

CPU: Intel Ivy Bridge
PCH: Intel COUGAR_POINT_M
GPU: (UMA)
EC : MEC1619

File type : PDF (Searchable)
Language : English

Also included:

Updated: 21-11-2019
