Lenovo Z series laptops (ideapad) Z410 Laptop (IdeaPad), motherboard Schematic diagram

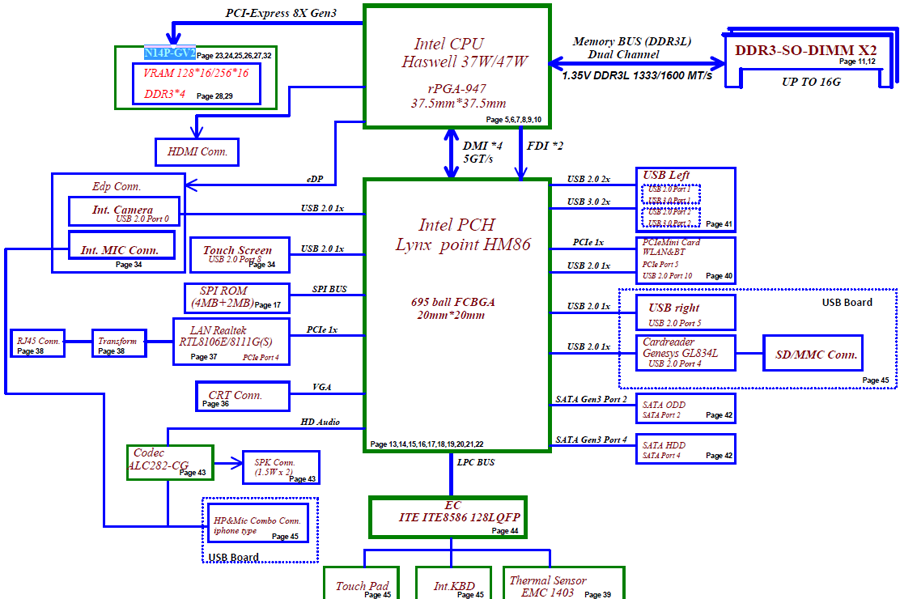

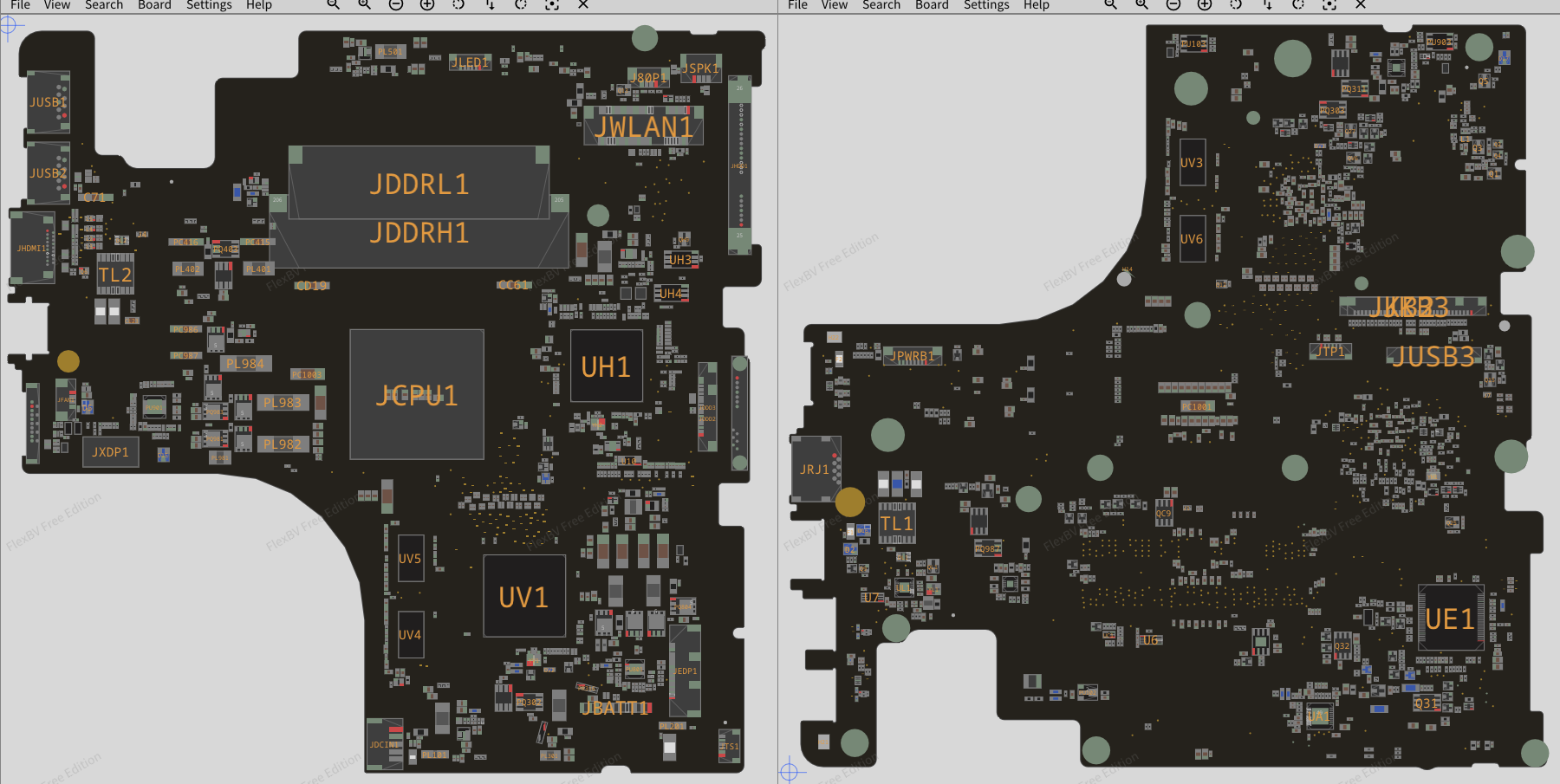

Click on picture to enlarge	Price: US $17.50 Also included: — BoardView file* (* Silkscreen / Searchable PDF file. Not a .BRD file) — Power Sequence Block Diagram — Power Block Diagram Major components: CPU Intel Haswell PCH Intel Lynx Point HM86 GPU: Integrated (UMA)/ N14P-GV2 (DIS) EC: ITE ITE8586 File type : PDF (Searchable) Language : English

Click on picture to enlarge

Price: US $17.50

Also included:

— BoardView file* (* Silkscreen / Searchable PDF file. Not a .BRD file)
— Power Sequence Block Diagram
— Power Block Diagram

Major components:
CPU Intel Haswell
PCH Intel Lynx Point HM86
GPU: Integrated (UMA)/ N14P-GV2 (DIS)
EC: ITE ITE8586

File type : PDF (Searchable)
Language : English

Updated: 22-12-2020
