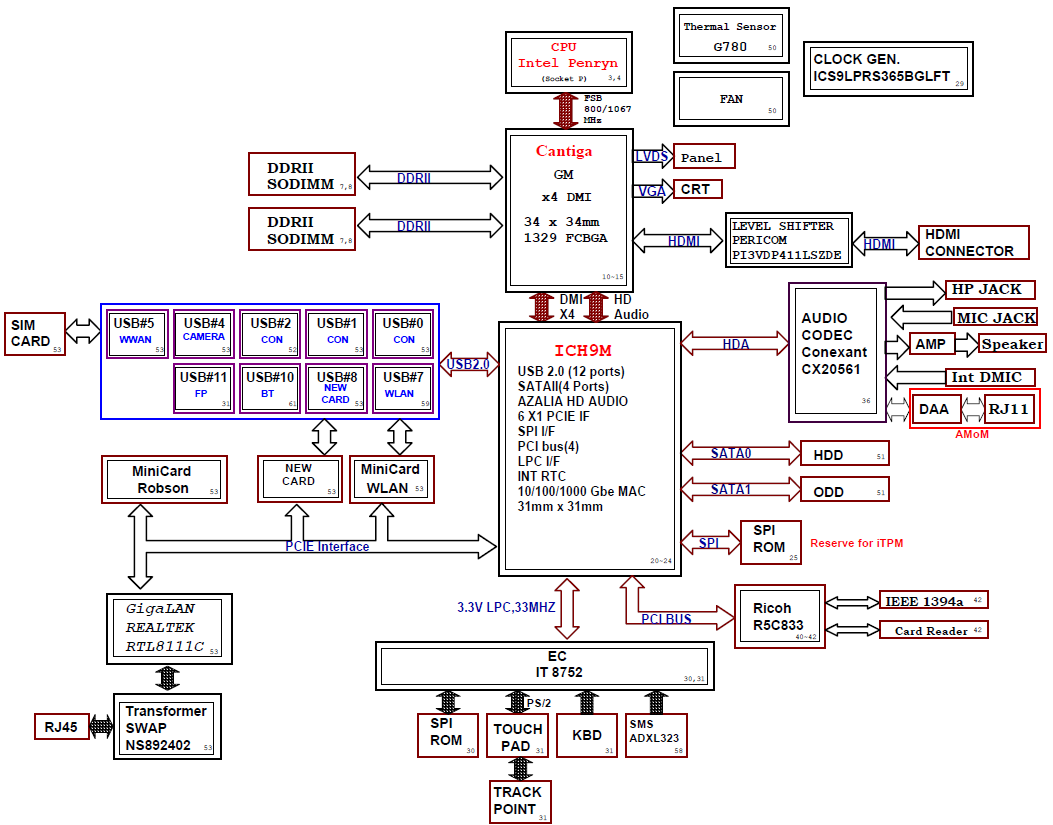

Lenovo SL Series Laptops (ThinkPad) SL300 Laptop (ThinkPad) (UMA GPU), motherboard Schematic diagram

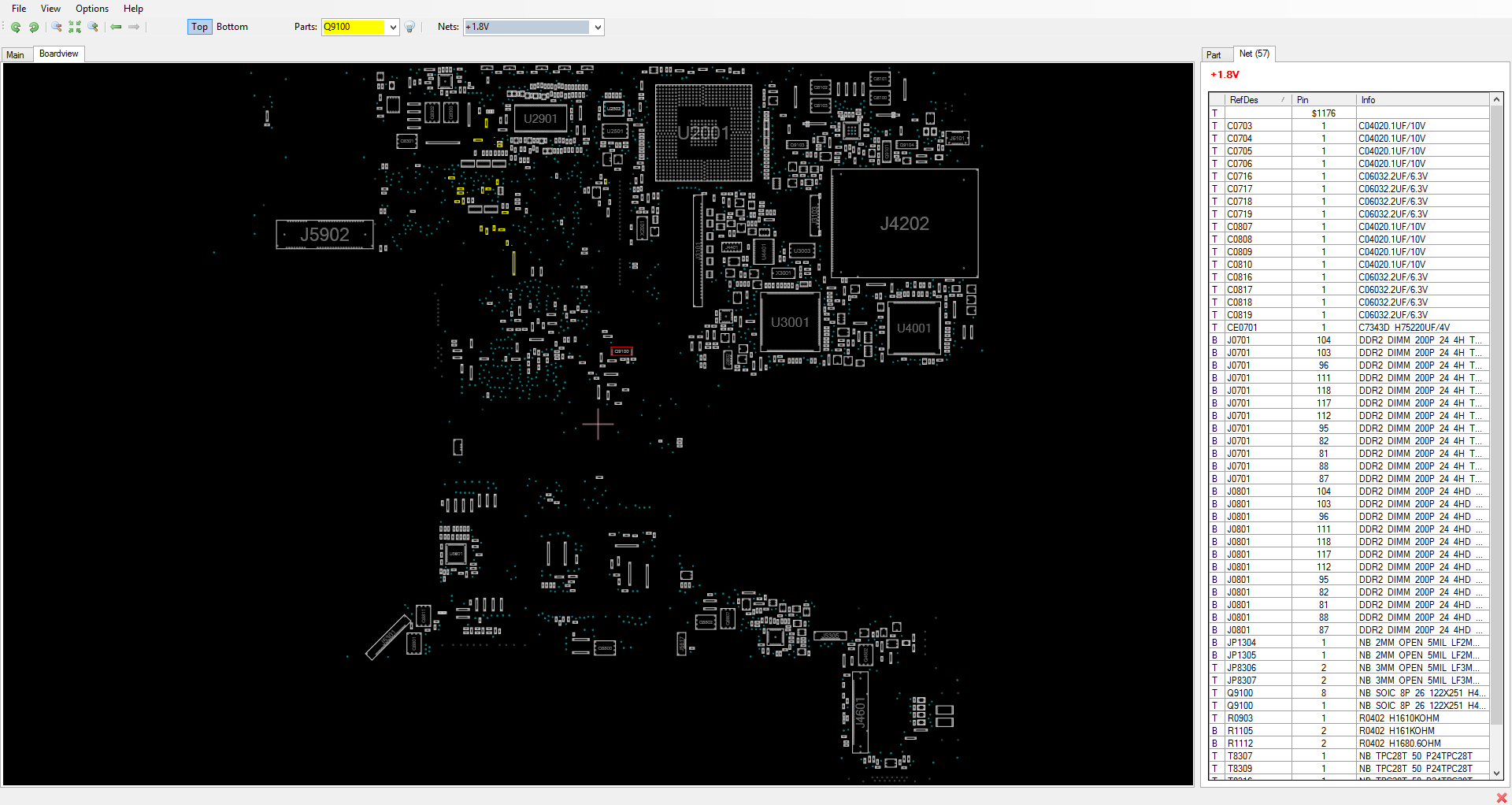

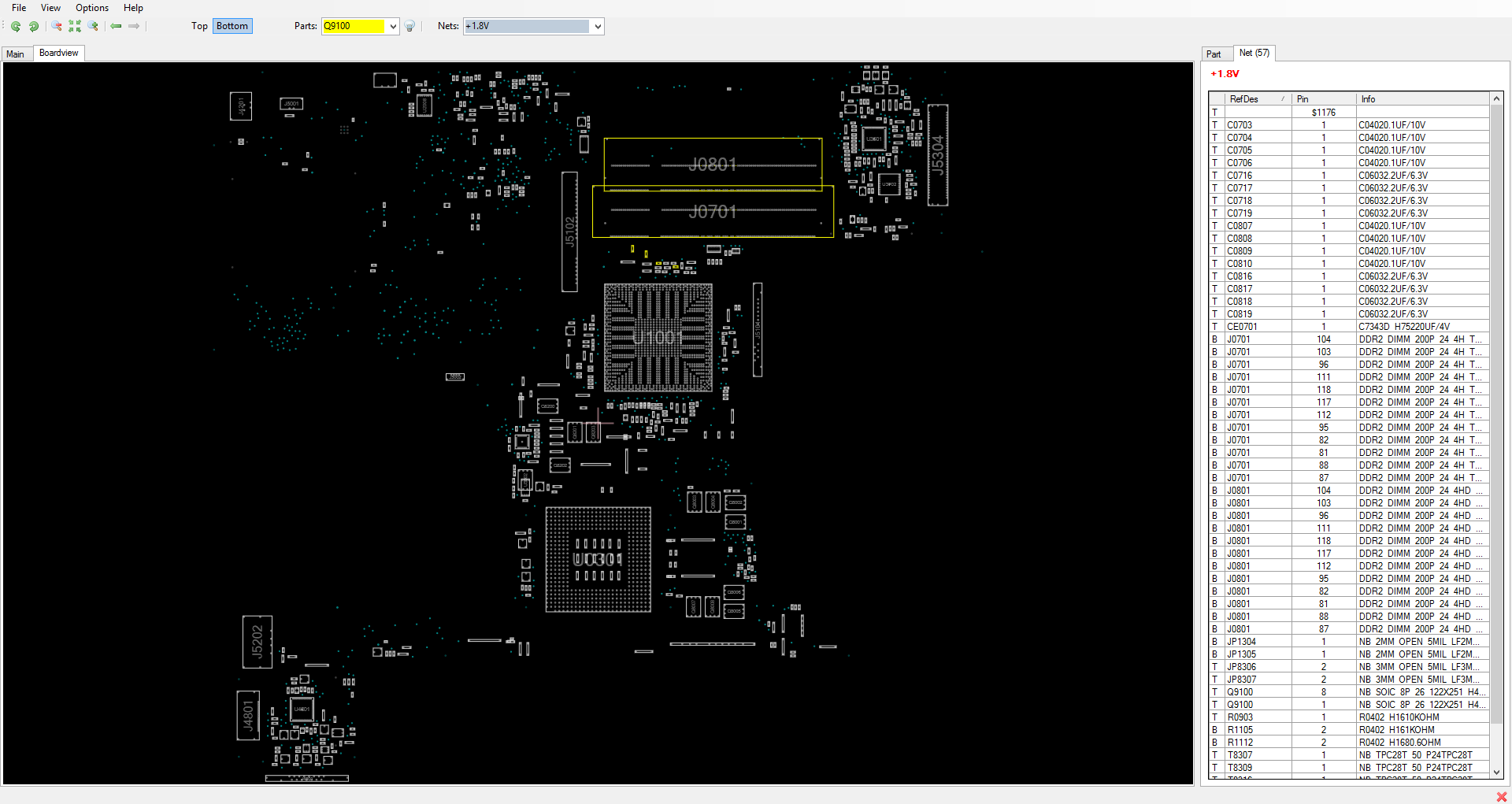

Click on picture to enlarge	Price: US $15.00 Also included: Repair Guide Power Sequence Block diagram Power Block diagram 6 BoardView and 6 BOM (bill of materials) files for MB : R1.0 (PARADE) R1.0 (PERICOM) R1.1 (PARADE) R1.1 (PERICOM) R1.2 (PARADE) R2.0 (PERICOM) BoardView file for IO board R1.0 BoardView and BOM (bill of materials) files for Small board R2.0 The BoardView software (original and alternative) Major components: CPU Intel Penryn NB/SB Intel Cantiga PM / ICH9M GPU: nVidia NB9M-GS (DIS) EC: IT 8752 File type : PDF (Searchable) Language : English

Click on picture to enlarge

Price: US $15.00

Also included:

Repair Guide
Power Sequence Block diagram
Power Block diagram

6 BoardView and 6 BOM (bill of materials) files for MB :
R1.0 (PARADE)
R1.0 (PERICOM)
R1.1 (PARADE)
R1.1 (PERICOM)
R1.2 (PARADE)
R2.0 (PERICOM)

BoardView file for IO board R1.0
BoardView and BOM (bill of materials) files for Small board R2.0

The BoardView software (original and alternative)

Major components:

CPU Intel Penryn
NB/SB Intel Cantiga PM / ICH9M
GPU: nVidia NB9M-GS (DIS)
EC: IT 8752

File type : PDF (Searchable)
Language : English

Updated: 21-12-2018
