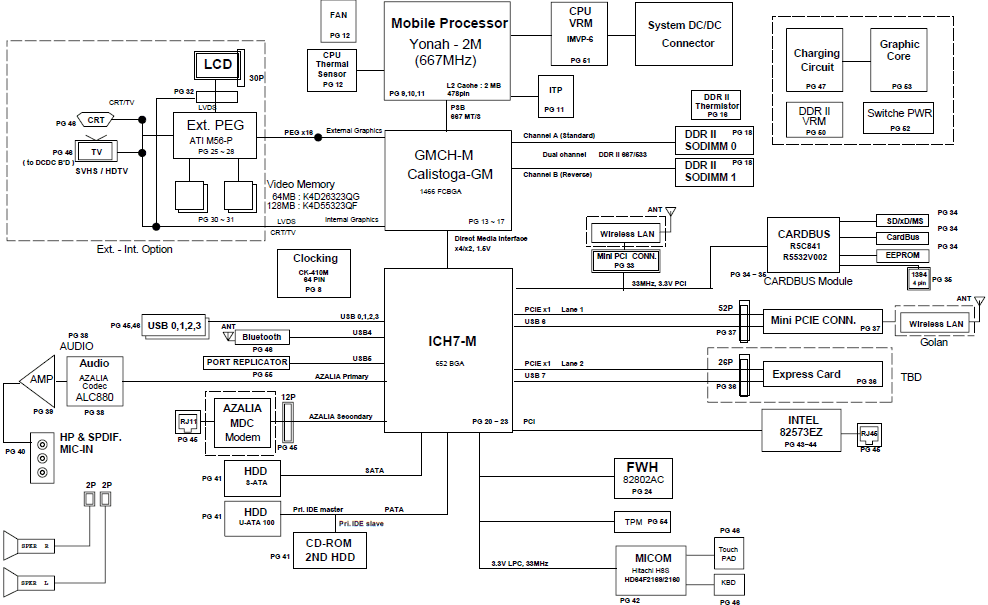

Samsung P-Series NT-P60 (SEDONA PLUS), Motherboard schematic diagram Schematic diagram

Click on picture to enlarge	Price: US $11.25 Model Name : NP-P60, NT-P60 Project name : SEDONA PLUS / SEDONA-Plus / SEDONA+ / SEDONA P /SEDONA-B Known PCB Codes: BA41-00697A Known PBA Names: BA92-04408A CPU : Intel Yonah 667 Chip Set : Intel 945GM/945PM + ICH7-M/ICH7-M DH Video : Intel GMA 950 / ATi Mobility Radeon X1600 ATi Mobility Radeon X1700 / ATi Mobility Radeon X1400 File type : PDF Language : English

Click on picture to enlarge

Price: US $11.25

Model Name : NP-P60, NT-P60

Project name : SEDONA PLUS / SEDONA-Plus / SEDONA+ / SEDONA P /SEDONA-B
Known PCB Codes: BA41-00697A
Known PBA Names: BA92-04408A

CPU : Intel Yonah 667
Chip Set : Intel 945GM/945PM + ICH7-M/ICH7-M DH
Video : Intel GMA 950 / ATi Mobility Radeon X1600
ATi Mobility Radeon X1700 / ATi Mobility Radeon X1400

File type : PDF
Language : English

Updated: 30-01-2010
