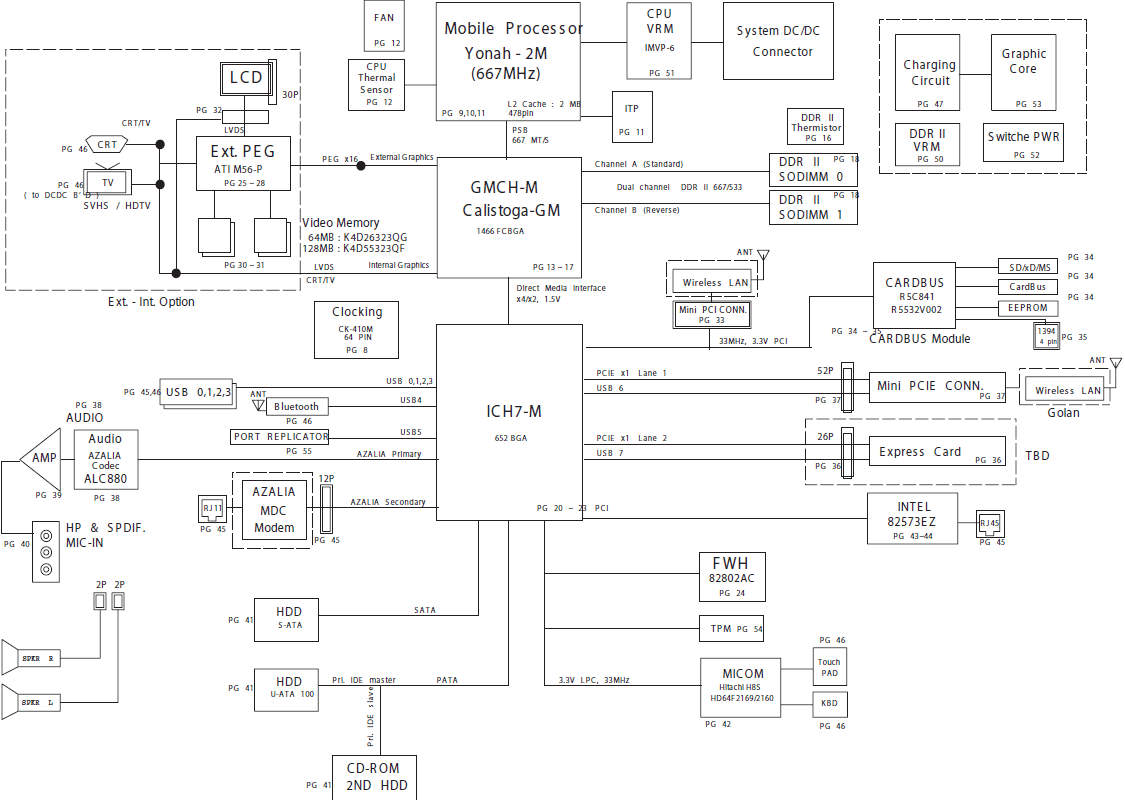

Samsung P-Series NT-P60 (SEDONA), Motherboard schematic diagram Schematic diagram

Click on picture to enlarge	Price: US $11.25 Model Name : NP-P60, NT-P60 Project name : SEDONA Known PCB Codes: Known PBA Names: BA92-04120A BA92-04121A BA92-04122A BA92-04182A BA92-04120A BA92-04121A BA92-04122A BA92-04408A CPU : Intel Yonah Single-core / Dual-core Chip Set : Intel 945GM/945PM + ICH7-M/ICH7-M DH Video : Intel GMA 950 / ATi Mobility Radeon X1600 ATi Mobility Radeon X1800 / ATi Mobility Radeon X1400 File type : PDF Language : English

Click on picture to enlarge

Price: US $11.25

Model Name : NP-P60, NT-P60

Project name : SEDONA
Known PCB Codes:
Known PBA Names: BA92-04120A BA92-04121A BA92-04122A
BA92-04182A BA92-04120A BA92-04121A
BA92-04122A BA92-04408A

CPU : Intel Yonah Single-core / Dual-core
Chip Set : Intel 945GM/945PM + ICH7-M/ICH7-M DH
Video : Intel GMA 950 / ATi Mobility Radeon X1600
ATi Mobility Radeon X1800 / ATi Mobility Radeon X1400

File type : PDF
Language : English

Updated: 29-01-2010
