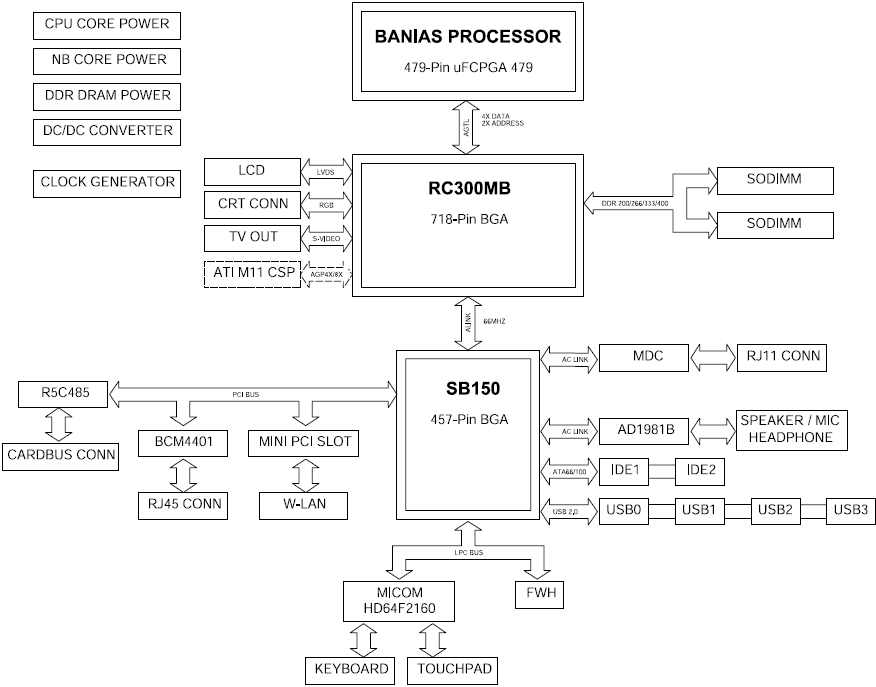

Samsung P-Series NP28, Motherboard schematic diagram Schematic diagram

Click on picture to enlarge	Price: US $15.00 Project name : OSCAR Known PCB Codes: BA41-00438A BA41-00464A Known PBA Names: BA92-02744B BA92-02744A BA92-03528A BA92-03126A BA92-02976A BA92-02745B CPU : Intel PM BANIAS Chip Set : ATI RC300MD + ATI SB150 Video : Integrated GFX(ATI Mobility 9000 IGP) File type : PDF Language : English

Click on picture to enlarge

Price: US $15.00

Project name : OSCAR
Known PCB Codes: BA41-00438A BA41-00464A
Known PBA Names: BA92-02744B BA92-02744A BA92-03528A
BA92-03126A BA92-02976A BA92-02745B

CPU : Intel PM BANIAS
Chip Set : ATI RC300MD + ATI SB150
Video : Integrated GFX(ATI Mobility 9000 IGP)

File type : PDF
Language : English

Updated: 29-01-2010
