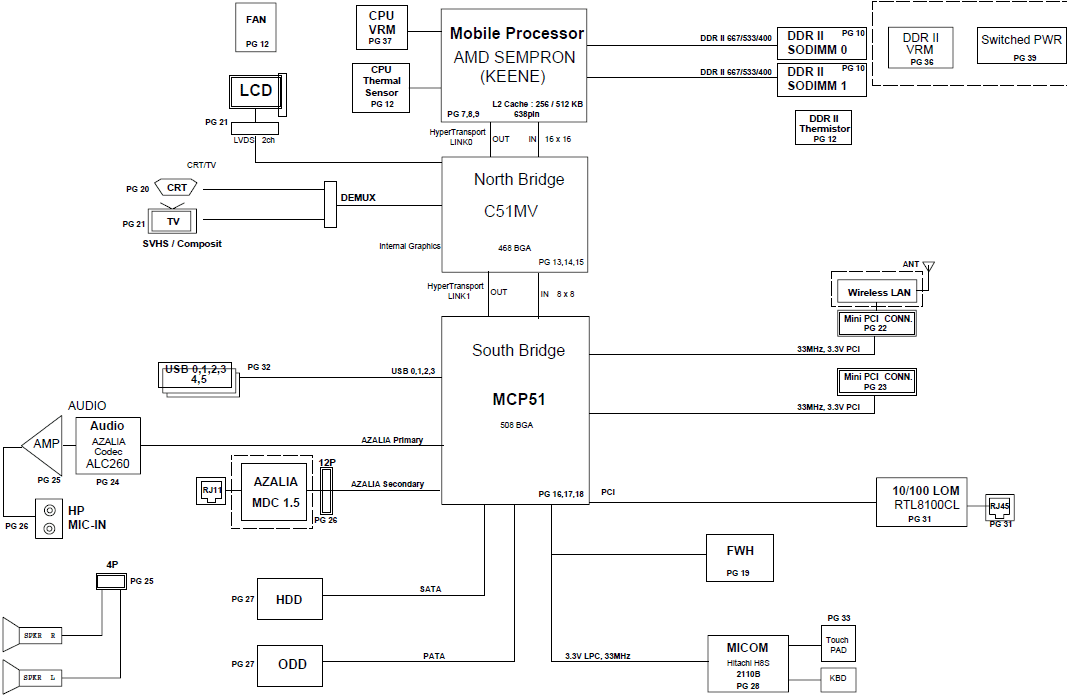

Samsung G-Series NP-G10, Motherboard schematic diagram Schematic diagram

Click on picture to enlarge	Price: US $11.25 Model name : NP-G10,NT-G10 Project name : MONACO Known PCB Codes: BA41-00687A Known PBA Names: BA92-04366A CPU : AMD Mobile Sempron / Turion 64x2 Chip Set : nVIDIA C51MV & MCP51 Video : nVIADIA GF6100 File type : PDF Language : English

Click on picture to enlarge

Price: US $11.25

Model name : NP-G10,NT-G10
Project name : MONACO
Known PCB Codes: BA41-00687A
Known PBA Names: BA92-04366A

CPU : AMD Mobile Sempron / Turion 64x2
Chip Set : nVIDIA C51MV & MCP51
Video : nVIADIA GF6100

File type : PDF
Language : English

Updated: 29-01-2010
