Acer Aspire 5943G, Laptop motherboard Schematic diagram
|
|
Price: US $15.00 * Power On Sequence diagram Major components CPU : Intel Arrandale / Clarksfield (UMA/DIS) Chipset : Intel Ibex Peak-M KBC(Embeded Controller) : ENE KB926 Clock Generator : IDT: 9LRS3199AKLFT / SILEGO: SLG8SP587 Audio Codec : ALC669X LAN Controller : BCM57780 Card Reader : JMB380 ADP3212 ADP3211 APW7138 APW7138 G5603 G5603 APL5913 MP2121 APL5336 RT8206 ISL6251 File tipe : PDF Language : English |
|---|

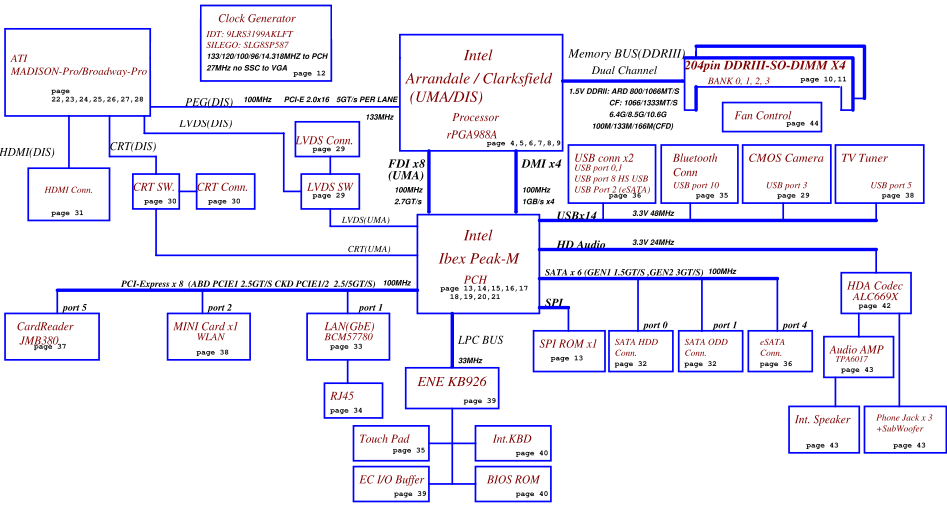

Click on picture to enlarge
