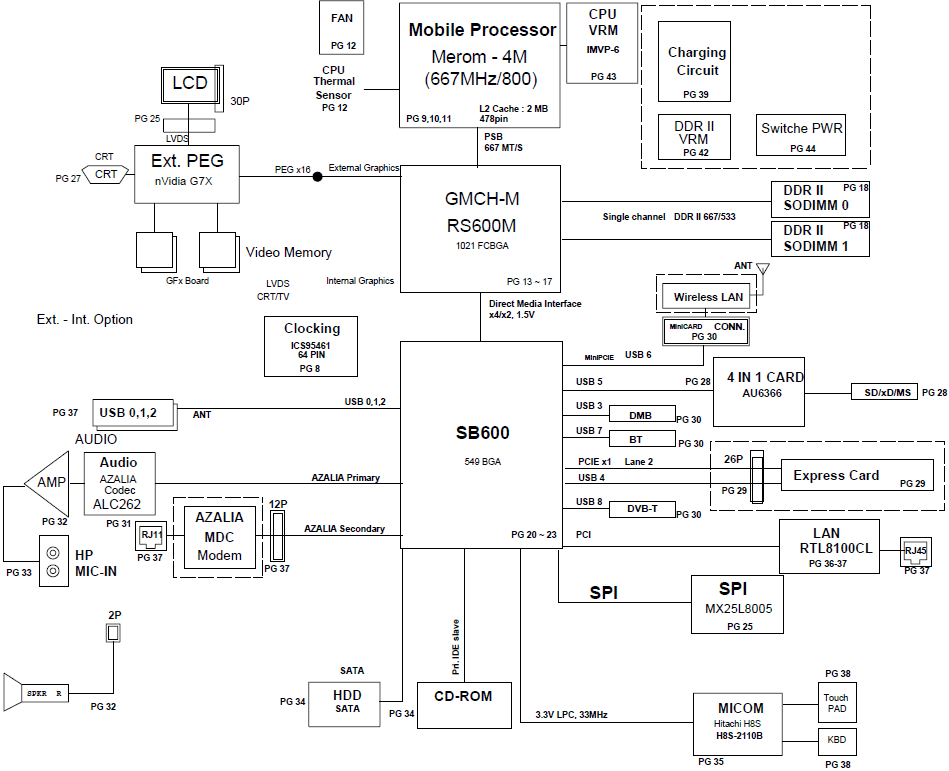

Samsung R-Series NP-R20P (plus), Motherboard schematic diagram Schematic diagram

Click on picture to enlarge	Price: US $11.25 Model : NP-R20plus, NP-R20P, NP-R20 PLUS, NP-R20+ Project name : HAINAN-3(EXT) Known PCB Codes: BA41-00809A BA41-00810A Known PBA Names: BA92-04483A BA92-04641A CPU : Intel Santarosa Merom Chip Set : AMD(ATI) RS600 & SB600 Video : External (M64S) File type : PDF Language : English

Click on picture to enlarge

Price: US $11.25

Model : NP-R20plus, NP-R20P, NP-R20 PLUS, NP-R20+
Project name : HAINAN-3(EXT)
Known PCB Codes: BA41-00809A BA41-00810A
Known PBA Names: BA92-04483A BA92-04641A

CPU : Intel Santarosa Merom
Chip Set : AMD(ATI) RS600 & SB600
Video : External (M64S)

File type : PDF
Language : English

Updated: 30-01-2010
