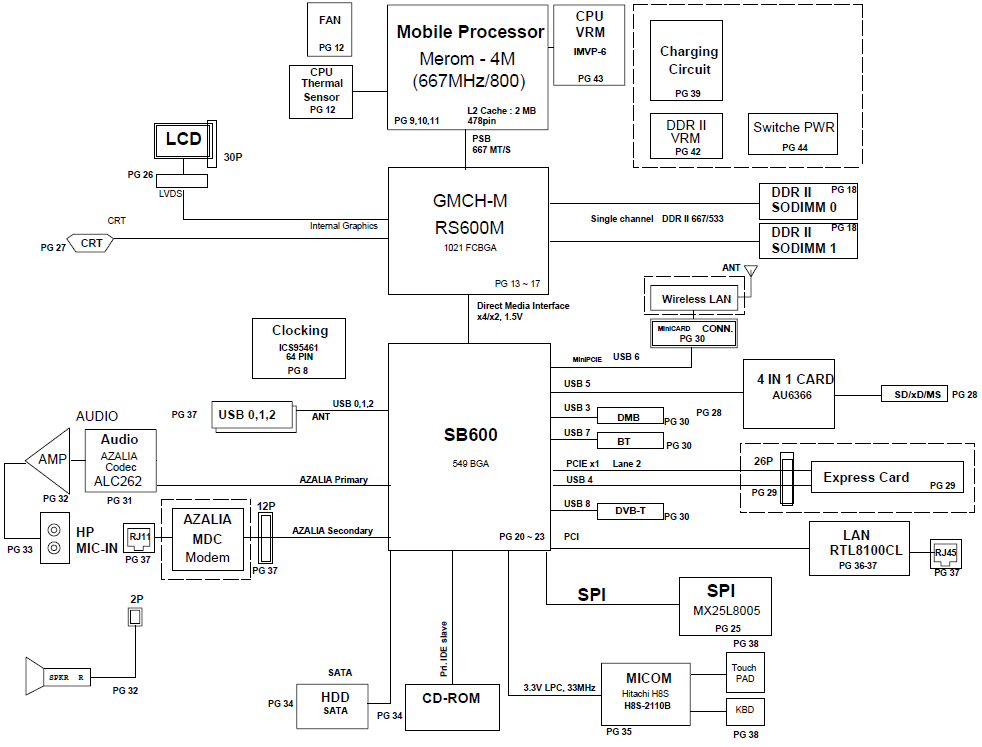

Samsung R-Series NP-R18, Motherboard schematic diagram Schematic diagram

Click on picture to enlarge	Price: US $11.25 Project name : HAINAN-2 Known PCB Codes: BA41-*****A Known PBA Names: BA92-04518A BA92-04460A BA92-04518A CPU : Intel Merom Chip Set : AMD(ATI) RS600M & SB600 Video : Internal File type : PDF Language : English

Click on picture to enlarge

Price: US $11.25

Project name : HAINAN-2
Known PCB Codes: BA41-*****A
Known PBA Names: BA92-04518A BA92-04460A BA92-04518A

CPU : Intel Merom
Chip Set : AMD(ATI) RS600M & SB600
Video : Internal

File type : PDF
Language : English

Updated: 28-01-2010
