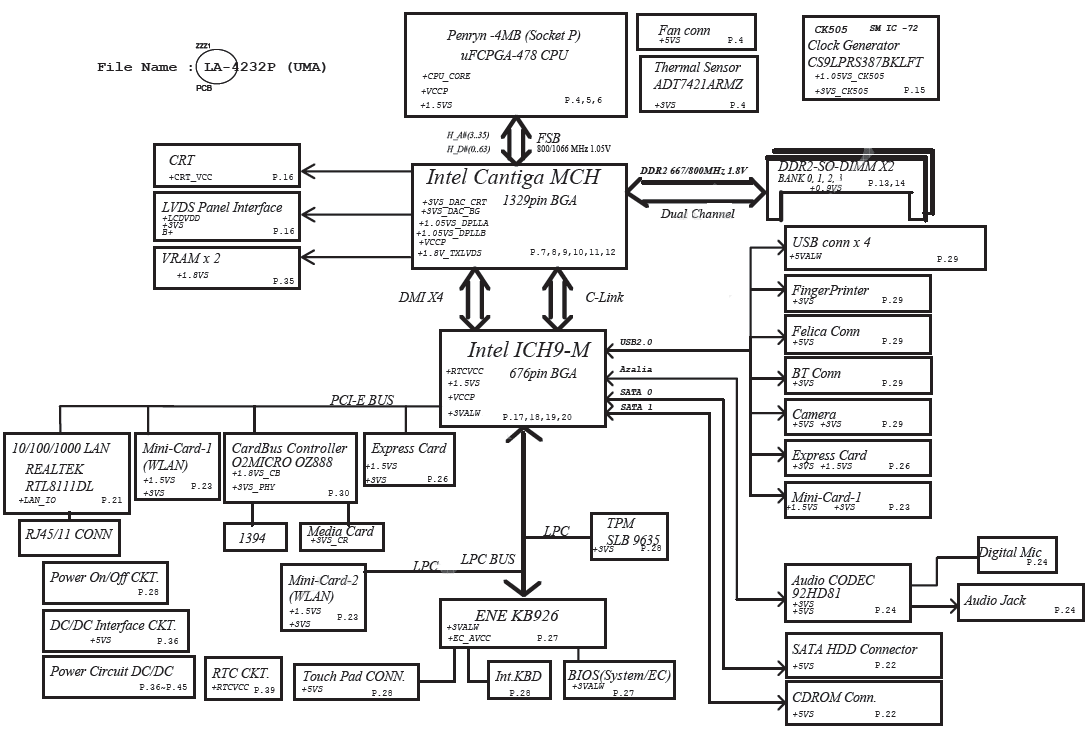

Compal OEM LA-4232P KAL80 (UMA Gfx), Laptop motherboard Schematic diagram
Click on picture to enlarge |
Included: *Power Up Sequence Diagram Major components CPU :Intel Penryn-4Mb (Socket P) Chipset :Intel Cantiga / ICH-9M VGA :UMA Clock Generator :CS9LPRS387BKLFT Thermal Sensor :ADT7421ARMZ Audio :92HD81 KBC(Embeded Controller),SIO :ENE KB926 LAN Controller :RTL8111DL CardBUS/1394/Cardreader Contr.:O2MICRO OZ888 <Power System> ISL6266 APL5913 APL5331 ISL6228 ISL6228 ISL6237 BQ24751 File tipe : PDF Language : English |
---|
