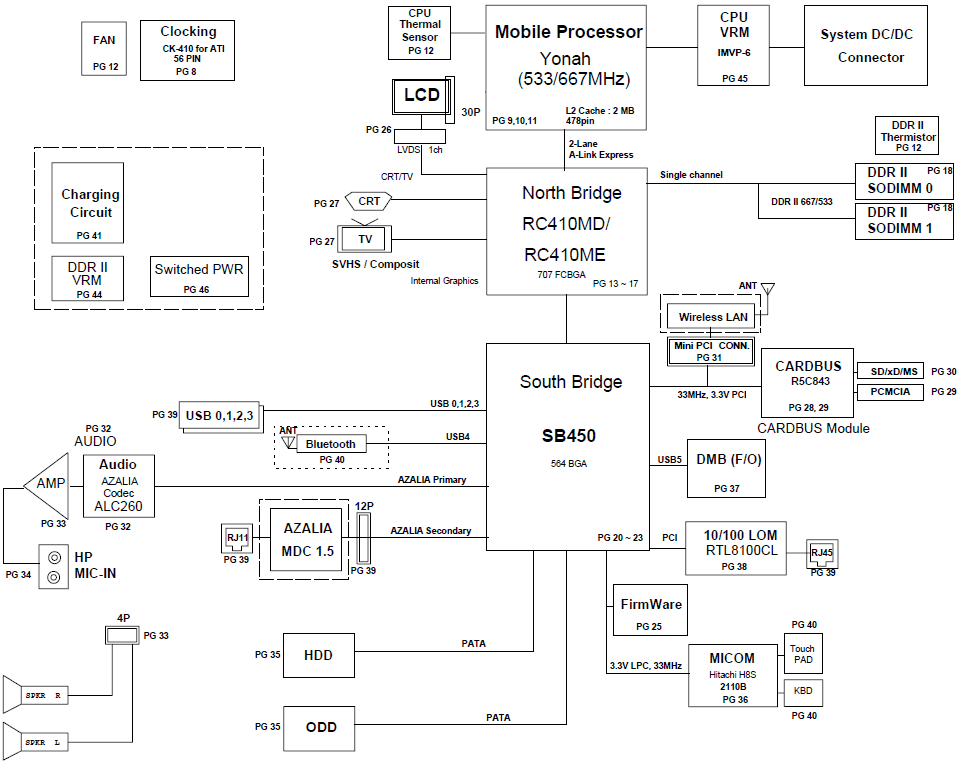

Samsung R-Series NP-R41, Motherboard schematic diagram Schematic diagram

Click on picture to enlarge	Price: US $11.25 Project name : FIRENZE II / FIRENZE-2 Known PCB Codes: BA41-00659A BA41-00671A Known PBA Names: BA92-04422A BA92-04476A BA92-04186A BA92-04379A BA92-04425A BA92-04474A BA92-04282A BA92-04473A CPU : Intel Yonah (533/667MHz) Chip Set : AMD(ATI)RC410MD/RC410ME & SB450 Video : Internal File type : PDF Language : English

Click on picture to enlarge

Price: US $11.25

Project name : FIRENZE II / FIRENZE-2
Known PCB Codes: BA41-00659A BA41-00671A
Known PBA Names: BA92-04422A BA92-04476A BA92-04186A
BA92-04379A BA92-04425A BA92-04474A
BA92-04282A BA92-04473A

CPU : Intel Yonah (533/667MHz)
Chip Set : AMD(ATI)RC410MD/RC410ME & SB450
Video : Internal

File type : PDF
Language : English

Updated: 26-01-2010
