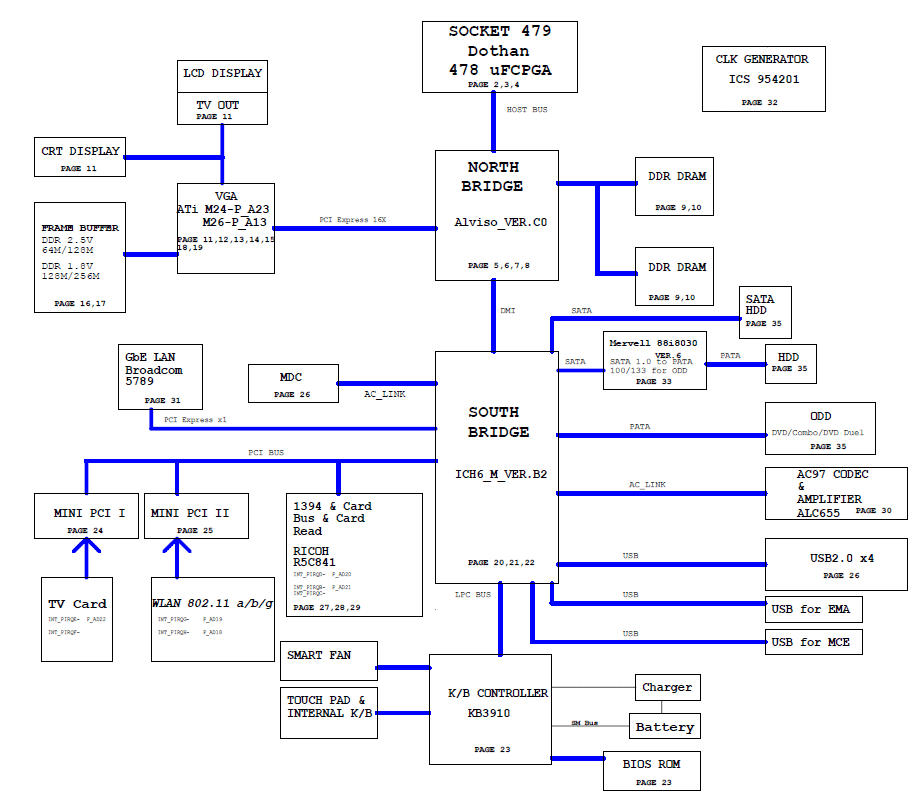

ECS-Uniwill OEM G600, Motherboard Schematic diagram
Click on picture to enlarge |
Major components CPU :Intel PM (Dothan) Chipset :Intel Alviso PM // ICH6_M Video: DIS (ATi M24-P /ATi M26-P) KBC(EC),SIO : KB3910 Known motherboard part numbers: 15-F53-011000 15-F53-010050 15-F53-012000 File type : PDF Language : English |
---|
