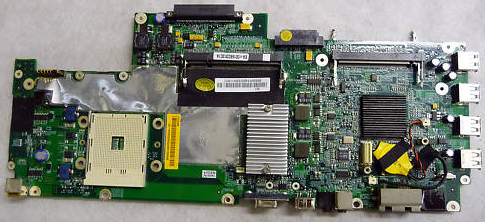

ECS-Uniwill OEM 331, Laptop Motherboard Schematic diagram
Click on picture to enlarge |

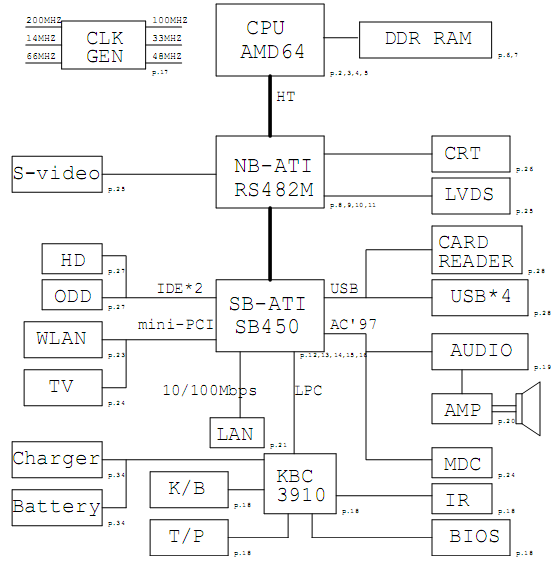

Major components: CPU : AMD64 Clock Generator : ICS951412 Chipset : ATI RS482M // ATI SB450 Video: UMA Audio : ALC655 + APA2020 KBC(Embeded Controller),SIO :KB3910 LAN Controller :RTL8100C Card Bus, etc. : <Power System> ASIC8M AMS1117 GS2928Z25 GS2928Z25 MB3887 MAX1999 MAX1544 MAX1714B RT9173B RT9173A MAX1714B MAX1714B GS1581DF This schematic diagram is apllicable to motherboards : 15-F64-011000 15-F64-012000 15-F64-012001 File type : PDF Language : English |
---|
