Alienware Area-51 m7700 (AMD CPU), Laptop Motherboard Schematic diagram

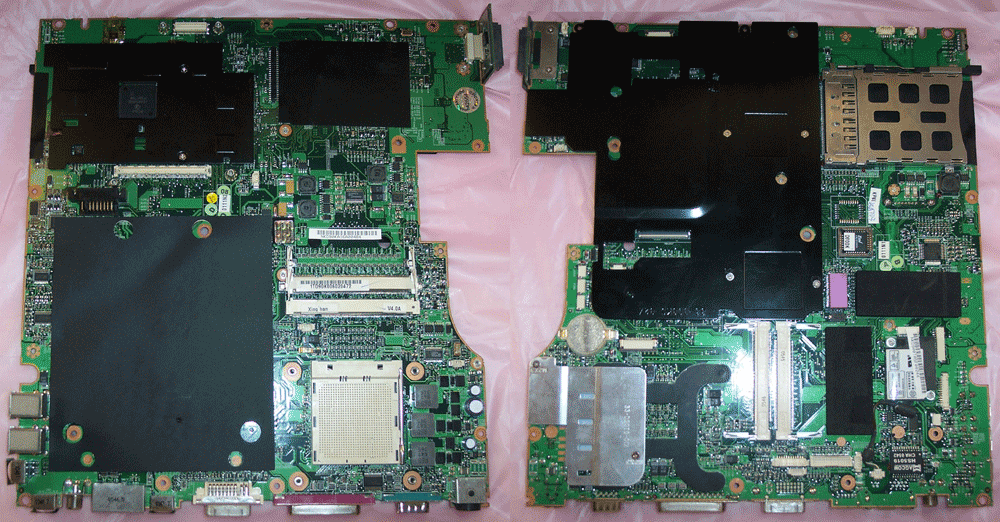

Click on picture to enlarge	Price: US $15.00 Included : Service manual *VGA Card schematic diagram (41-E275, NV41(GeForce Go6800) 256bit, 8Mx32bit DDR1 (350Mhz)) Major components: CPU : AMD Athlon 64 Chipset :VIA K8T890 / VIA VT8237R Video: Discrete VGA Card KBC(Embeded Controller),SIO :H8/2149 , NS87393 File type : PDF Language : English

Click on picture to enlarge

Price: US $15.00

Included :

*Service manual
**VGA Card schematic diagram (41-E275, NV41(GeForce Go6800) 256bit, 8Mx32bit DDR1 (350Mhz))

Major components:

CPU : AMD Athlon 64
Chipset :VIA K8T890 / VIA VT8237R
Video: Discrete VGA Card
KBC(Embeded Controller),SIO :H8/2149 , NS87393

File type : PDF
Language : English

Updated: 14-12-2010
