Arima (Flextronics) OEM B7, Laptop Motherboard Schematic diagram

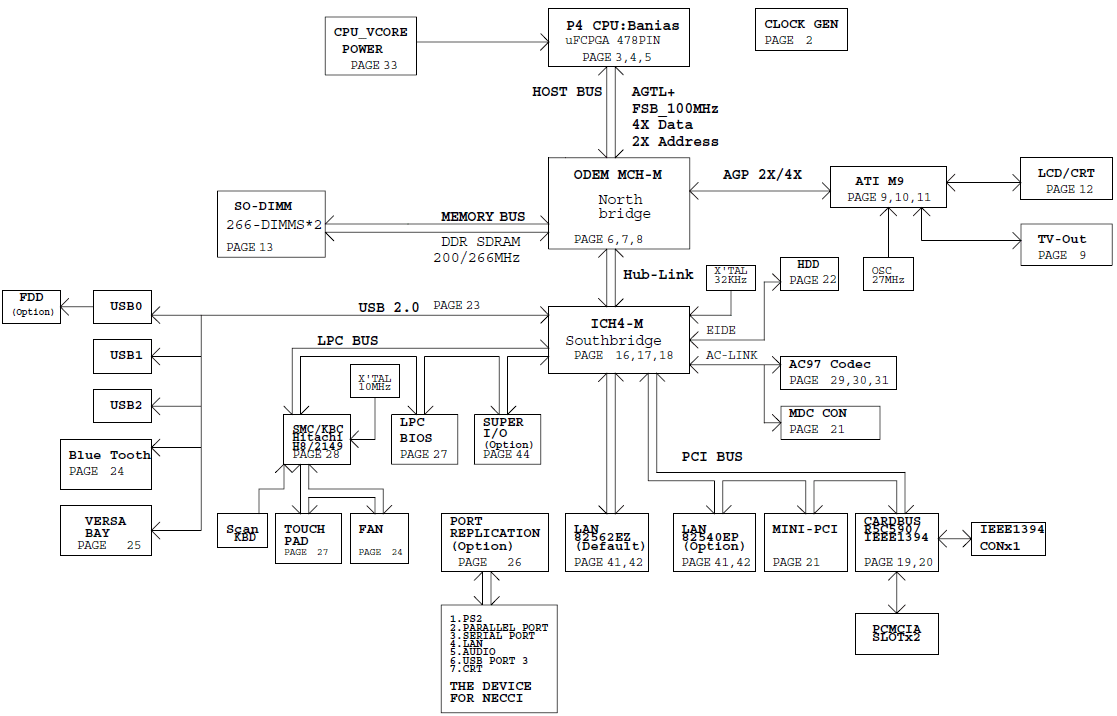

Click on picture to enlarge	Price: US $11.25 Major components CPU : Intel PM (Banias) Chipset : Intel ODEM MCH-M // ICH4-M Video: ATI M9 Clock Generator :ICS950810CGT Audio Codec : AD1981B Audio Amplifier:LM4866MTE KBC(Embeded Controller),SIO : H8/2149, (PC87391) LAN Controller :82562EZ (82540EP) Card Bus, etc. :R5C590 <Power System> ADP3205 + 2x ADP3415 LM2645 SC1485 SC1486 MB3887 This schematic diagram is applicable to motherboard p/n : 40-A04000-D000 (40GAB4000-D000) 40-A04000-A100 (40GAB4000-A100) and other : 40-A040xx-yxxx (40GAB52xx-yxxx) - x=digit , y=letter(from A to F) File type : PDF Language : English

Click on picture to enlarge

Price: US $11.25

Major components

CPU : Intel PM (Banias)
Chipset : Intel ODEM MCH-M // ICH4-M
Video: ATI M9
Clock Generator :ICS950810CGT
Audio Codec : AD1981B
Audio Amplifier:LM4866MTE
KBC(Embeded Controller),SIO : H8/2149, (PC87391)
LAN Controller :82562EZ (82540EP)
Card Bus, etc. :R5C590

<Power System>

ADP3205 + 2x ADP3415
LM2645
SC1485
SC1486
MB3887

This schematic diagram is applicable to motherboard p/n :
40-A04000-D000 (40GAB4000-D000)
40-A04000-A100 (40GAB4000-A100)
and other :
40-A040xx-yxxx (40GAB52xx-yxxx) - x=digit , y=letter(from A to F)

File type : PDF
Language : English

Updated: 14-12-2010
