Clevo T-series T800V, Laptop Motherboard Schematic diagram

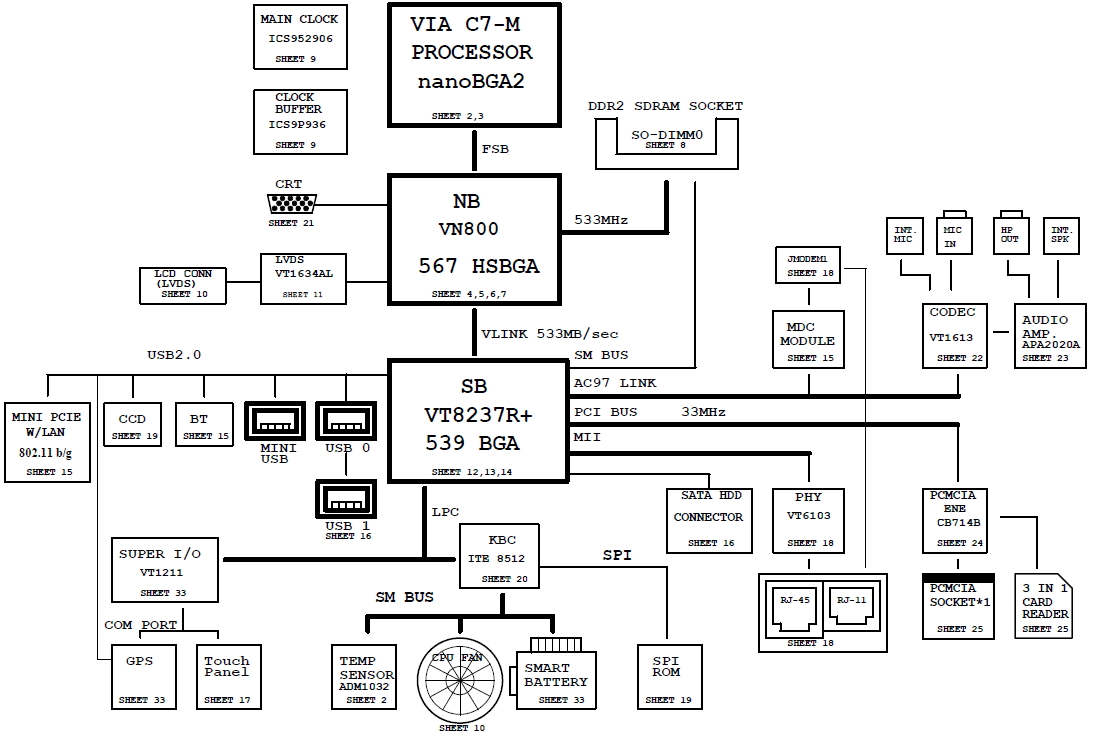

Click on picture to enlarge	Price: US $15.00 Major components CPU : VIA C7-M Chipset : VIA VN800 / VIA VT8237R+ VGA : UMA KBC(Embeded Controller),SIO : ITE8512, VT1211 Known motherboard part numbers : 6-7P-T80V0-D02 , 6-71-T80V0-D02, T800VMB-0D File type : PDF Language : English

Click on picture to enlarge

Price: US $15.00

Major components

CPU : VIA C7-M
Chipset : VIA VN800 / VIA VT8237R+
VGA : UMA
KBC(Embeded Controller),SIO : ITE8512, VT1211

Known motherboard part numbers : 6-7P-T80V0-D02 , 6-71-T80V0-D02, T800VMB-0D

File type : PDF
Language : English

Updated: 09-12-2010
