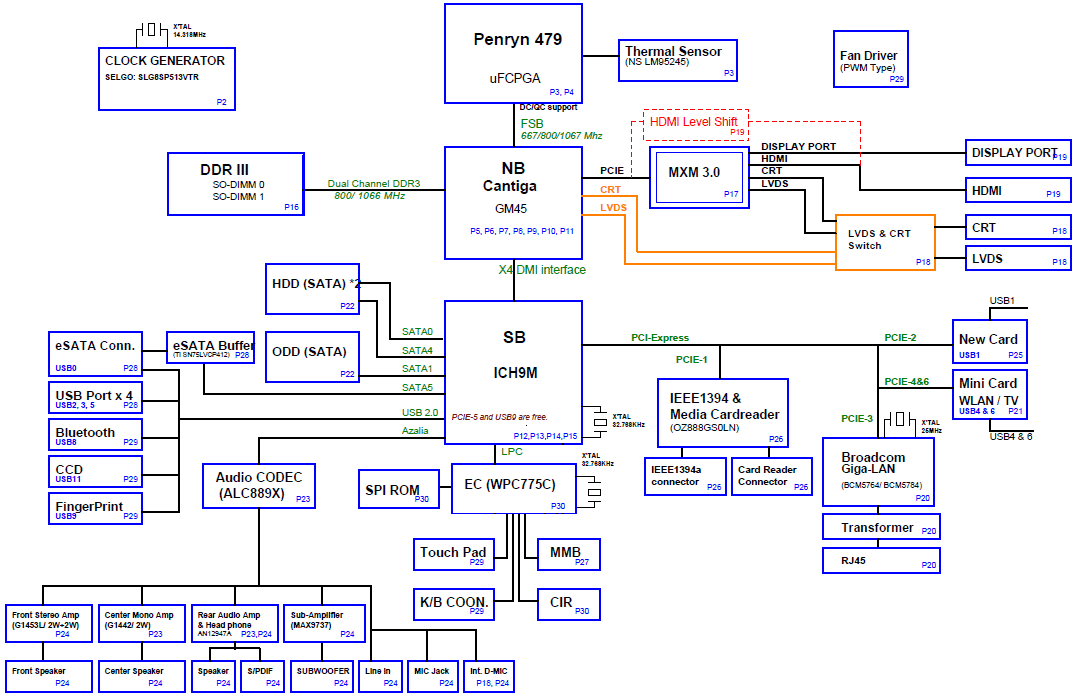

Acer Aspire 8935, Laptop Motherboard Schematic diagram

Click on picture to enlarge	Price: US $15.00 Major components CPU :Intel Penryn Chipset :Intel Cantiga / ICH9M VGA :Switchable UMA/DIS (MXM 3.0 VGA Card) KBC(Embeded Controller),SIO :Winbond WPC775C File tipe : PDF Language : English

Click on picture to enlarge

Price: US $15.00

Major components

CPU :Intel Penryn
Chipset :Intel Cantiga / ICH9M
VGA :Switchable UMA/DIS (MXM 3.0 VGA Card)
KBC(Embeded Controller),SIO :Winbond WPC775C

File tipe : PDF
Language : English

Updated: 05-12-2010
