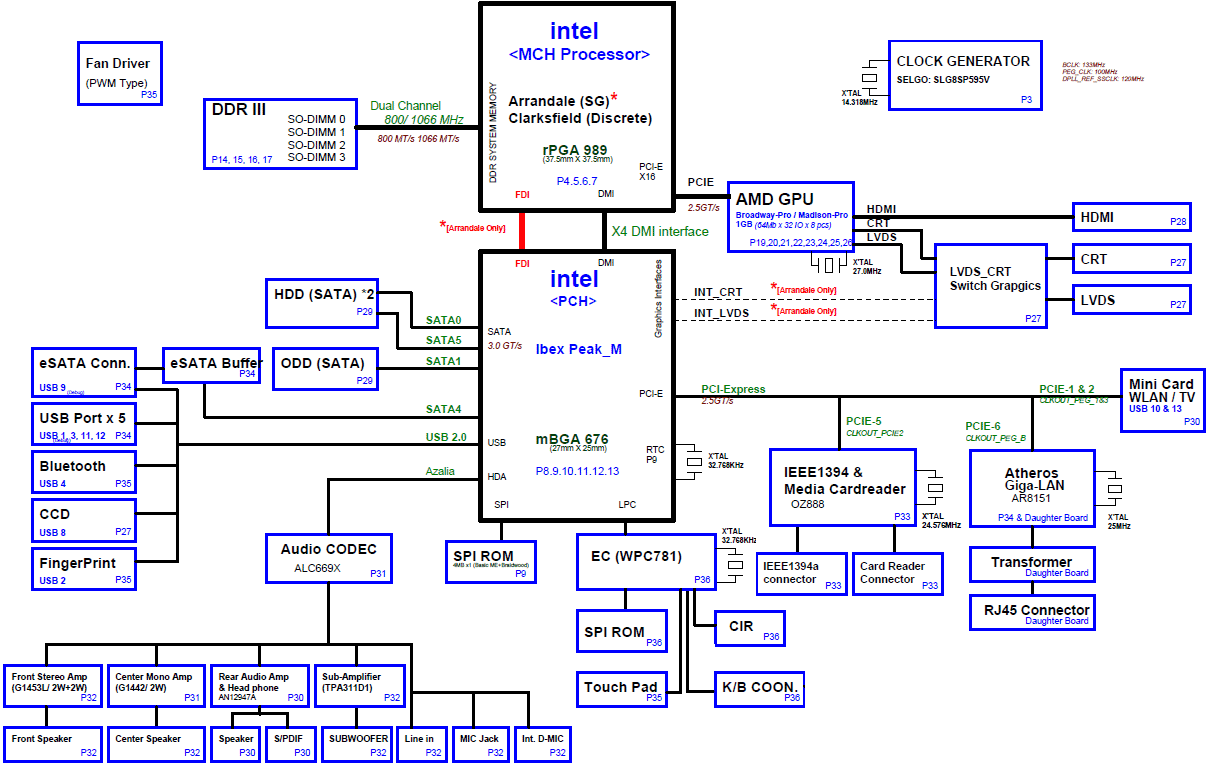

Acer Aspire 8943G, Laptop Motherboard Schematic diagram

Click on picture to enlarge	Price: US $17.25 Major components CPU :Intel Arrandale / Clarksfield Chipset :Intel PCH Ibex Peak-M VGA :Switchable or DIS (Broadway-Pro / Madison-Pro) KBC(Embeded Controller),SIO :Winbond WPC781 File tipe : PDF Language : English

Click on picture to enlarge

Price: US $17.25

Major components

CPU :Intel Arrandale / Clarksfield
Chipset :Intel PCH Ibex Peak-M
VGA :Switchable or DIS (Broadway-Pro / Madison-Pro)
KBC(Embeded Controller),SIO :Winbond WPC781

File tipe : PDF
Language : English

Updated: 05-12-2010
