Packard Bell EasyNote LX86 Series, Laptop Motherboard Schematic diagram

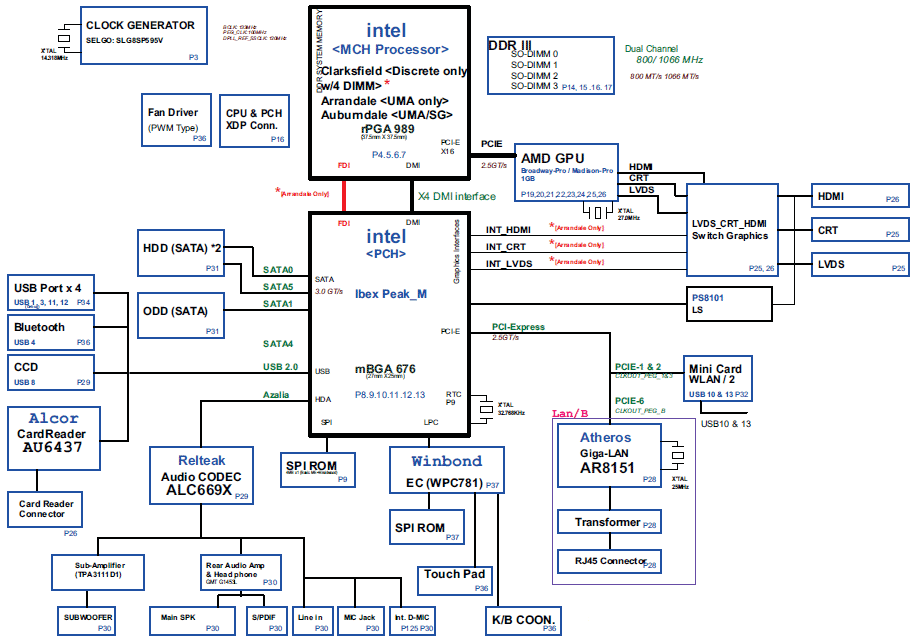

Click on picture to enlarge	Price: US $17.25 Major components CPU :Intel Arrandale / Auburndale / Clarksfield Chipset :INTEL Ibex Peak-M Video: UMA/DIS/Switchable (AMD Broadway-Pro / Madison-Pro) KBC(Embeded Controller),SIO :Winbond WPC781 File type : PDF Language : English

Click on picture to enlarge

Price: US $17.25

Major components

CPU :Intel Arrandale / Auburndale / Clarksfield
Chipset :INTEL Ibex Peak-M
Video: UMA/DIS/Switchable (AMD Broadway-Pro / Madison-Pro)
KBC(Embeded Controller),SIO :Winbond WPC781

File type : PDF
Language : English

Updated: 03-12-2010
