Panasonic Toughbook CF-74, Laptop Motherboard Schematic diagram

Click on picture to enlarge	Price: US $22.50 This is the Motherboard Schematic Diagram and Service Manual for Panasonic ToughtBook CF-74 (Intel Calistoga 945GM / ICH7M / UMA Gfx) Major components: CPU : Intel Core Duo Clock Generator : ICS9LPRS228CKLFT Chipset :Intel Calistoga 945GM / ICH7M Video: UMA LAN: Marvell EC(KBC)/SIO :Renesas M306KA / Winbond PC87381 Audio codec: Sigmatel STAC9200 CardBus controller : Ricoh R5C811A/R5C812A Touch Panel controller (USB Interface Controller): Fujitsu NC41120-0018 VCore: LM27292SQX VCCP/2.5V : LTC3728 1.8V/1.5V/0.9V : LTC3728 3.3V/5.0V : LTC3728 Charger : LTC4008 File type : PDF Language : English The Service Manual contains : 1. Specifications 2. Names and Functions of Parts 3. Block Diagram 4. Diagnosis Procedure 5. Power-On Self Test (Boot Check) 6. List of Error Codes <Only when the port replicator is connected> 7. Diagnostic Test 8. Self Diagnosis Test 9. Wiring Connection Diagram 10. Disassembly/Reassembly 11. Exploded View 12. Replacement Parts List

Click on picture to enlarge

Price: US $22.50

This is the Motherboard Schematic Diagram and Service Manual for
Panasonic ToughtBook CF-74 (Intel Calistoga 945GM / ICH7M / UMA Gfx)

Major components:

CPU : Intel Core Duo
Clock Generator : ICS9LPRS228CKLFT
Chipset :Intel Calistoga 945GM / ICH7M
Video: UMA
LAN: Marvell
EC(KBC)/SIO :Renesas M306KA / Winbond PC87381
Audio codec: Sigmatel STAC9200
CardBus controller : Ricoh R5C811A/R5C812A
Touch Panel controller (USB Interface Controller): Fujitsu NC41120-0018

VCore: LM27292SQX
VCCP/2.5V : LTC3728
1.8V/1.5V/0.9V : LTC3728
3.3V/5.0V : LTC3728
Charger : LTC4008

File type : PDF
Language : English

The Service Manual contains :

1. Specifications
2. Names and Functions of Parts

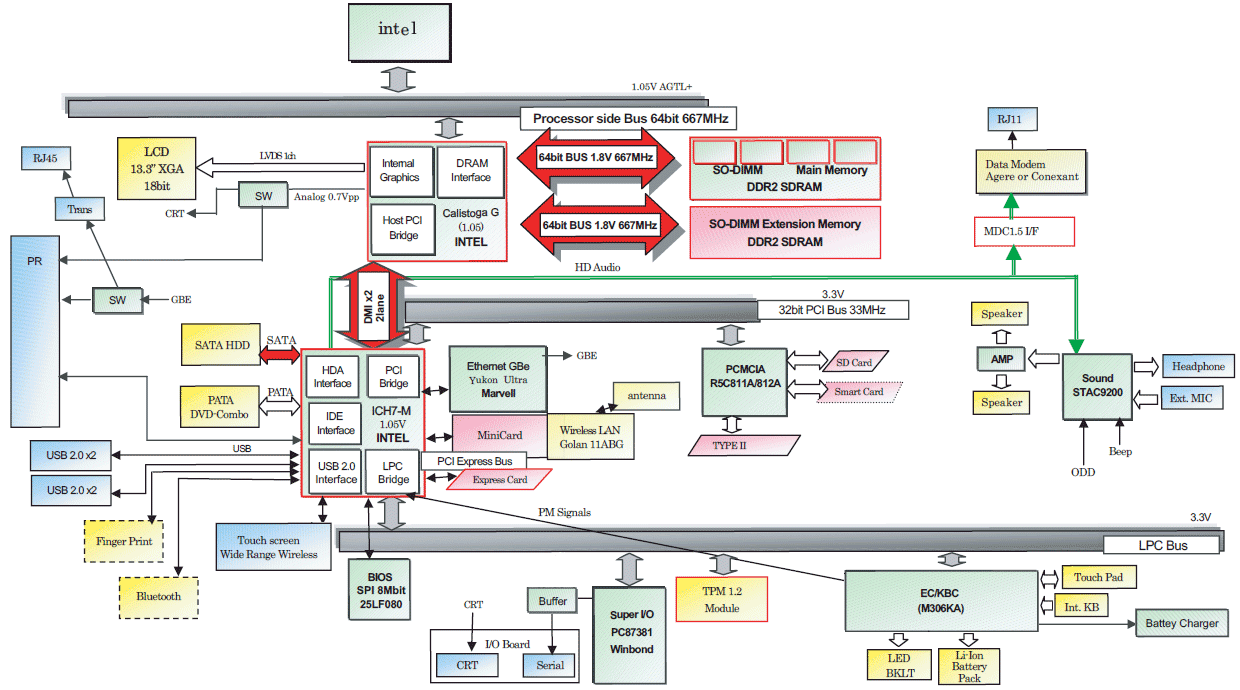

3. Block Diagram
4. Diagnosis Procedure
5. Power-On Self Test (Boot Check)
6. List of Error Codes <Only when the port replicator is connected>
7. Diagnostic Test
8. Self Diagnosis Test
9. Wiring Connection Diagram
10. Disassembly/Reassembly
11. Exploded View
12. Replacement Parts List

Updated: 29-10-2010
