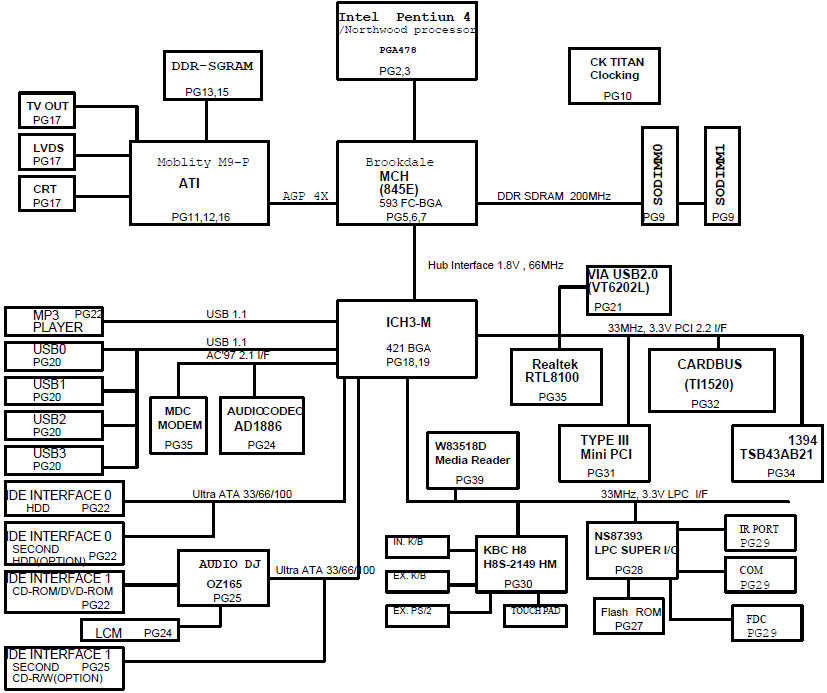

Clevo 800-series 888E, Laptop Motherboard Schematic diagram
Click on picture to enlarge |
Included : Service Manual Major components: CPU : Intel Pentium 4 Processor - (S478) Chipset :Intel 845 / ICH3 Video: ATI Mobility M9 (ATI Radeon 9000) KBC(Embeded Controller),SIO :H8S/2149 , NS87393 Known motherboard part numbers: 71-888E0-D02 File type : PDF Language : English |
---|
